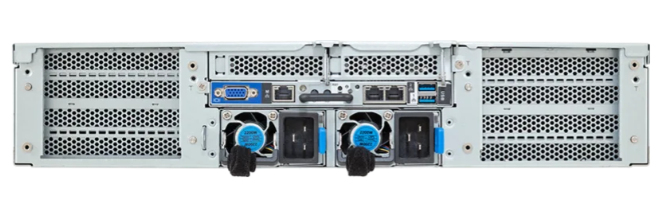

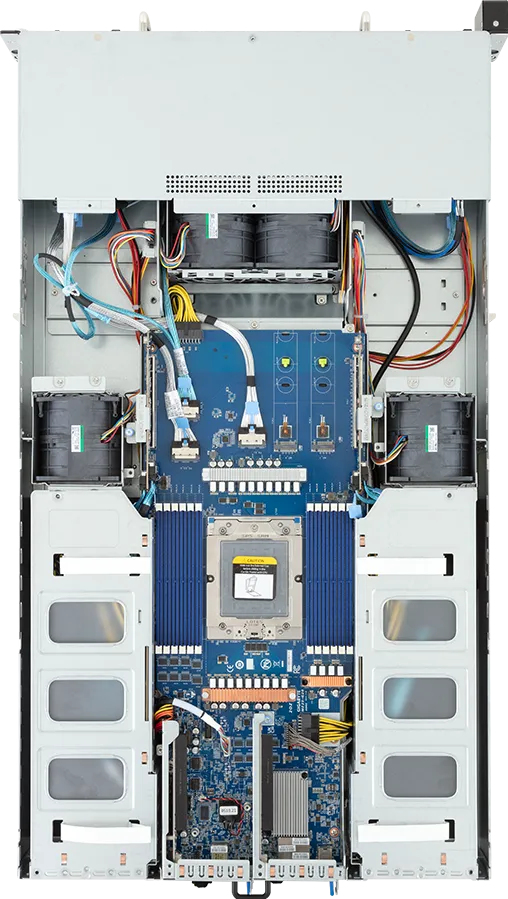

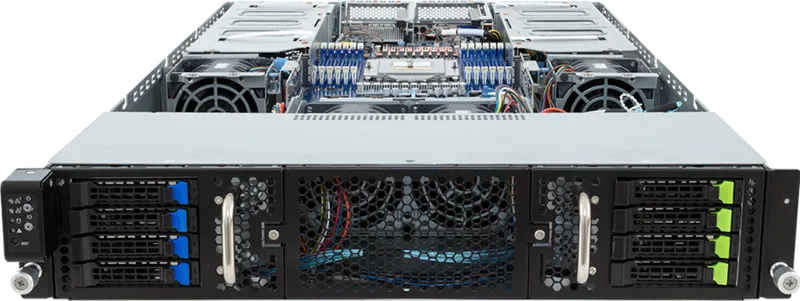

GIGABYTE G293-Z23-AAM1 AMD SoC Socket SP5 Rack (2U) Black, Steel
GIGABYTE

G293-Z23-AAM1 AMD SoC Socket SP5 Rack (2U) Black, Steel

Model G293-Z23-AAM1Part no. 6NG293Z23DR000AAM1EAN 4719331856113

58 specifications
  • Weight34.5 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots12
  • Number of storage drives supported10
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
34.5 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
12
Number of storage drives supported
10
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
G293-Z23-AAM1
Part number
6NG293Z23DR000AAM1
EAN / UPC
4719331856113
Also known as
GIGABYTE G293-Z23-AAM1 AMD SoC Socket SP5 Rack (2U) Black, Steel

Specifications

58 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP5
Number of processors supported1
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots12
Supported memory typesDDR5-SDRAM
Memory channelsDodeca-channel

Storage

Number of storage drives supported10
Hot-swap HDD baysYes
Number of 2.5" bays8
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS), PCI Express 5.0
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet, 10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000,10000 Mbit/s
LAN controllerBroadcom BCM57416

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

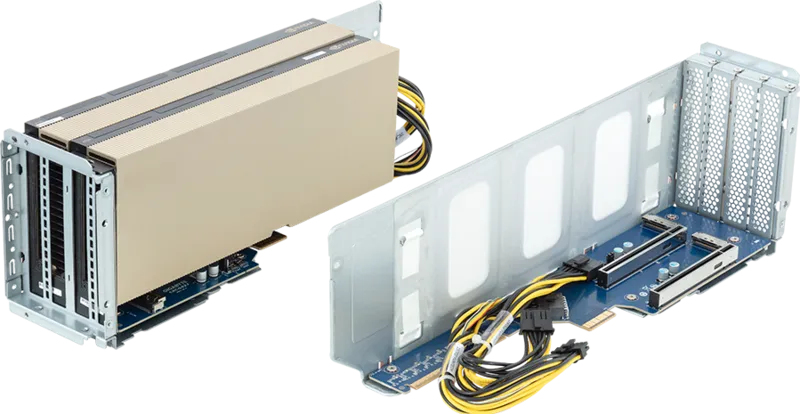

PCI Express x16 (Gen 5.x) slots6

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, SSD, System
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Heat sink includedYes
Number of fans4 fan(s)

Power

Power supply2200 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current15.5 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth800 mm
Height87.5 mm
Weight34.5 kg
Width448 mm

Packaging data

Packaging content1 x G293-Z23-AAM1; 1 x CPU heatsink; 4 x GPU power cables (16-pin, 250mm); 1 x L-shape Rail kit
Package width1138 mm
Package depth730 mm
Package height275 mm
Package weight35 kg
