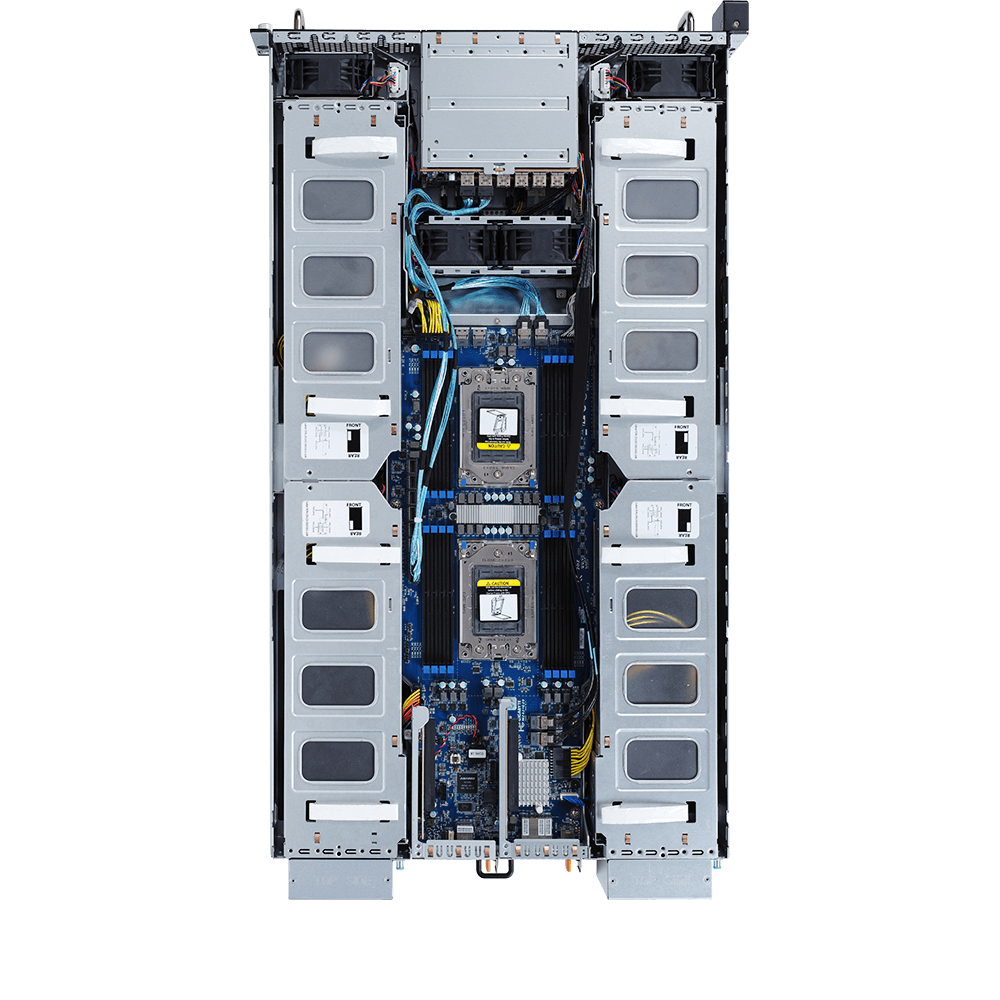

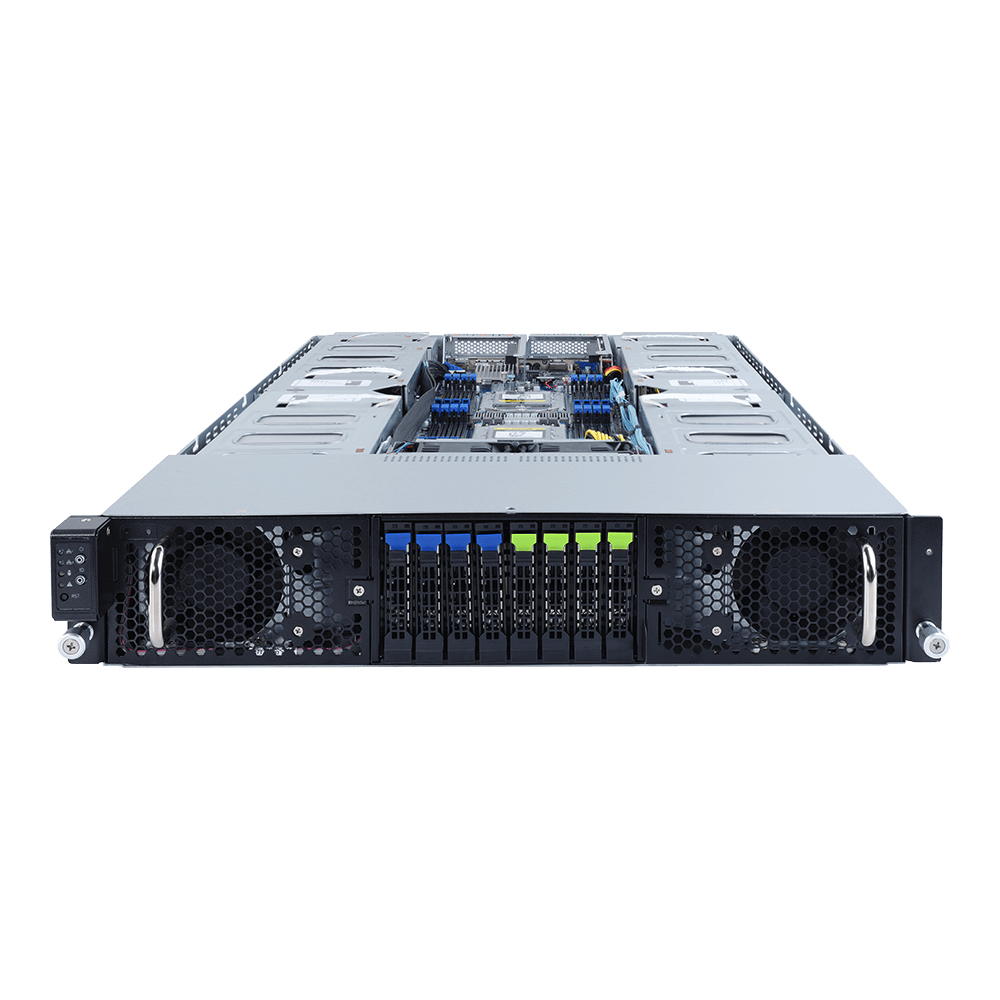

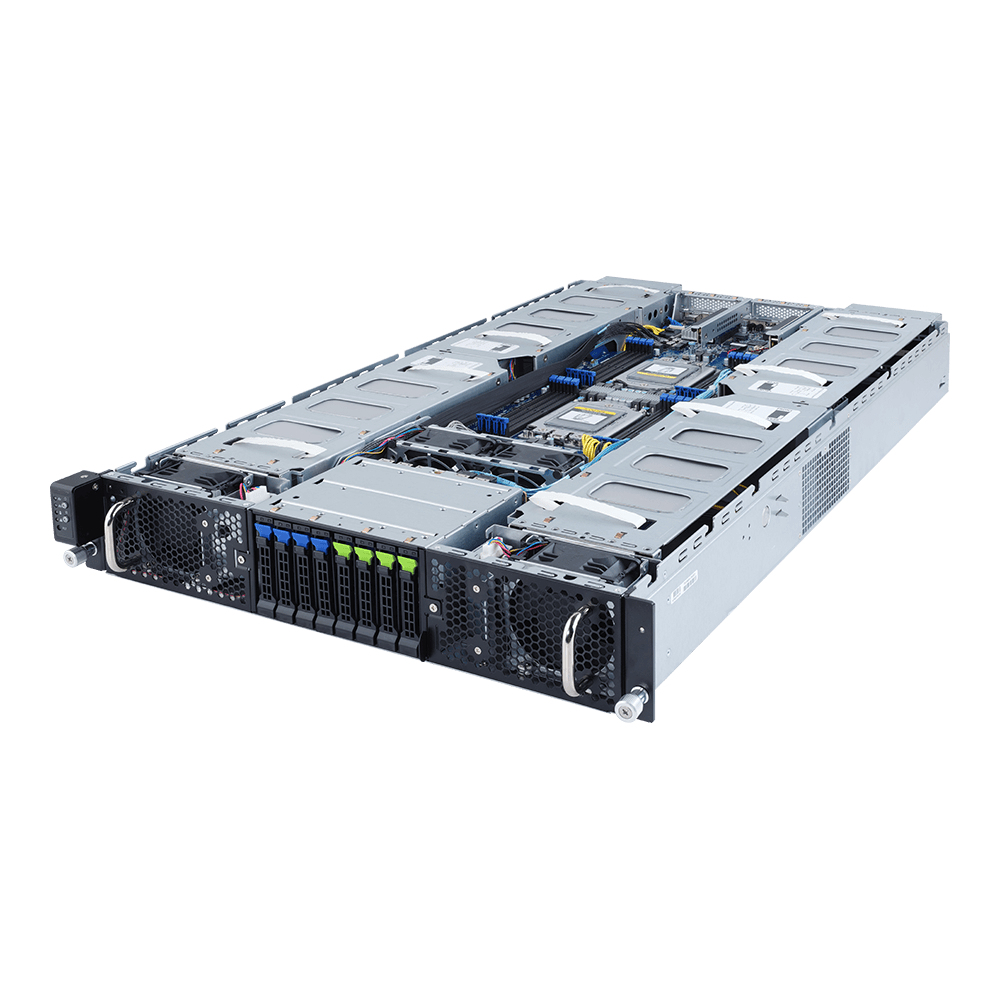

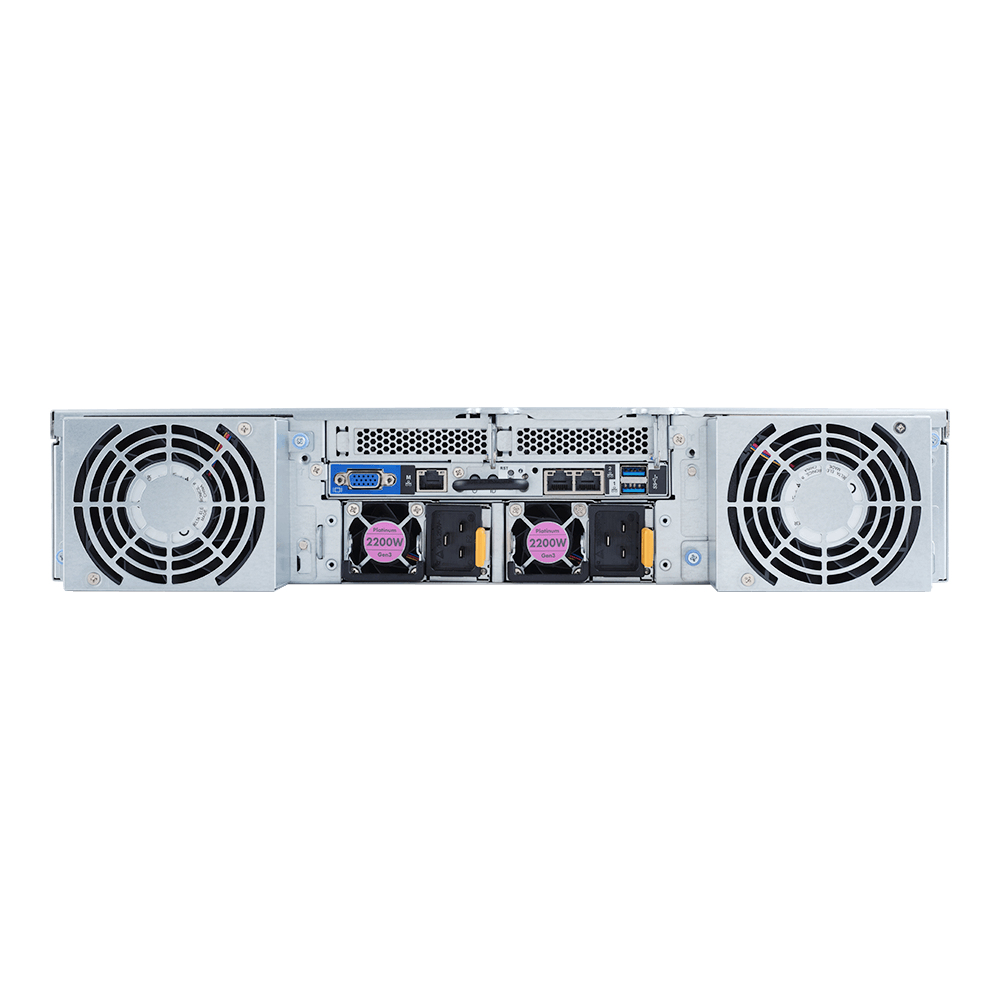

G292-Z46 Socket SP3 Rack (2U) Black
Model G292-Z46Part no. 6NG292Z46MR-00EAN 4719331601089
40 specifications
- ColourBlack
- Built-in processorNo
- Number of DIMM slots16
- Hot-swap HDD baysYes
- On-board graphics card modelAspeed AST2500
- USB 2.0 ports quantity0
Overview
- Colour
- Black
- Built-in processor
- No
- Number of DIMM slots
- 16
- Hot-swap HDD bays
- Yes
- On-board graphics card model
- Aspeed AST2500
- USB 2.0 ports quantity
- 0
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- G292-Z46
- Part number
- 6NG292Z46MR-00
- EAN / UPC
- 4719331601089
- Also known as
- GIGABYTE G292-Z46 Socket SP3 Rack (2U) Black
Specifications
40 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP3 |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 4 TB |
| Memory channels | Octa-channel |
Storage
| Specification | Value |
|---|---|
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 8 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| LAN controller | Intel® X550-AT2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 6 |
Features
| Specification | Value |
|---|---|
| Backplanes support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Fan diameter | 8 cm |
| Number of fans | 8 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 2200 W |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 800 mm |
| Height | 87.5 mm |
| Width | 448 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1133 mm |
| Package depth | 261 mm |
| Package height | 724 mm |
