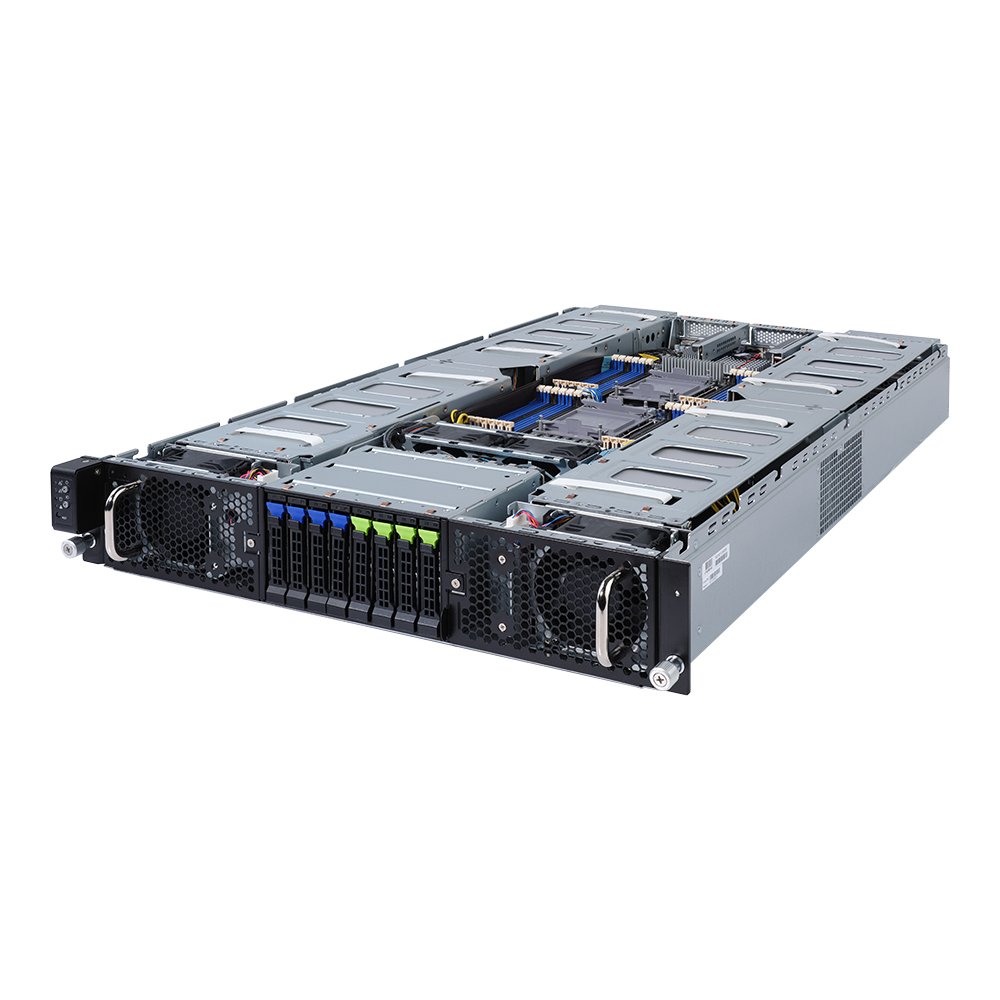

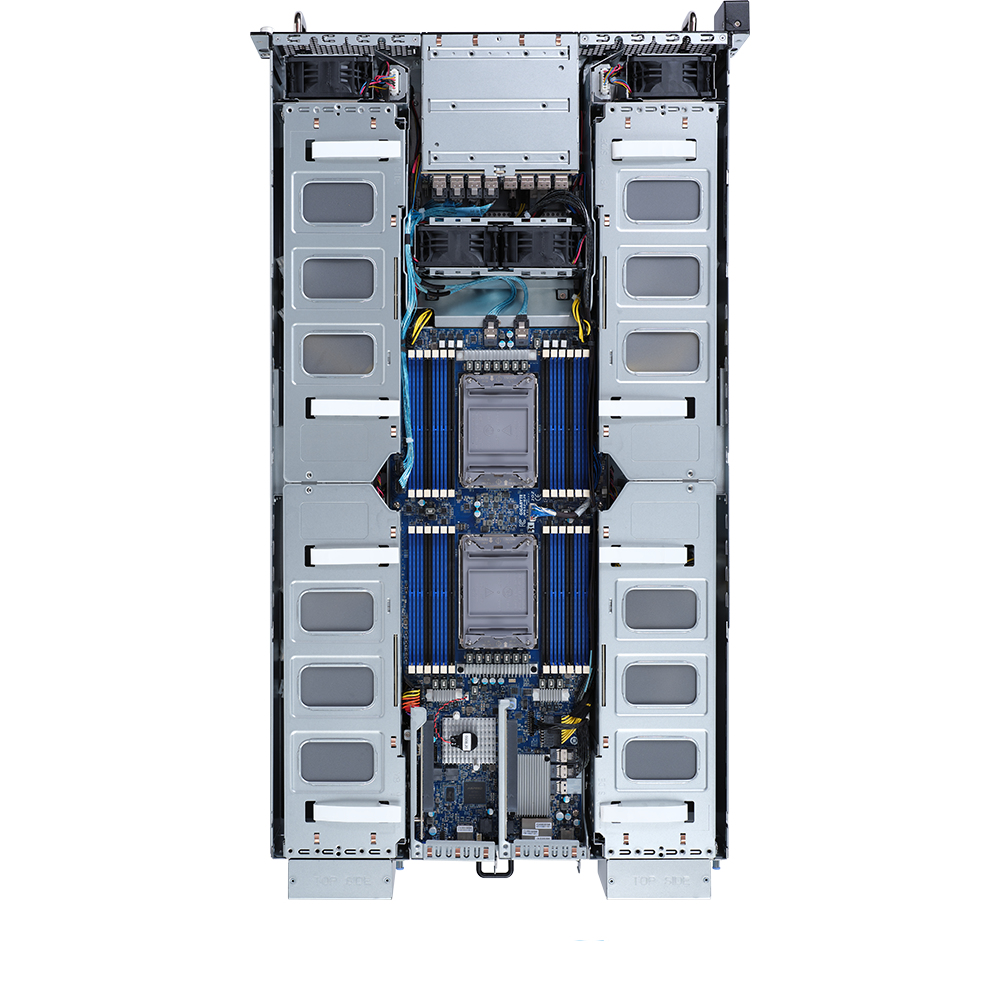

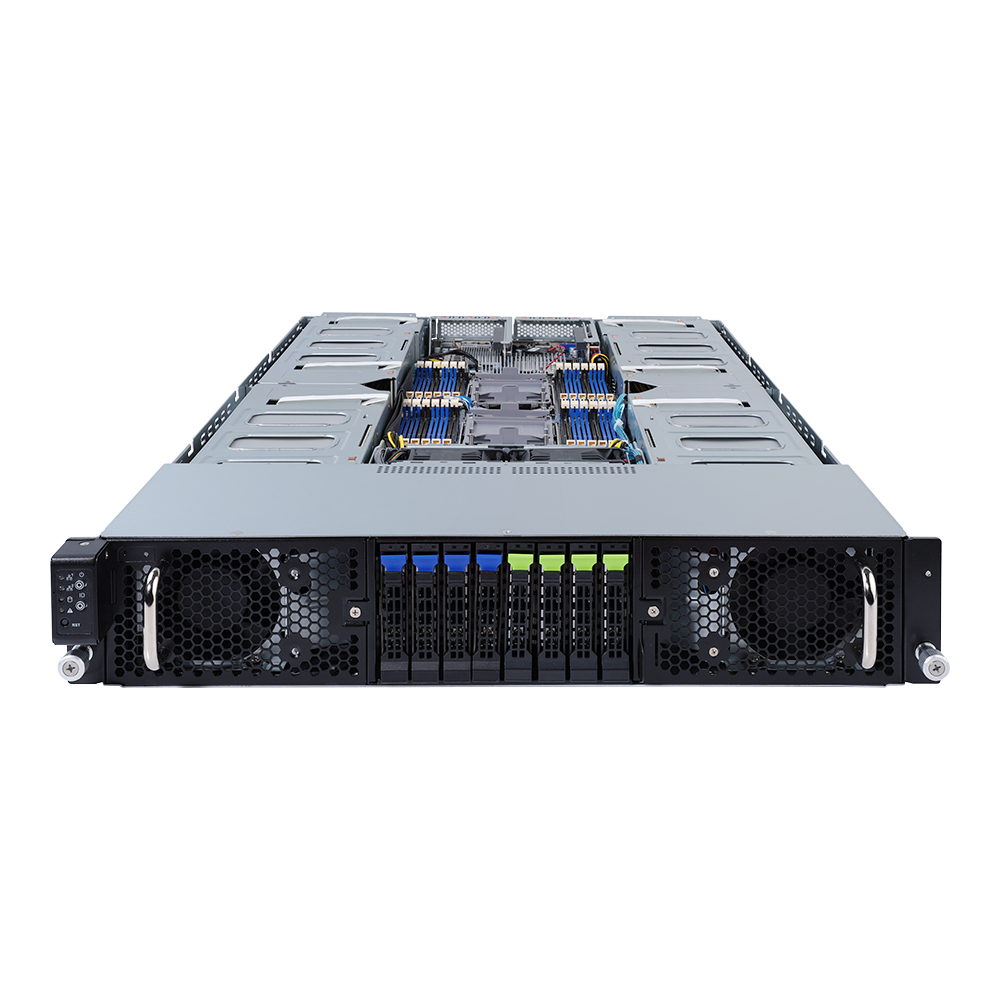

G292-2G0 Intel C621A LGA 4189 Rack (2U) Grey
Model G292-2G0Part no. 6NG2922G0MR-00EAN 4719331601041
43 specifications
- ColourGrey
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported8
- On-board graphics card modelAspeed AST2600
- Ethernet LANYes
Overview
- Colour
- Grey
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 8
- On-board graphics card model
- Aspeed AST2600
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- G292-2G0
- Part number
- 6NG2922G0MR-00
- EAN / UPC
- 4719331601041
- Also known as
- GIGABYTE G292-2G0 Intel C621A LGA 4189 Rack (2U) Grey
Specifications
43 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C621A |
| Processor socket | LGA 4189 |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 128GB |
| Memory channels | Octa-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 8 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 8 |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X710-AT2 |

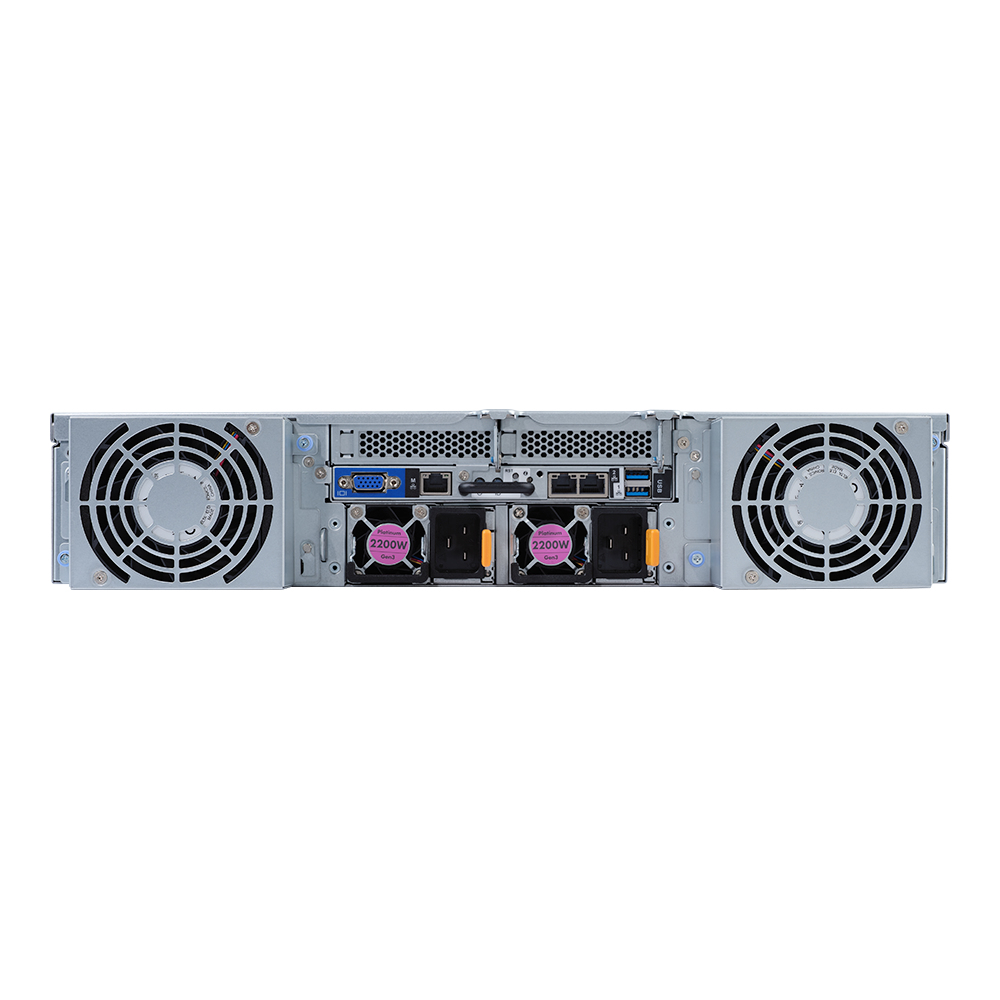

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |

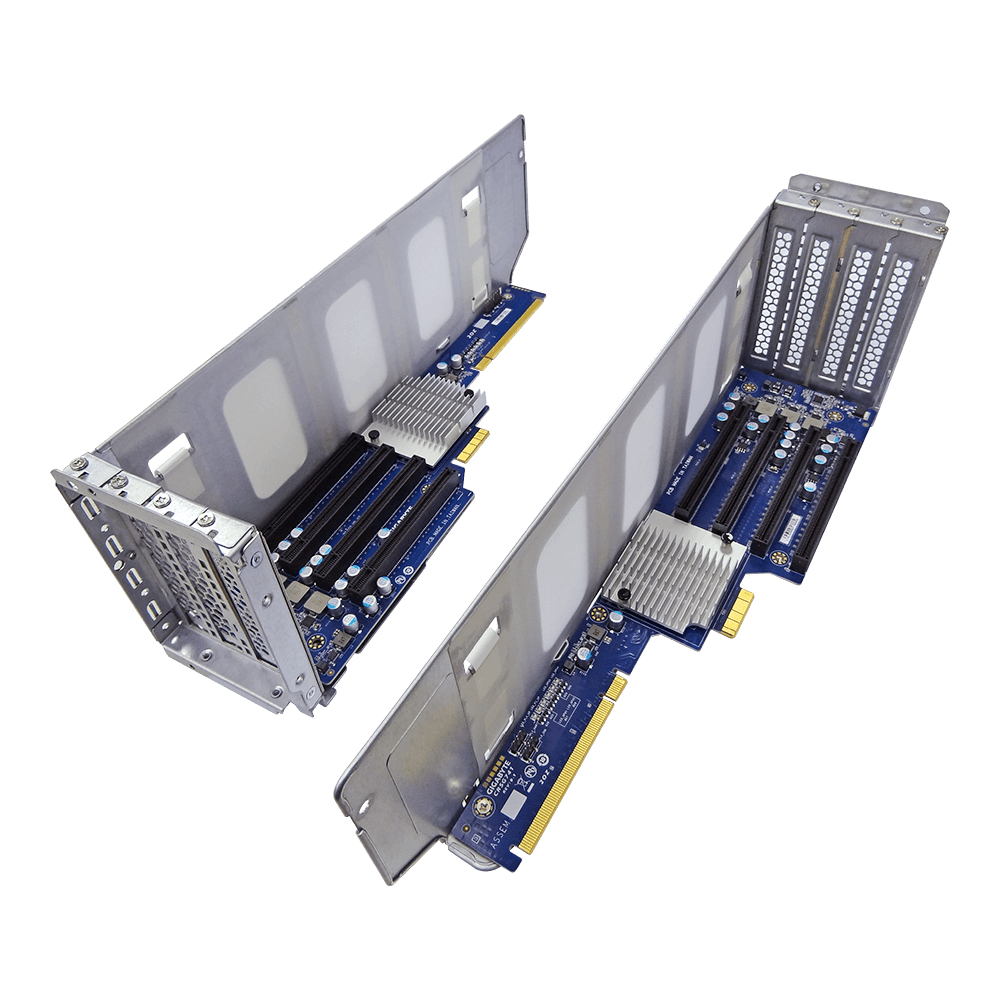

Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 18 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Grey |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Fan diameter | 8 cm |
| Number of fans | 8 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 3200 W |
| Number of main power supplies | 2 |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 800 mm |
| Height | 87.5 mm |
| Width | 448 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1133 mm |
| Package depth | 724 mm |
| Package height | 261 mm |
