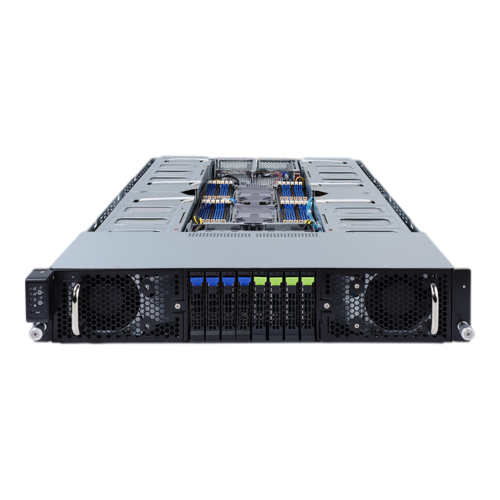

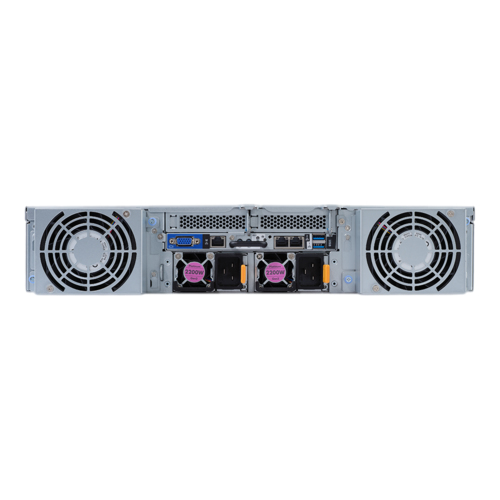

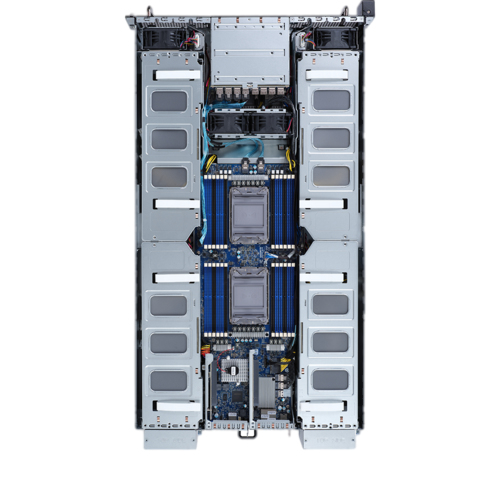

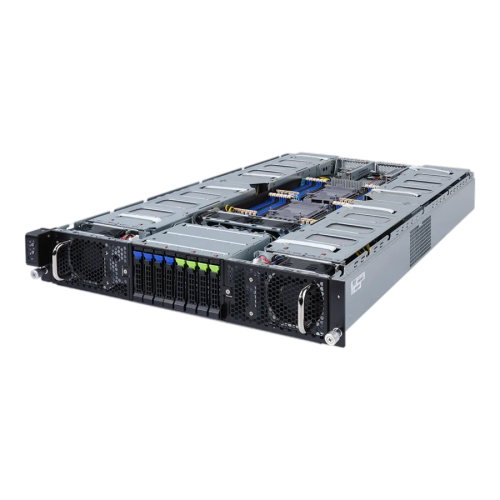

GIGABYTE G292-280 Intel® C621 LGA 4189 Rack (2U)
GIGABYTE

G292-280 Intel® C621 LGA 4189 Rack (2U)

Model G292-280Part no. 6NG292280MR-00EAN 4719331601034

50 specifications
  • ProcessorIntel® Xeon®
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported8
  • On-board graphics card modelAspeed AST2600
  • Ethernet LANYes
See all specifications

Overview

Processor
Intel® Xeon®
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
8
On-board graphics card model
Aspeed AST2600
Ethernet LAN
Yes
Brand
GIGABYTE
Model
G292-280
Part number
6NG292280MR-00
EAN / UPC
4719331601034
Also known as
GIGABYTE G292-280 Intel® C621 LGA 4189 Rack (2U)

Specifications

50 specifications in 14 groups

Processor

Built-in processorNo
Motherboard chipsetIntel® C621
Processor socketLGA 4189
Processor manufacturerIntel
Processor familyIntel® Xeon®
Number of processors supported2

Memory

Number of DIMM slots24
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities8GB, 16GB, 32GB, 64GB, 128GB
Supported RDIMM clock speeds2666,2933,3200 MHz
Supported UDIMM clock speeds2666,3200 MHz
Memory voltage1.2 V
Memory channelsOcta-channel

Storage

Number of storage drives supported8
Hot-swap HDD baysYes
Number of 2.5" bays8
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel X710-AT2

Ports & interfaces

Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
Serial ports quantity1
Number of SATA III connectors8

Expansion slots

PCI Express slots version4.0
PCI Express x16 (Gen 1.x) slots10

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Backplanes supportYes
Compatible operating systemsWindows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 8.2 ( x64) or later Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 20.04 LTS (x64) or later Ubuntu 20.04.1 LTS (x64) or later

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
LED indicatorsHDD, LAN, Power, System
On/off switchYes
Reset buttonYes
Fan diameter8 cm
Number of fans8 fan(s)

Power

Power supply3200 W
AC input voltage240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth730 mm
Height87.5 mm
Width437 mm

Packaging data

Packaging content1 x G292-280 2 x CPU heatsinks 1 x Rail kit
