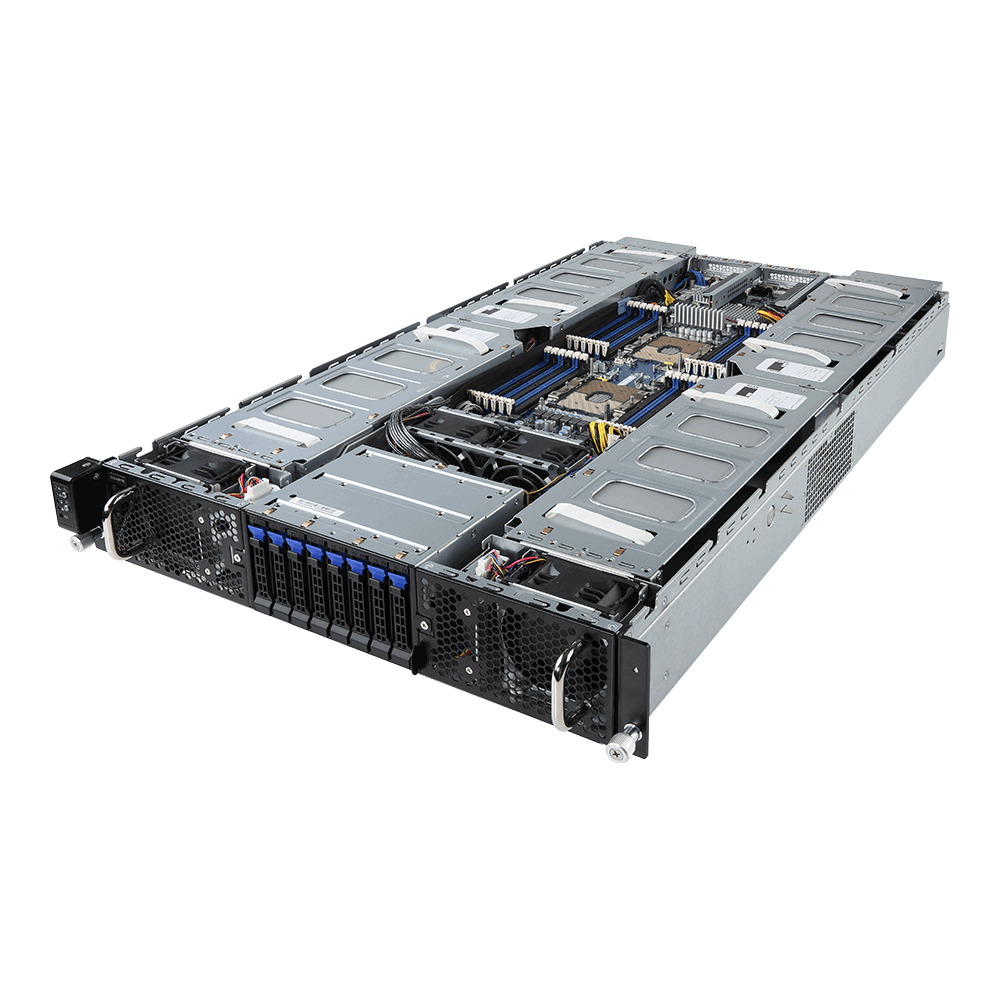

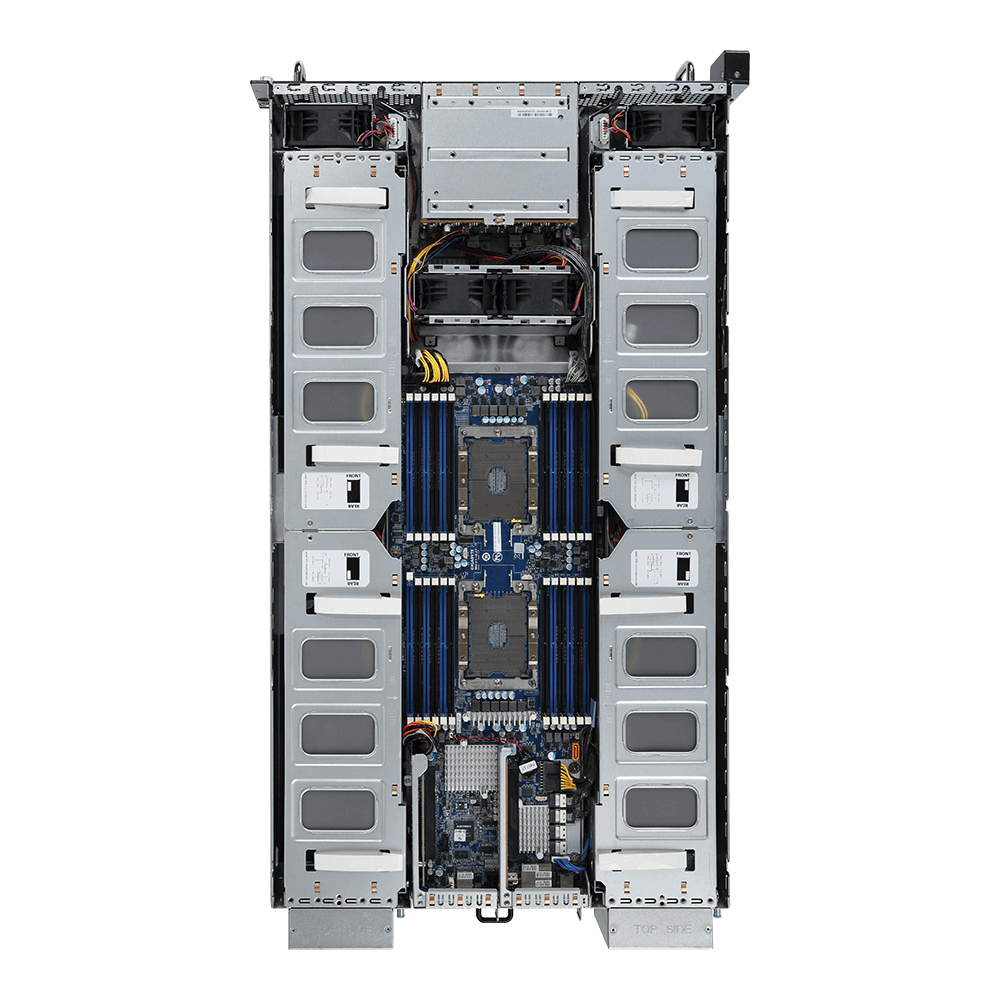

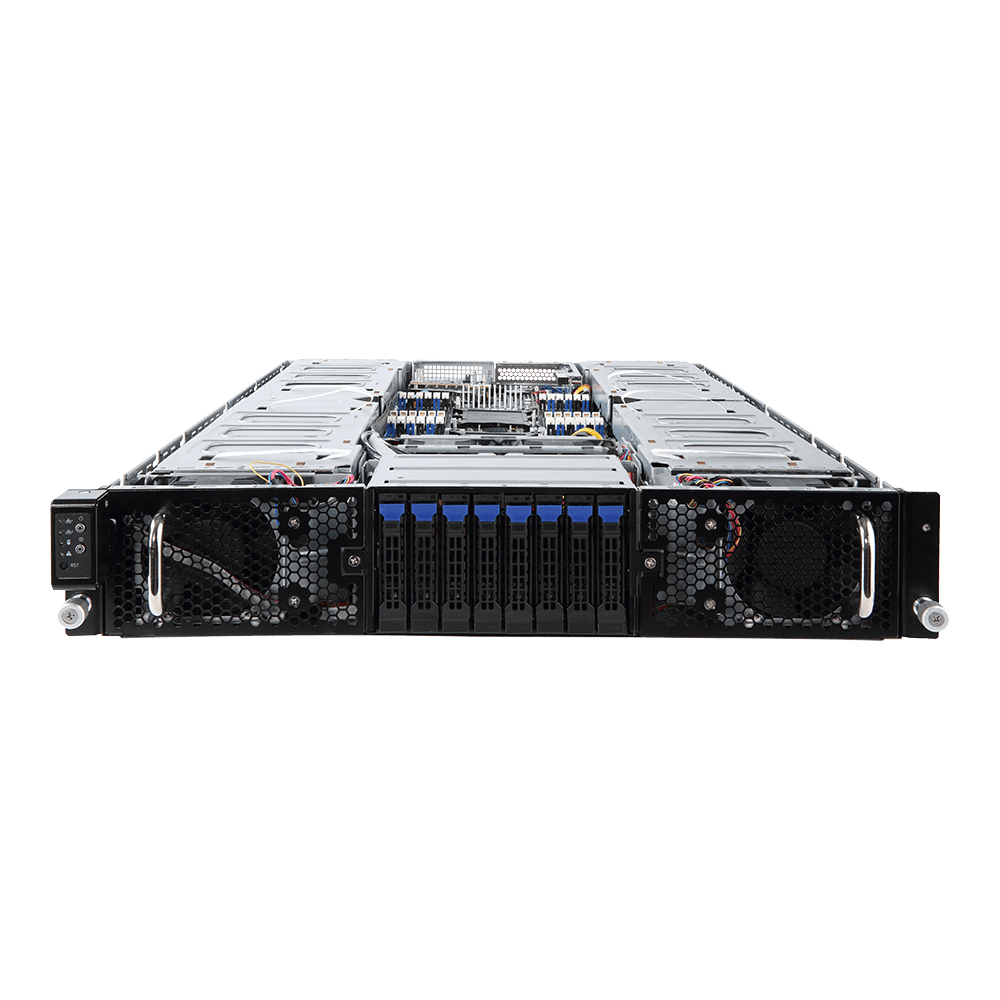

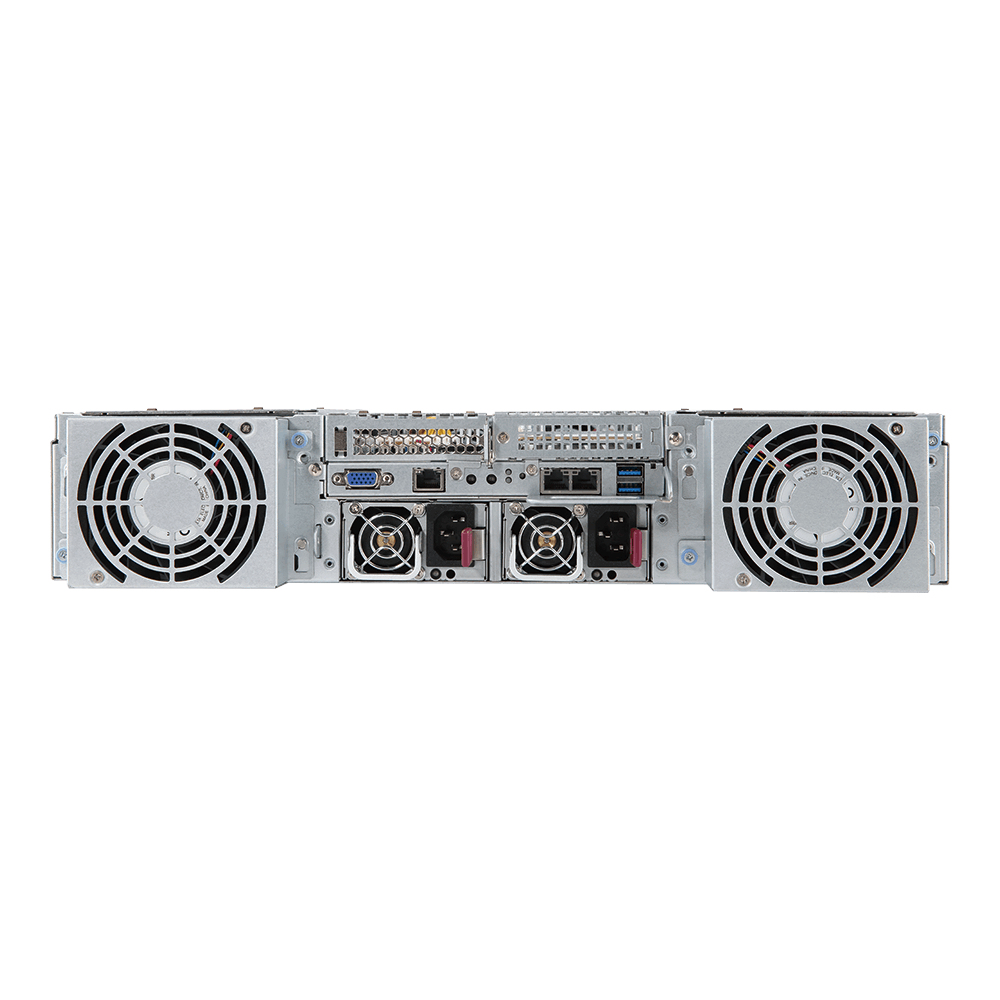

G291-281 server barebone Intel® C621 LGA 3647 (Socket P) Rack (2U) Black
Model G291-281
61 specifications
- ProcessorIntel® Xeon®
- Weight30 kg
- ColourBlack
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported8
Overview
- Processor
- Intel® Xeon®
- Weight
- 30 kg
- Colour
- Black
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 8
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- G291-281
- Part number
- G291-281
- Also known as
- GIGABYTE G291-281 server barebone Intel® C621 LGA 3647 (Socket P) Rack (2U) Black
Specifications
61 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel® C621 |
| Processor socket | LGA 3647 (Socket P) |
| Processor family | Intel® Xeon® |
| Number of processors supported | 2 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 128 GB |
| Maximum RDIMM memory | 64 GB |
| Memory voltage | 1.2 V |
| Memory channels | Hexa-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 8 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 8 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T |
| LAN controller | Intel® X540-AT2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Number of SATA III connectors | 8 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 10 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Processor special features
| Specification | Value |
|---|---|
| Intel® Optane™ Memory Ready | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Rack rails | Yes |
| Fan diameter | 8 cm |
| Number of fans | 8 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 2000 W |
| Number of main power supplies | 2 |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies installed | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 9.5 - 12 A |
| DC output current (+12 V) | 166.7 A |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 800 mm |
| Height | 87.5 mm |
| Weight | 30 kg |
| Width | 448 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 36 kg |
