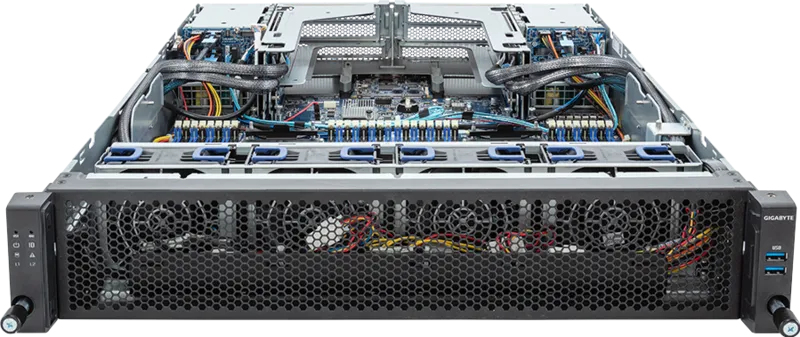

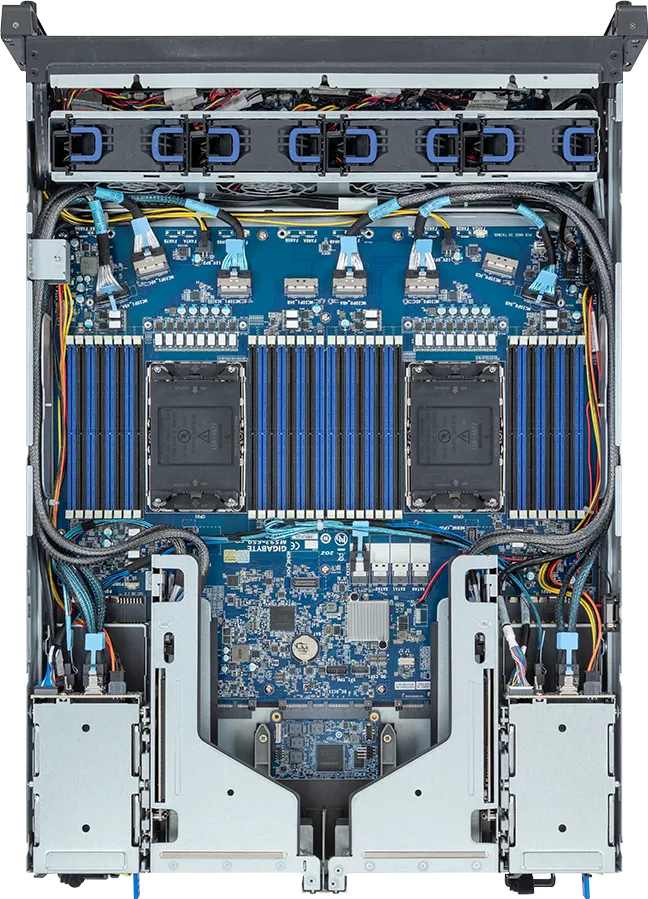

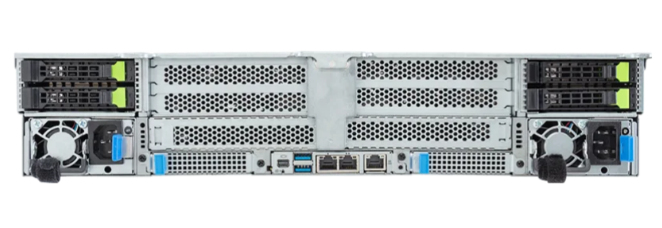

GIGABYTE E283-S90-AAV1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel
GIGABYTE

E283-S90-AAV1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel

Model E283-S90-AAV1Part no. 6NE283S90DR000AAV1EAN 4719331855345

57 specifications
  • Weight21.5 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported4
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
21.5 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
4
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
E283-S90-AAV1
Part number
6NE283S90DR000AAV1
EAN / UPC
4719331855345
Also known as
GIGABYTE E283-S90-AAV1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel

Specifications

57 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor socketLGA 4677 (Socket E)
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots32
Supported memory typesDDR5-SDRAM
Memory channelsOcta-channel

Storage

Number of storage drives supported4
Hot-swap HDD baysYes
Number of 2.5" bays4
Storage drive sizes supported2.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 3.0, Serial Attached SCSI (SAS)
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1

Expansion slots

PCI Express x16 (Gen 5.x) slots6

Features

Trusted Platform Module (TPM)Yes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, SSD, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Heat sink includedYes
Number of fans4 fan(s)

Power

Power supply1600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current10 - 12 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth625 mm
Height87.5 mm
Weight21.5 kg
Width438 mm

Packaging data

Packaging content1 x E283-S90-AAV1; 2 x CPU heatsinks; 1 x Mini-DP to D-Sub cable; 6 x Carriers
Package width987 mm
Package depth594 mm
Package height282 mm
Package weight23.7 kg
