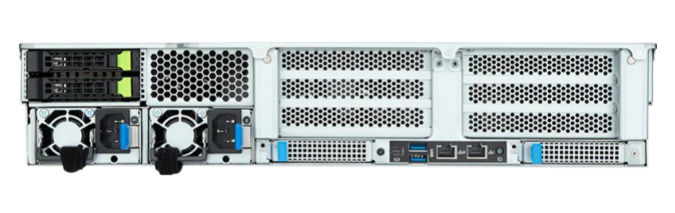

GIGABYTE E263-Z30-AAD1 AMD SoC Socket SP5 Rack (2U) Black, Steel
GIGABYTE

E263-Z30-AAD1 AMD SoC Socket SP5 Rack (2U) Black, Steel

Model E263-Z30-AAD1Part no. 6NE263Z30DR000AAD1EAN 4719331855192

59 specifications
  • Weight16 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots12
  • Number of storage drives supported3
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
16 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
12
Number of storage drives supported
3
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
E263-Z30-AAD1
Part number
6NE263Z30DR000AAD1
EAN / UPC
4719331855192
Also known as
GIGABYTE E263-Z30-AAD1 AMD SoC Socket SP5 Rack (2U) Black, Steel

Specifications

59 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP5
Number of processors supported1
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots12
Supported memory typesDDR5-SDRAM
Memory channelsDodeca-channel

Storage

Number of storage drives supported3
Hot-swap HDD baysYes
Number of 2.5" bays2
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 3.0, Serial Attached SCSI (SAS)
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I210-AT

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1

Expansion slots

PCI Express x16 (Gen 5.x) slots2
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, SSD, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Heat sink includedYes
Number of fans4 fan(s)

Power

Power supply1600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current10 - 12 A
DC output current (+12 V)133 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth520 mm
Height87.5 mm
Weight16 kg
Width438 mm

Packaging data

Packaging content1 x E263-Z30-AAD1; 1 x CPU heatsink; 1 x Mini-DP to D-Sub cable; 1 x GPU power cable (2x PCIe 8pin, 350mm); 1 x GPU power cable (2x PCIe 8pin, 480mm)
Package width732 mm
Package depth588 mm
Package height285 mm
Package weight19 kg
