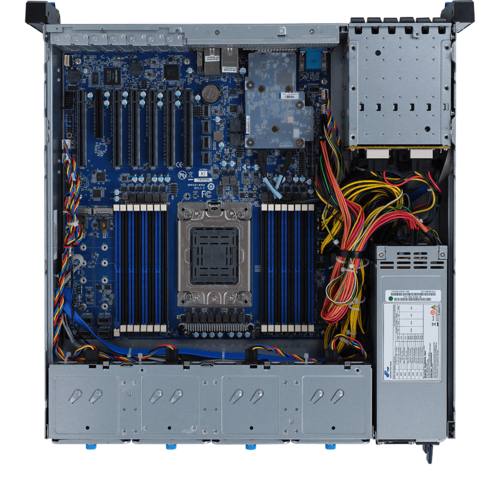

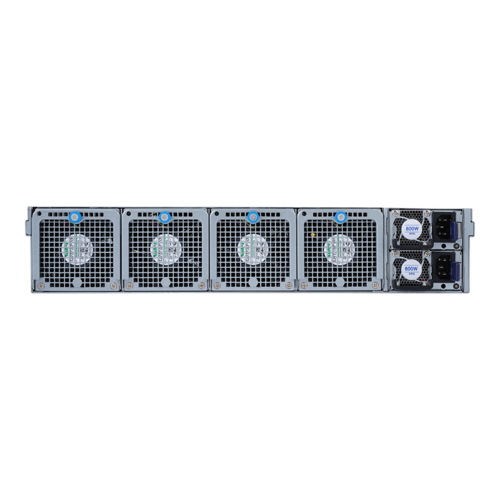

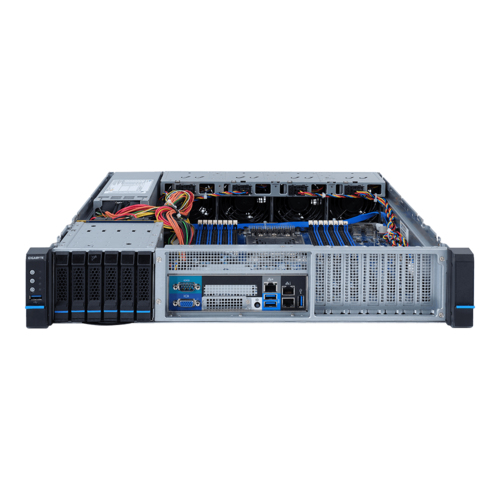

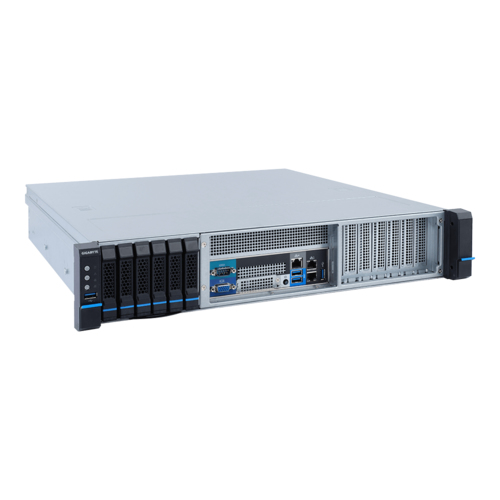

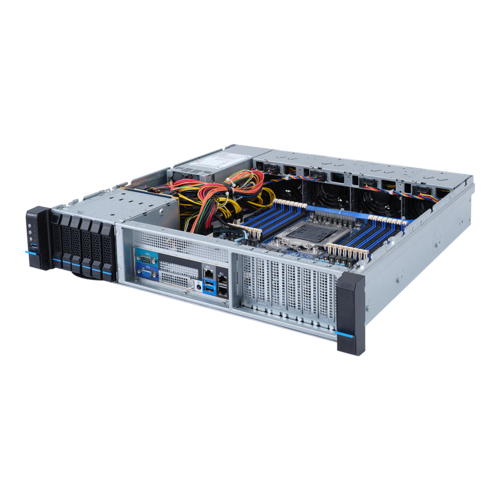

E252-P30 Rack (2U)
Model E252-P30Part no. E252-P30-Q80-28EAN 4719331600761
45 specifications
- Built-in processorNo
- Number of DIMM slots16
- Number of storage drives supported6
- On-board graphics card modelAspeed AST2500
- Ethernet LANYes
- USB 2.0 ports quantity1
Overview
- Built-in processor
- No
- Number of DIMM slots
- 16
- Number of storage drives supported
- 6
- On-board graphics card model
- Aspeed AST2500
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 1
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- E252-P30
- Part numbers
- E252-P30-Q80-28, 6NE252P30MR-00
- EAN / UPC
- 4719331600761
- Also known as
- GIGABYTE E252-P30 Rack (2U)
Specifications
45 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Number of processors supported | 1 |
| Maximum internal memory supported by processor | 4 TB |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Maximum RDIMM memory | 256 GB |
| Supported RDIMM clock speeds | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 6 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 6 |
| RAID levels | 0, 1, 1E, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 5 |
| Number of M.2 (M) slots | 2 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Backplanes support | Yes |
| Compatible operating systems | Red Hat Enterprise Linux 8.3 ( ARM64) CentOS 8.3-2011 (ARM64) SUSE Linux Enterprise Server 15 SP2 ( ARM64) Ubuntu 18.04.5-server (ARM64) Ubuntu 20.04.1-legacy-server (ARM64) Fedora Server 33-1.2 (ARM64) FreeBSD 13.0 current (ARM64) OracleLinux R8 U2 (ARM64) Debian 10.9 (Buster) (ARM64) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| LED indicators | HDD, LAN, Status |
| On/off switch | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 800 W |
| Number of main power supplies | 1 |
| Redundant power supply (RPS) support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 86 mm |
| Height | 449 mm |
| Width | 439 mm |
Packaging data
| Specification | Value |
|---|---|
| Packaging content | 1 x E252-P30 1 x CPU heatsinks 1 x Rail kit (in option) |
| Package width | 867 mm |
| Package depth | 588 mm |
| Package height | 276 mm |
