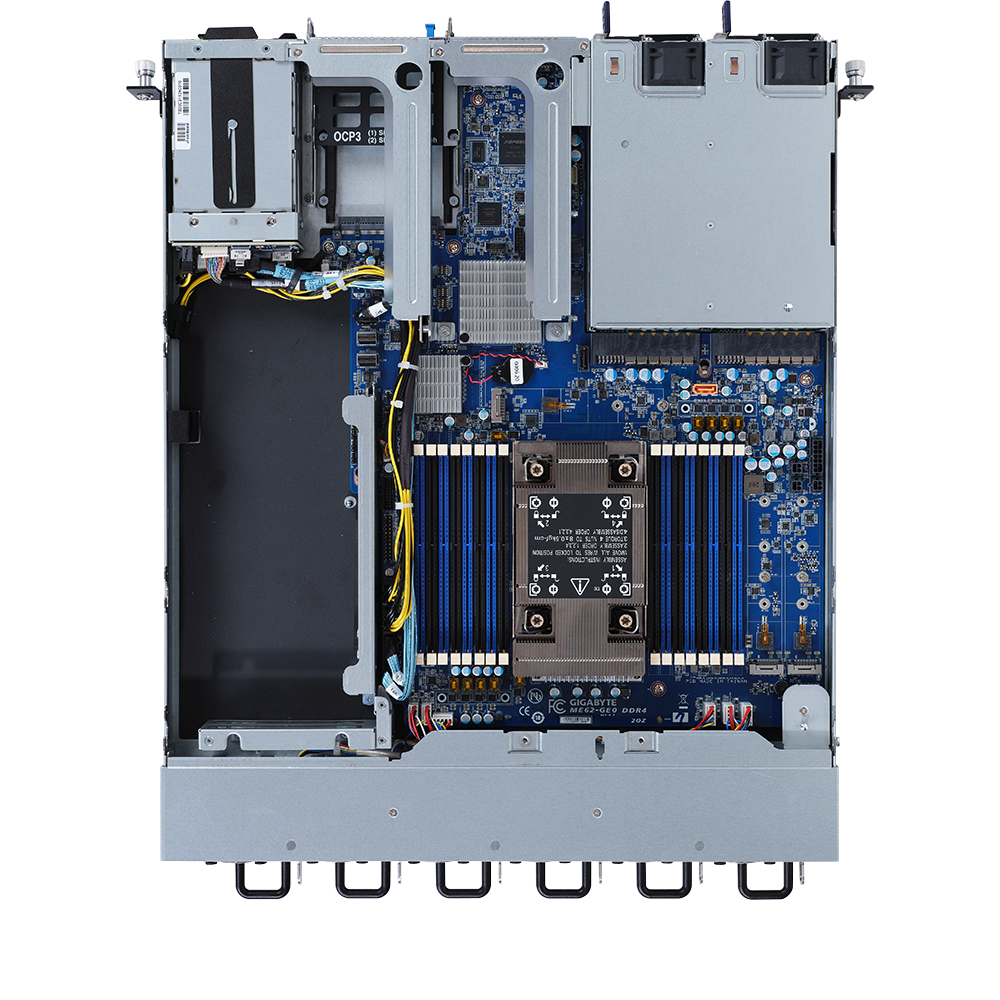

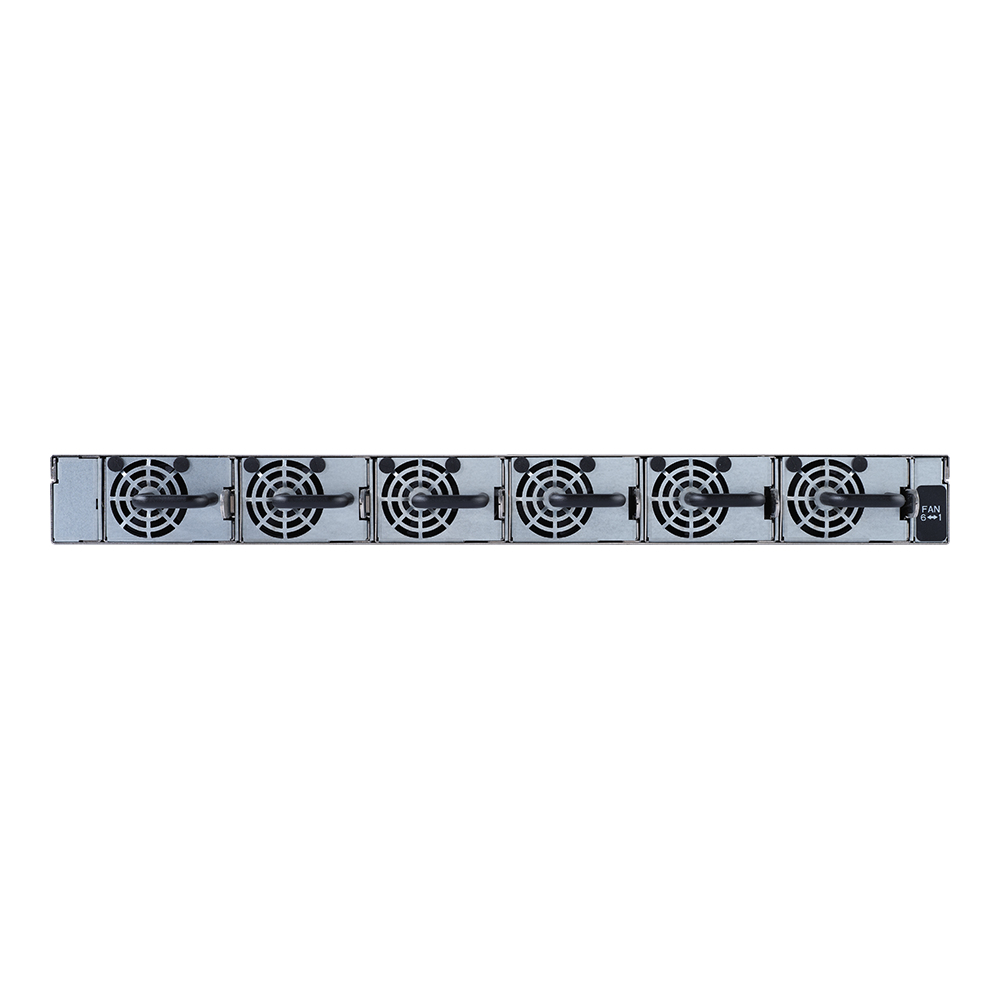

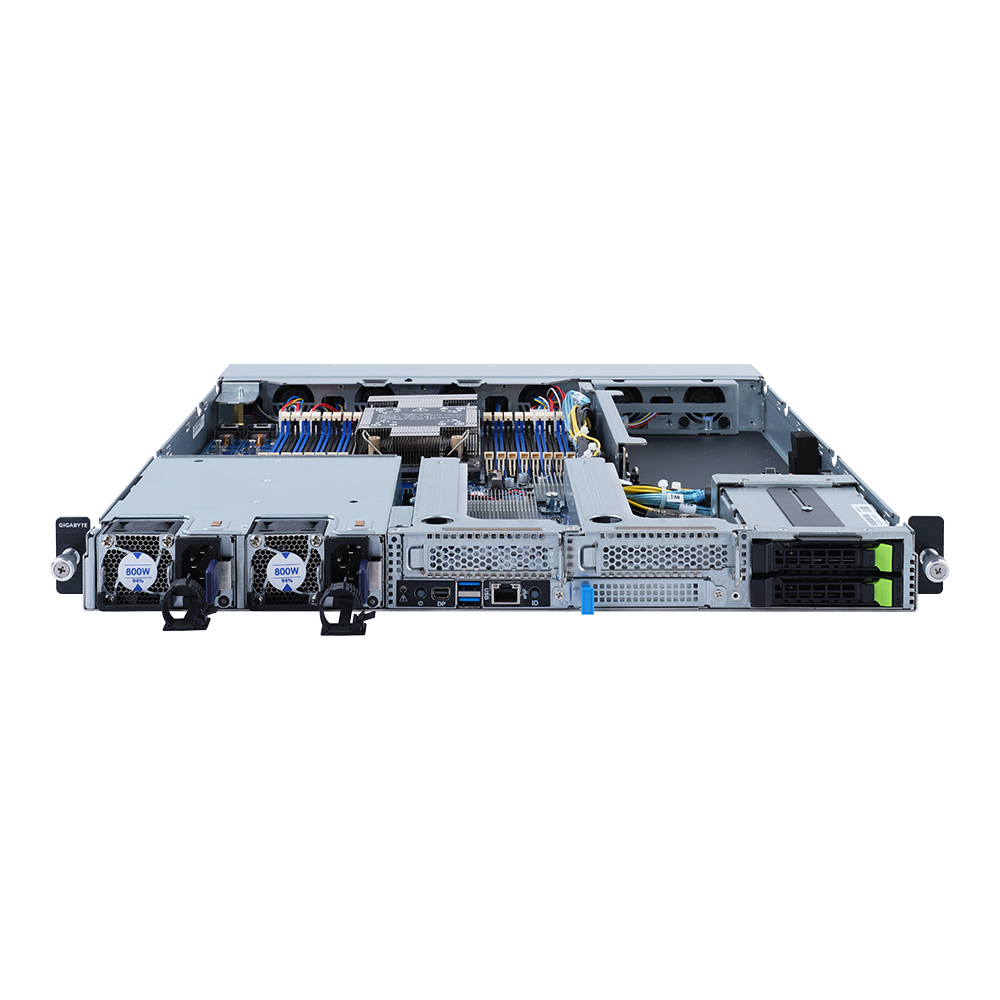

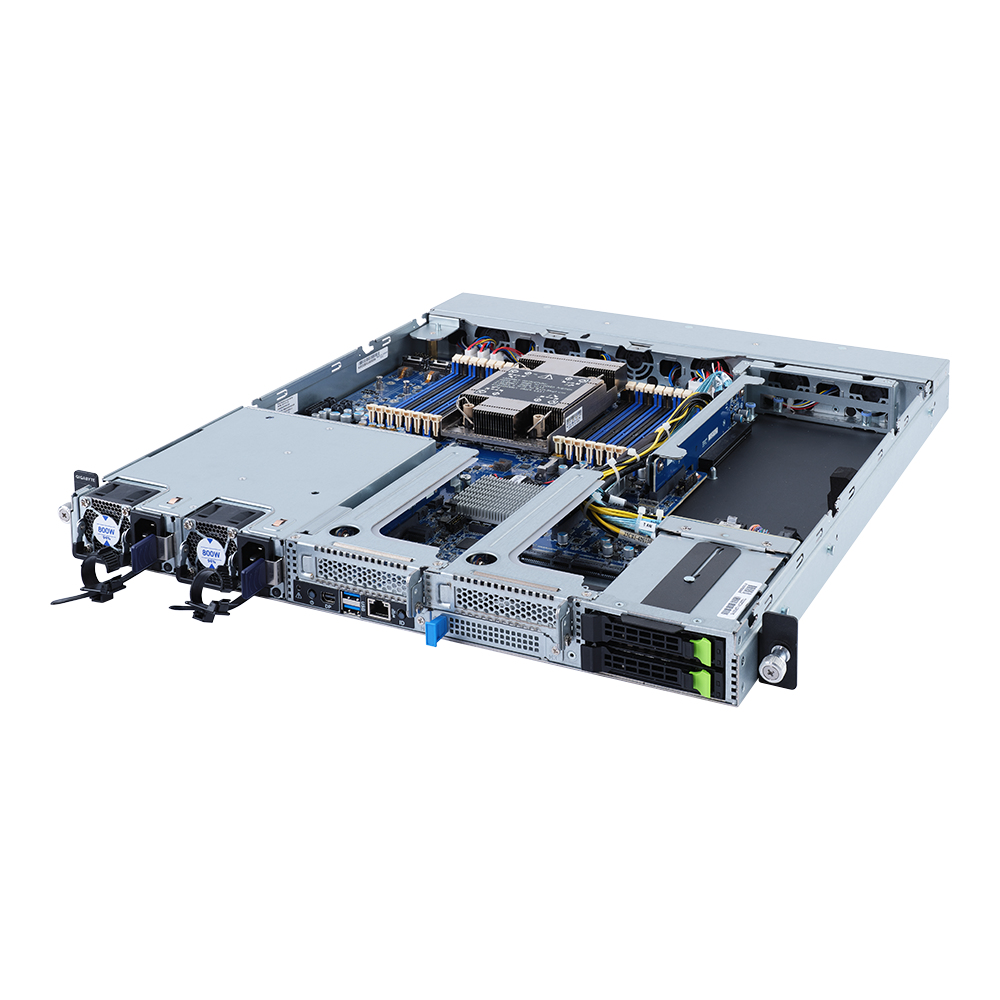

GIGABYTE E162-220 Intel C621A LGA 4189 Rack (1U) Black
GIGABYTE

E162-220 Intel C621A LGA 4189 Rack (1U) Black

Model E162-220Part no. 6NE162220MR-00EAN 4719331600839

46 specifications
  • ColourBlack
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported2
  • On-board graphics card modelAspeed AST2600
  • Ethernet LANYes
See all specifications

Overview

Colour
Black
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
2
On-board graphics card model
Aspeed AST2600
Ethernet LAN
Yes
Brand
GIGABYTE
Model
E162-220
Part number
6NE162220MR-00
EAN / UPC
4719331600839
Also known as
GIGABYTE E162-220 Intel C621A LGA 4189 Rack (1U) Black

Specifications

46 specifications in 14 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C621A
Processor socketLGA 4189
Number of processors supported1

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported RDIMM clock speeds2666,2933,3200 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported2
Hot-swap HDD baysYes
Number of 2.5" bays2
Storage drive sizes supported2.5"
RAID levels0, 1

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x16 slots3
Number of M.2 (M) slots3

Features

Backplanes supportYes

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
Product colourBlack
LED indicatorsYes
On/off switchYes
Reset buttonYes
Fan diameter4 cm
Number of fans6 fan(s)

Power

Power supply800 W
Number of redundant power supplies installed2
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth500 mm
Height43.5 mm
Width438 mm

Packaging data

Package width786 mm
Package depth588 mm
Package height250 mm
