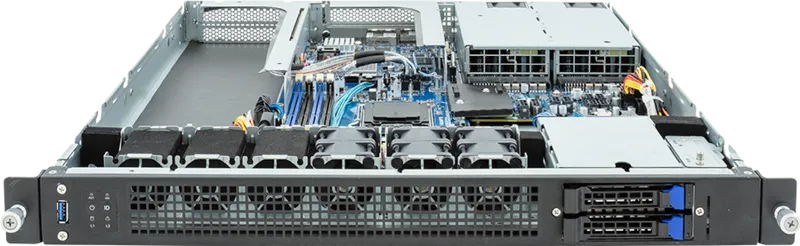

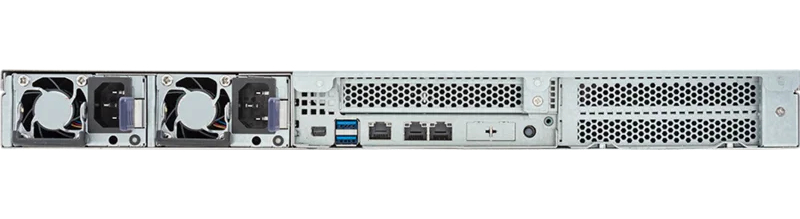

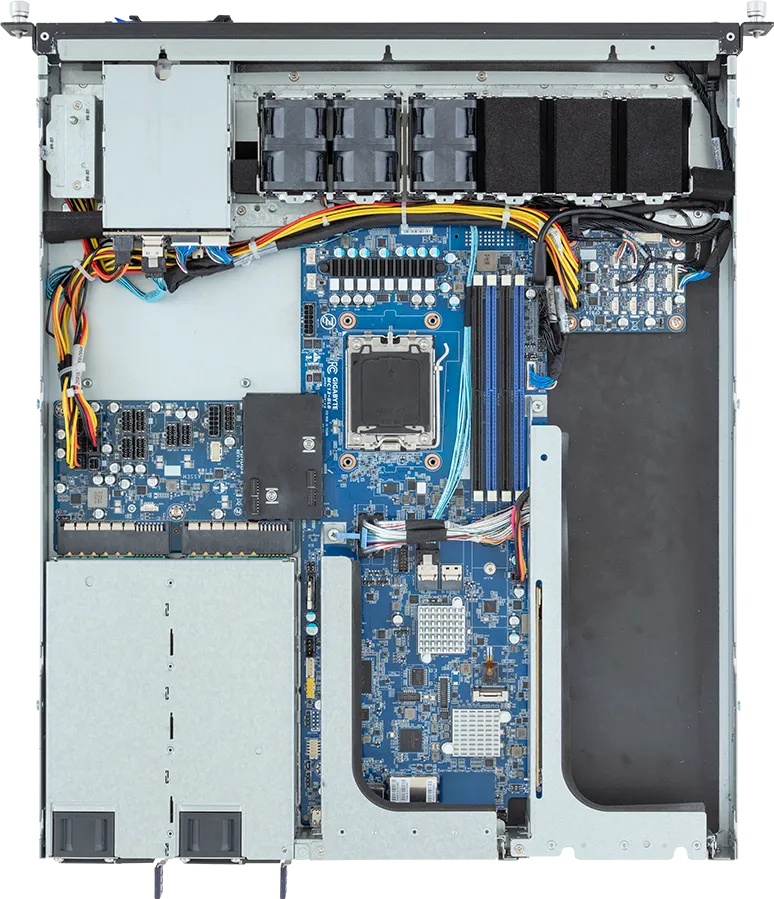

GIGABYTE E133-C10-AAA1 AMD B650E Socket AM5 Rack (1U) Black, Steel
GIGABYTE

E133-C10-AAA1 AMD B650E Socket AM5 Rack (1U) Black, Steel

Model E133-C10-AAA1Part no. 6NE133C10MR000AAA1EAN 4719331854904

61 specifications
  • Weight12.4 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots4
  • Number of storage drives supported3
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
12.4 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
4
Number of storage drives supported
3
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
E133-C10-AAA1
Part number
6NE133C10MR000AAA1
EAN / UPC
4719331854904
Also known as
GIGABYTE E133-C10-AAA1 AMD B650E Socket AM5 Rack (1U) Black, Steel

Specifications

61 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetAMD B650E
Processor socketSocket AM5
Number of processors supported1
Compatible processor seriesAMD Ryzen 7000 Series

Memory

Number of DIMM slots4
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
ECCYes
Non-ECCYes

Storage

Number of storage drives supported3
Hot-swap HDD baysYes
Number of 2.5" bays2
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 4.0
RAID levels0, 1
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerBroadcom BCM5720

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1

Expansion slots

PCI Express x4 slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots1

Design

Chassis typeRack (1U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, SSD, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter4 cm
Heat sink includedYes
Number of fans3 fan(s)

Power

Power supply550 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current4 - 8 A
DC output current (+12 V)44 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 30 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth520 mm
Height43.5 mm
Weight12.4 kg
Width438 mm

Packaging data

Packaging content1 x E133-C10-AAA1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable
Package width787 mm
Package depth594 mm
Package height226 mm
