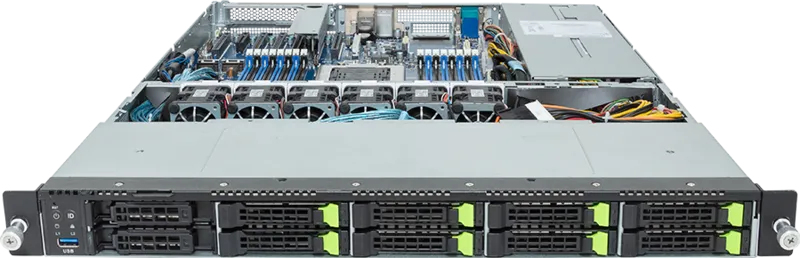

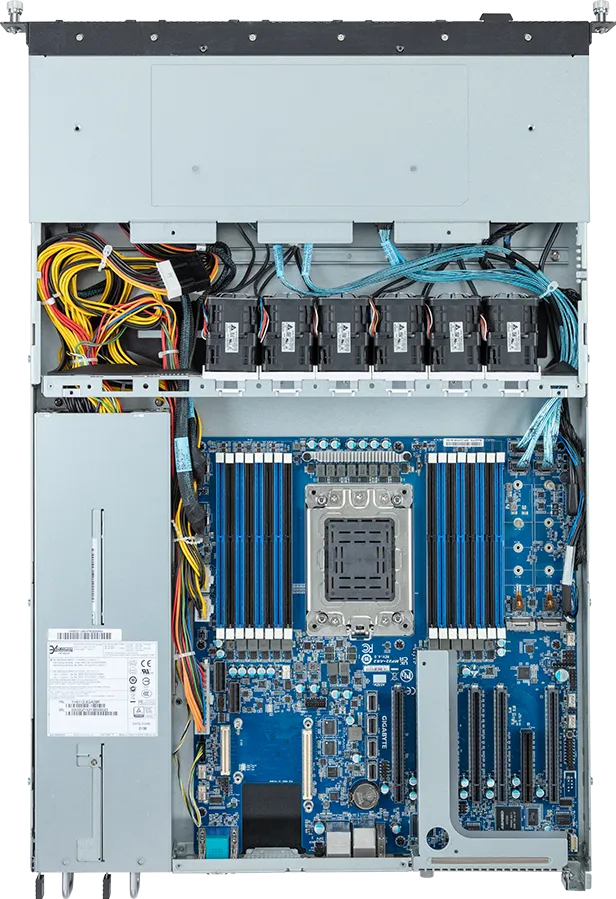

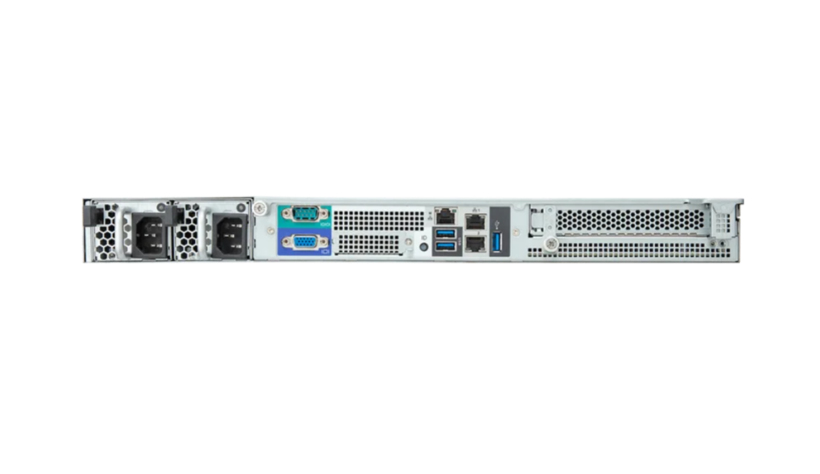

GIGABYTE 6NR152P33MR-00 server barebone LGA 4926 Rack (1U) Black, Steel
GIGABYTE

6NR152P33MR-00 server barebone LGA 4926 Rack (1U) Black, Steel

Model 6NR152P33MR-00EAN 4719331602031

64 specifications
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported6
  • On-board graphics card modelAspeed AST2500
  • Ethernet LANYes
See all specifications

Overview

Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
6
On-board graphics card model
Aspeed AST2500
Ethernet LAN
Yes
Brand
GIGABYTE
Model
6NR152P33MR-00
Part number
6NR152P33MR-00
EAN / UPC
4719331602031
Also known as
GIGABYTE 6NR152P33MR-00 server barebone LGA 4926 Rack (1U) Black, Steel

Specifications

64 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 4926
Number of processors supported1
Compatible processor seriesAmpere Altra

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Maximum internal memory256 GB
Maximum RDIMM memory256 GB
Supported RDIMM clock speeds3200 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported6
Hot-swap HDD baysYes
Number of 2.5" bays8
Storage drive sizes supported2.5,3.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 4.0
RAID levels0, 1, 1E, 10
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x16 slots1
PCI Express x8 (Gen 4.x) slots1
Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Backplanes supportYes
Compatible operating systemsRed Hat Enterprise Linux 8.3 (aarch64) or later; Red Hat Enterprise Linux 8.5 (aarch64) or later; CentOS 8.3-2011 (aarch64) or later; CentOS-8.4.2105 (aarch64) or later; CentOS-8.5.2111 (aarch64) or later; SUSE Linux Enterprise Server 15 SP2 (aarch64) or later; SUSE Linux Enterprise Server 15 SP3 (a

Design

Chassis typeRack (1U)
Product colourBlack, Steel
LED indicatorsLAN, HDD, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter4 cm
Heat sink includedYes
Number of fans6 fan(s)

Power

Power supply1100 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12 - 6 A
DC output current (+5 V)3 A
DC output current (+12 V)90.5 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth660 mm
Height435 mm
Width438 mm

Packaging data

Packaging content1 x R152-P33 1 x CPU heatsink 1 x Rail kit
Package width985 mm
Package depth588 mm
Package height250 mm
