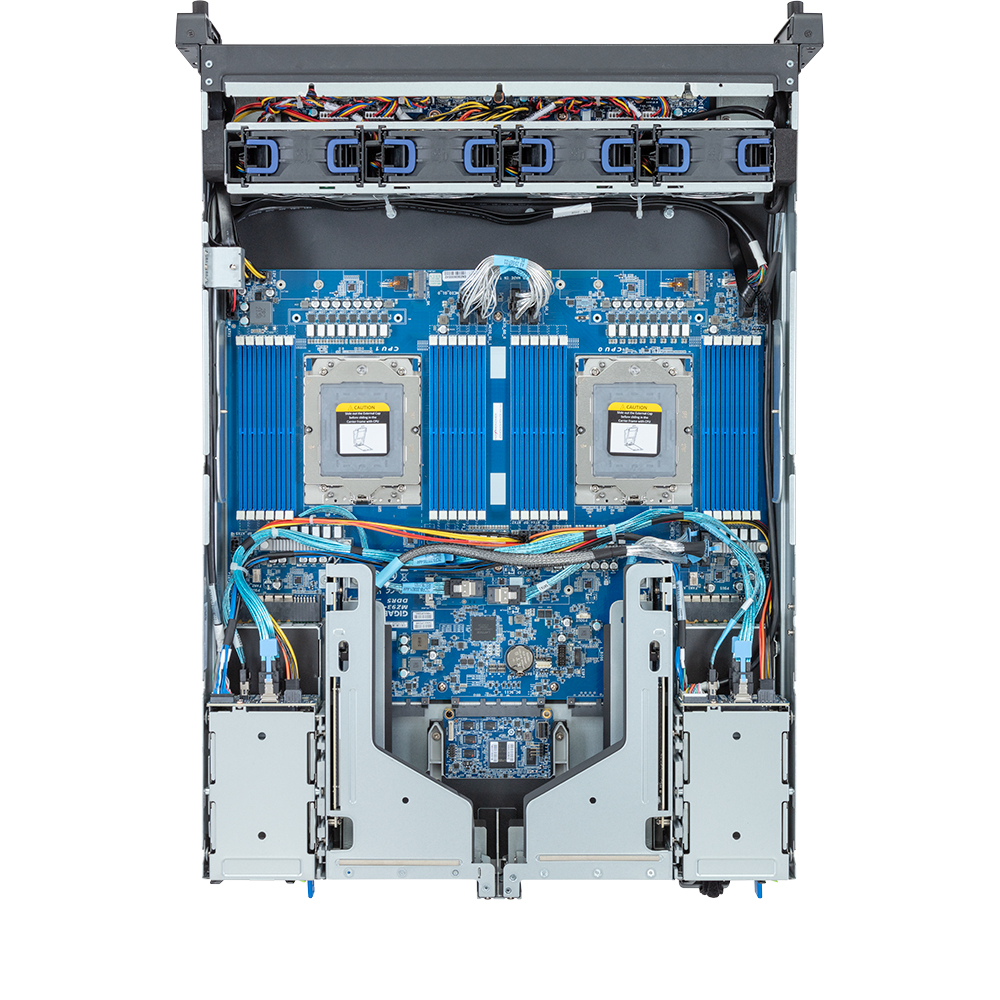

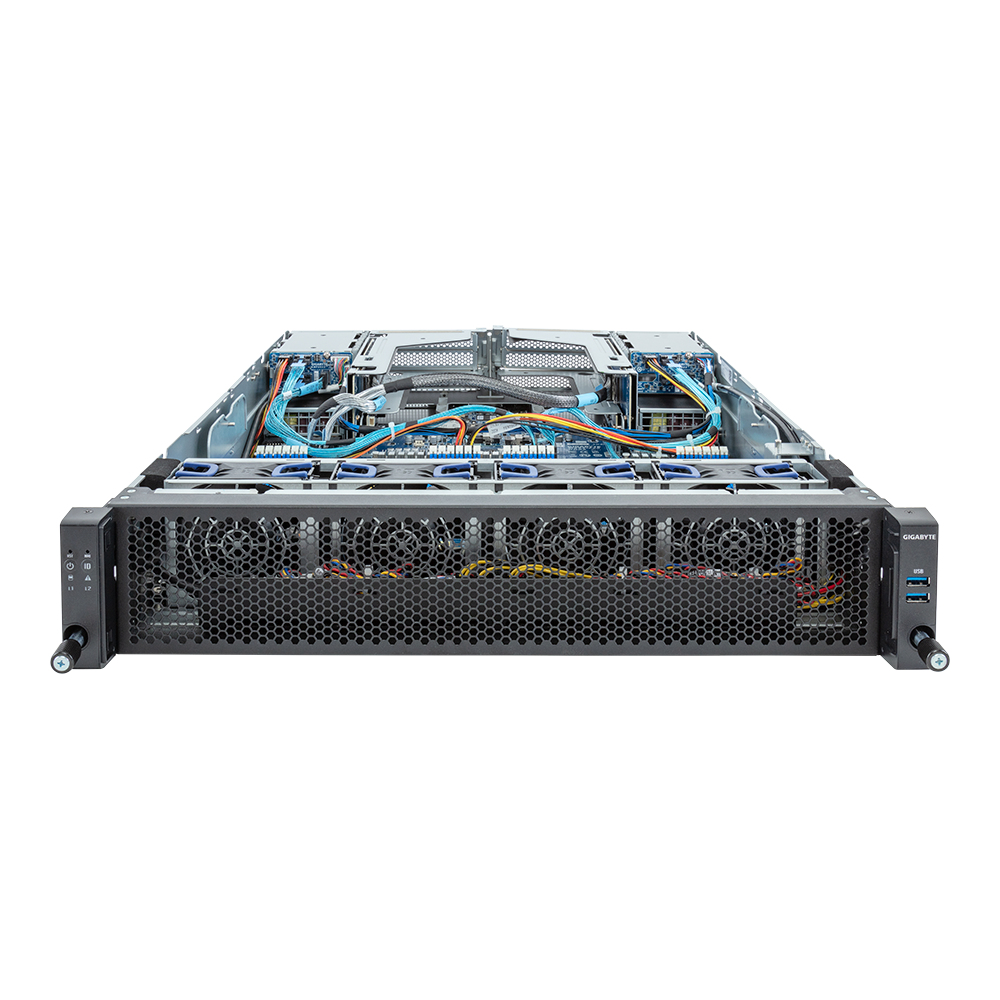

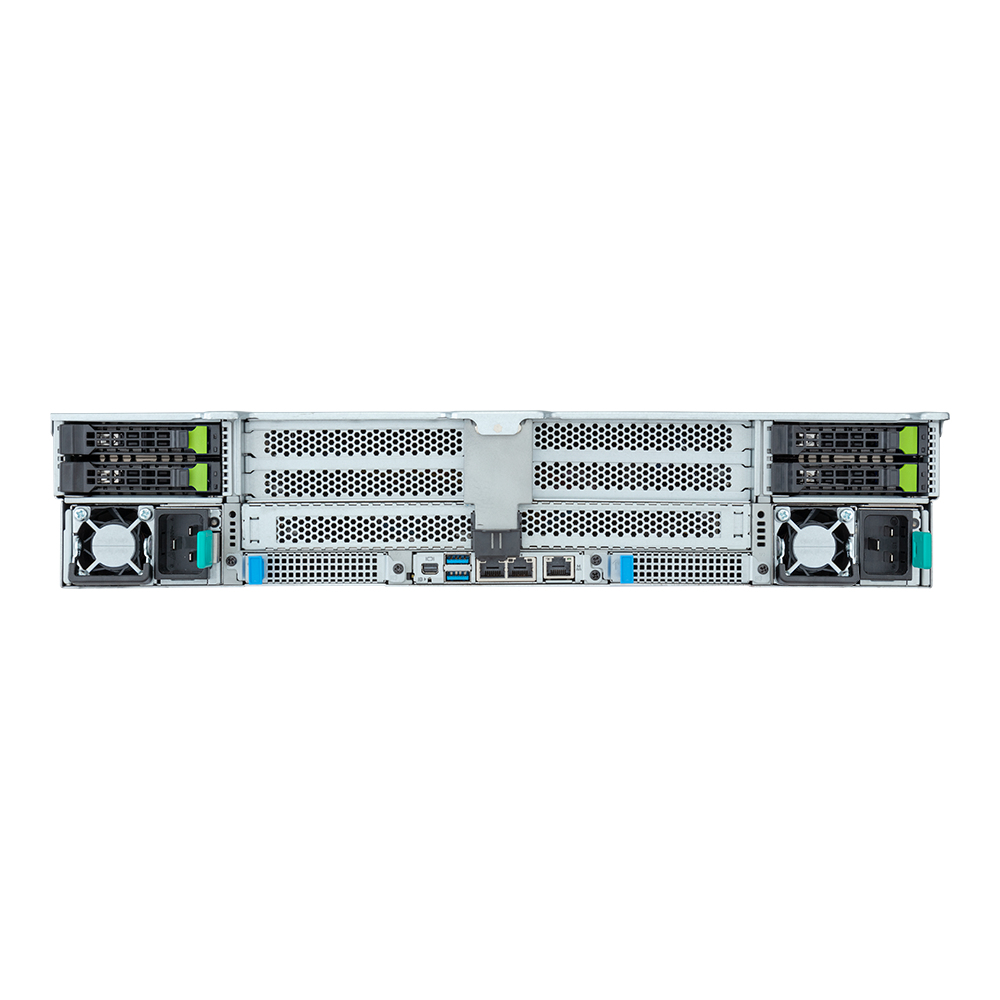

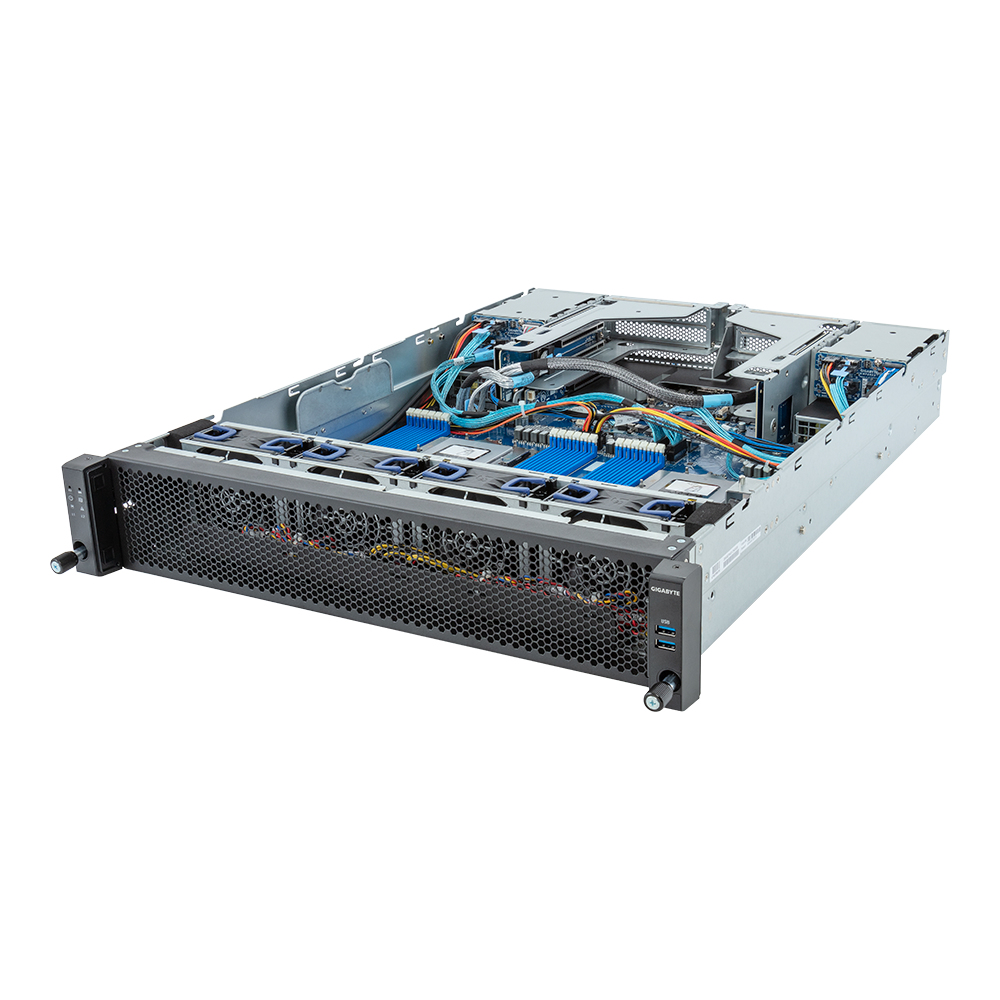

6NE283Z90DR000AAD1 server barebone Socket SP5 Rack (2U) Stainless steel
Model 6NE283Z90DR000AAD1EAN 4719331850739
65 specifications
- ProcessorAMD EPYC
- ColourStainless steel
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported4
- On-board graphics card modelAspeed AST2600
Overview
- Processor
- AMD EPYC
- Colour
- Stainless steel
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 4
- On-board graphics card model
- Aspeed AST2600
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- 6NE283Z90DR000AAD1
- Part number
- 6NE283Z90DR000AAD1
- EAN / UPC
- 4719331850739
- Also known as
- GIGABYTE 6NE283Z90DR000AAD1 server barebone Socket SP5 Rack (2U) Stainless steel
Specifications
65 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor generation | AMD EPYC 9004 |
| Processor series | AMD EPYC™ 9004 Series |
| Number of processors supported | 2 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Maximum internal memory | 256 GB |
| Maximum RDIMM memory | 96 GB |
| Supported RDIMM clock speeds | 4800 MHz |
| Memory channels | Dodeca-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 2 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| SSD form factor | 2.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Mini DisplayPorts quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 5.0 |
| PCI Express x16 slots | 6 |
| Number of M.2 (M) slots | 2 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Stainless steel |
| LED indicators | HDD, LAN, Node ID, Power, System |
| On/off switch | Yes |
| Reset button | Yes |
| Cooling type | Active |
| Rack rails | Yes |
| Rack-Friendly board | Yes |
| Fan diameter | 8 cm |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 1600 W |
| Number of main power supplies | 2 |
| Hot-swap PSU | Yes |
| Number of hot-swap PSUs supported | 2 |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| DC output current (+12 V) | 133 A |
| Thermal Design Power (TDP) | 300 W |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 625 mm |
| Height | 87 mm |
| Width | 438 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 982 mm |
| Package depth | 588 mm |
| Package height | 268 mm |
Other features
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
