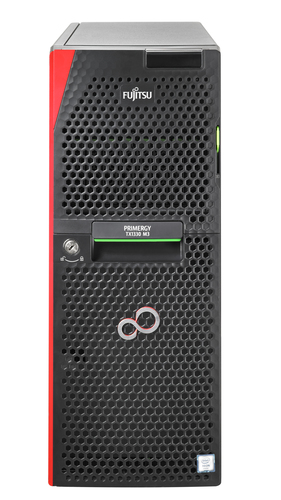

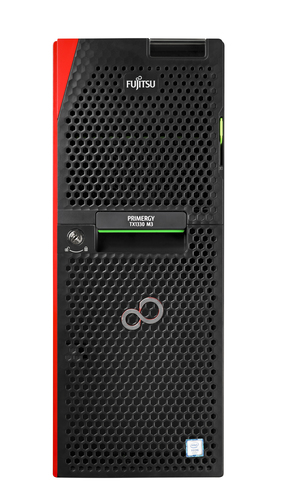

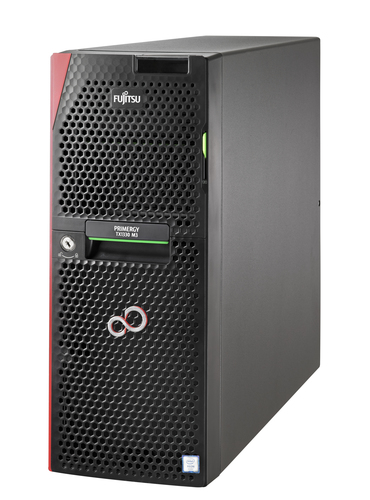

PRIMERGY TX1330 M3
Model PRIMERGY TX1330 M3Part no. S26361-K1601-V201
30 specifications
- ColourBlack, Red
- Built-in processorNo
- Number of DIMM slots4
- Number of storage drives supported24
- Ethernet LANYes
- PCI Express slots version3.0
Overview
- Colour
- Black, Red
- Built-in processor
- No
- Number of DIMM slots
- 4
- Number of storage drives supported
- 24
- Ethernet LAN
- Yes
- PCI Express slots version
- 3.0
- Brand
- Fujitsu
- Category
- Server Barebone
- Model
- PRIMERGY TX1330 M3
- Part number
- S26361-K1601-V201
- Also known as
- Fujitsu PRIMERGY TX1330 M3 Intel® C236 Rack (4U) Black, Red
Specifications
30 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel® C236 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Core™ i3, Intel® Pentium® Dual-Core, Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 24 |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel I210 |

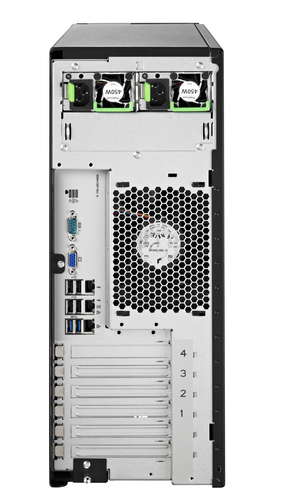

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Product colour | Black, Red |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
