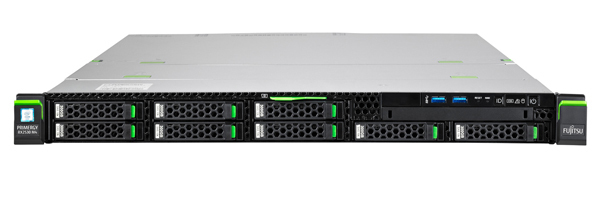

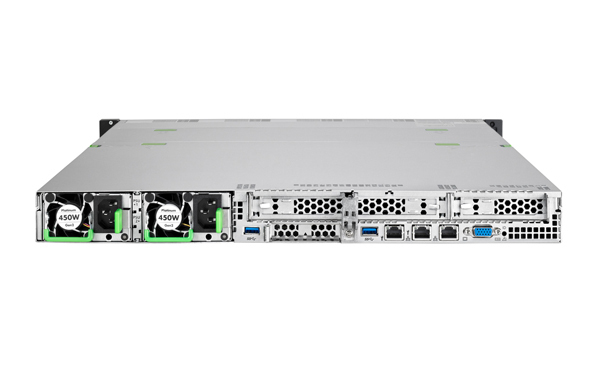

PRIMERGY RX2530 M4
Model PRIMERGY RX2530 M4Part no. S26361-K1592-V501
32 specifications
- Weight16 kg
- ColourBlack
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported10
- Ethernet LANYes
Overview
- Weight
- 16 kg
- Colour
- Black
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 10
- Ethernet LAN
- Yes
- Brand
- Fujitsu
- Category
- Server Barebone
- Model
- PRIMERGY RX2530 M4
- Part number
- S26361-K1592-V501
- Also known as
- Fujitsu PRIMERGY RX2530 M4 C624 Rack (1U) Black
Specifications
32 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | C624 |
| Number of processors supported | 2 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 3 TB |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 10 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 5 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 770.7 mm |
| Height | 43 mm |
| Weight | 16 kg |
| Width | 483 mm |
