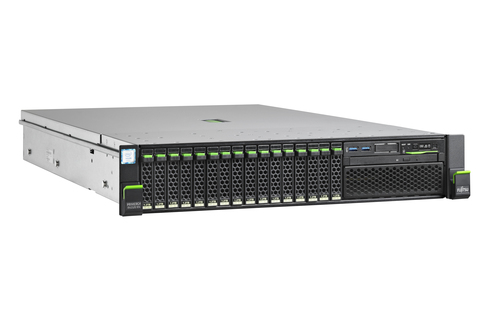

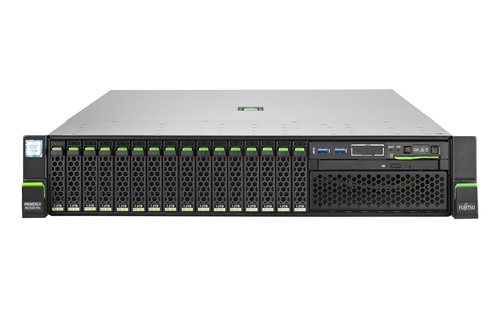

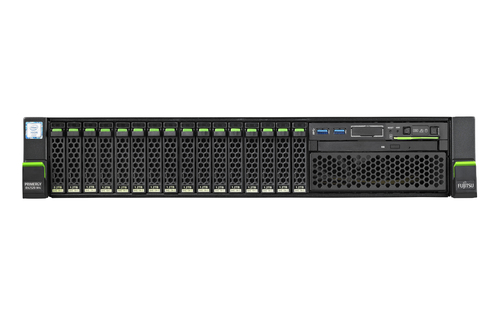

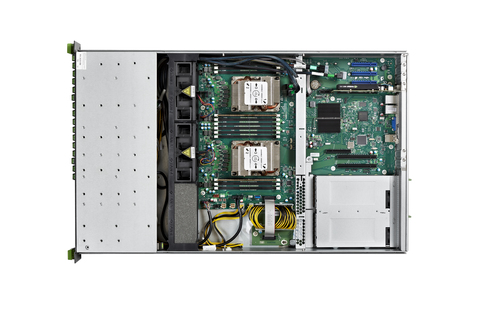

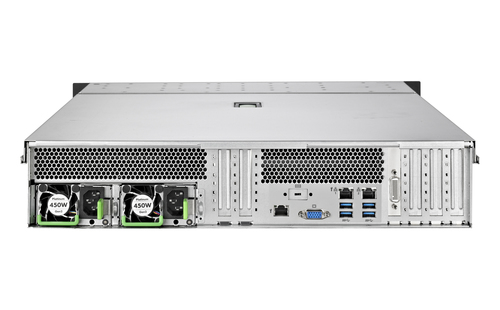

PRIMERGY RX2520 M4
Model PRIMERGY RX2520 M4Part no. S26361-K1599-V208
34 specifications
- Weight25 kg
- ColourBlack
- Built-in processorNo
- Number of DIMM slots12
- Number of storage drives supported8
- Ethernet LANYes
Overview
- Weight
- 25 kg
- Colour
- Black
- Built-in processor
- No
- Number of DIMM slots
- 12
- Number of storage drives supported
- 8
- Ethernet LAN
- Yes
- Brand
- Fujitsu
- Category
- Server Barebone
- Model
- PRIMERGY RX2520 M4
- Part numbers
- S26361-K1599-V208, S26361-K1599-V304, S26361-K1599-V217, S26361-K1599-V224
- Also known as
- Fujitsu PRIMERGY RX2520 M4 C624 Rack (2U) Black
Specifications
34 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | C624 |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 12 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 384 GB |
| Memory channels | Dual-channel |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 8 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Number of main power supplies | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 5 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 770 mm |
| Height | 86.6 mm |
| Weight | 25 kg |
| Width | 482.4 mm |
