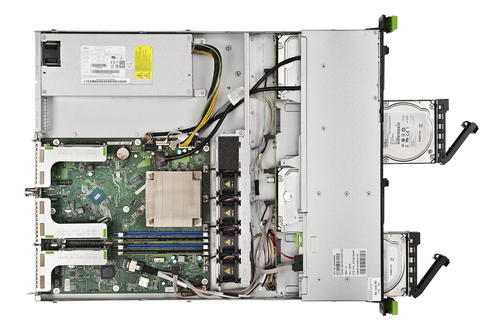

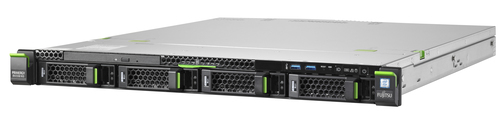

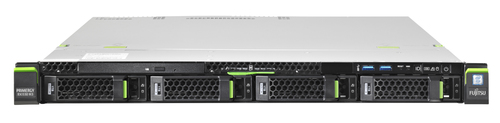

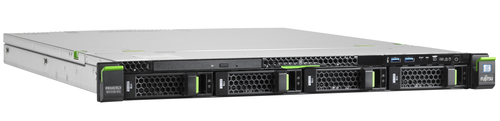

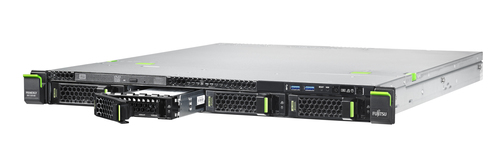

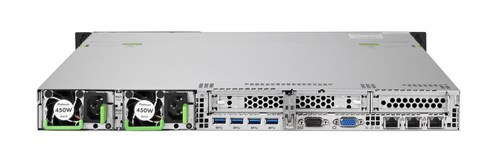

PRIMERGY RX1330 M4
Model PRIMERGY RX1330 M4Part no. S26361-K1640-V201
27 specifications
- Weight13 kg
- ColourBlack, Grey
- Built-in processorNo
- Number of DIMM slots4
- Ethernet LANYes
- USB 2.0 ports quantity2
Overview
- Weight
- 13 kg
- Colour
- Black, Grey
- Built-in processor
- No
- Number of DIMM slots
- 4
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 2
- Brand
- Fujitsu
- Category
- Server Barebone
- Model
- PRIMERGY RX1330 M4
- Part number
- S26361-K1640-V201
- Also known as
- Fujitsu PRIMERGY RX1330 M4 Intel C246 LGA 1151 (Socket H4) Rack (1U) Black, Grey
Specifications
27 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C246 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
| Supported memory types | DDR4-SDRAM |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Storage drive sizes supported | 3.5" |
| RAID levels | 0, 1, 10 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Rack rails | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 572 mm |
| Height | 42.8 mm |
| Weight | 13 kg |
| Width | 482.6 mm |
