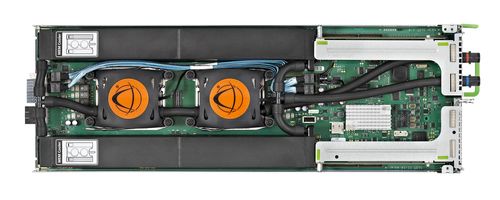

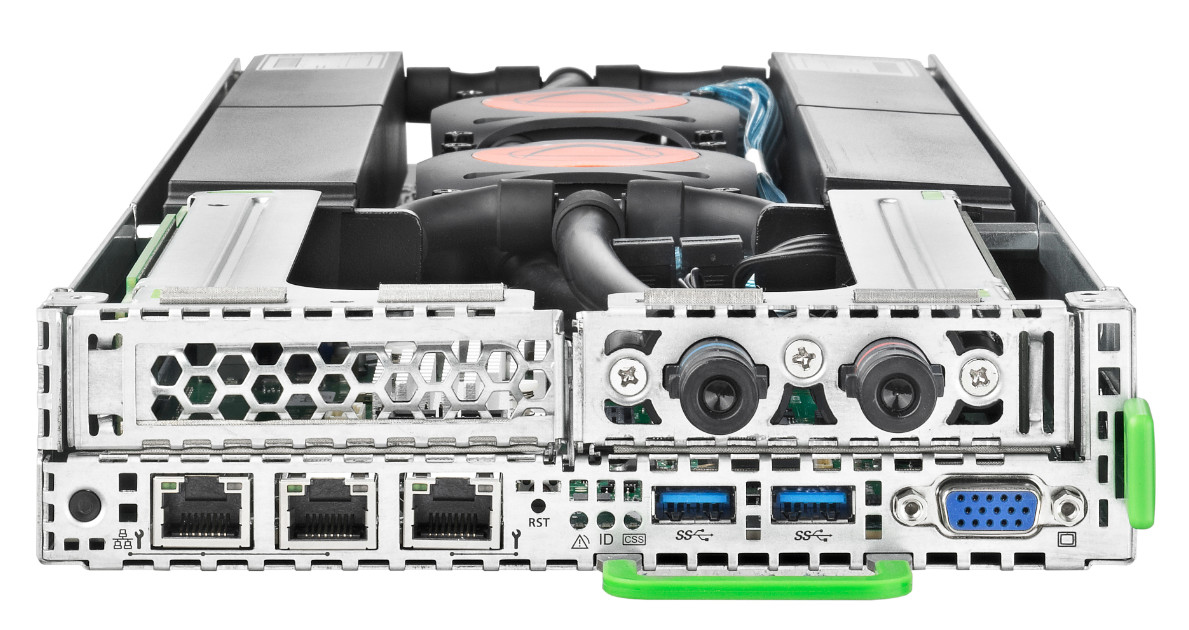

PRIMERGY CX2550 M2
Model PRIMERGY CX2550 M2Part no. S26361-K1568-V210
30 specifications
- Weight5 kg
- Built-in processorNo
- Number of DIMM slots16
- Number of storage drives supported6
- Ethernet LANYes
- USB 2.0 ports quantity0
Overview
- Weight
- 5 kg
- Built-in processor
- No
- Number of DIMM slots
- 16
- Number of storage drives supported
- 6
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 0
- Brand
- Fujitsu
- Category
- Server Barebone
- Model
- PRIMERGY CX2550 M2
- Part number
- S26361-K1568-V210
- Also known as
- Fujitsu PRIMERGY CX2550 M2 Intel C610 Rack (1U)
Specifications
30 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C610 |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® E5 Family |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 1 TB |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 6 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

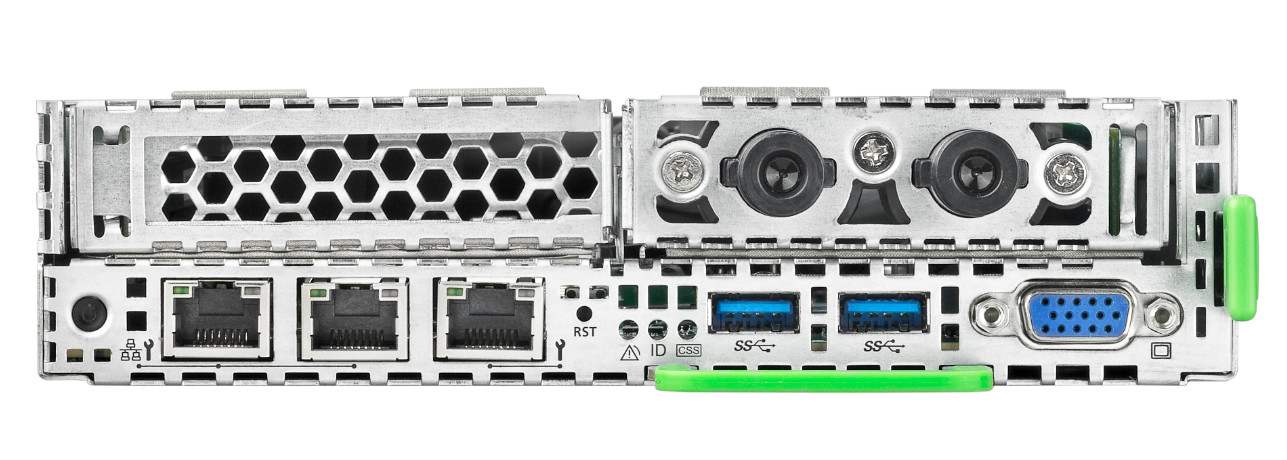

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 2 |
Features
| Specification | Value |
|---|---|
| Integrated BMC with IPMI | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| LED indicators | Yes |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 520 mm |
| Height | 40.8 mm |
| Weight | 5 kg |
| Width | 175.5 mm |
