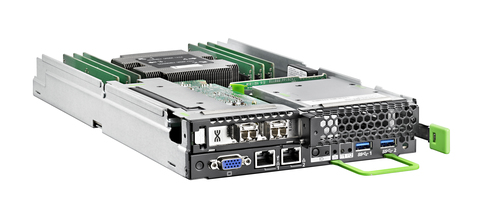

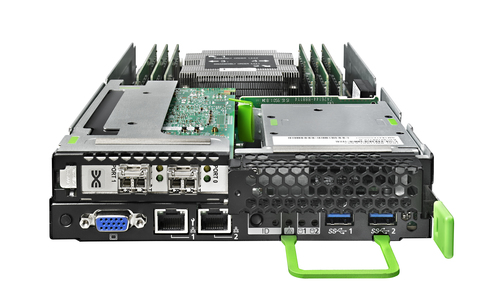

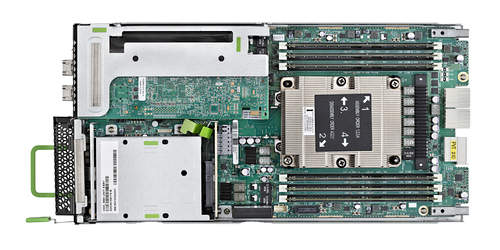

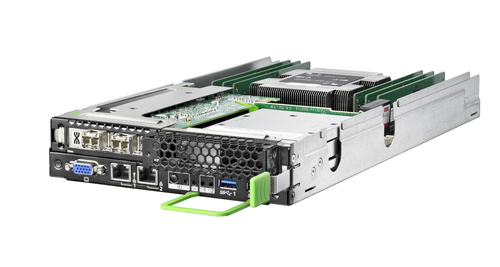

PRIMERGY CX1640 M1
Model PRIMERGY CX1640 M1Part no. S26361-K1554-V100
33 specifications
- ProcessorIntel® Xeon®
- Weight3 kg
- Built-in processorNo
- Number of DIMM slots6
- Number of storage drives supported1
- Ethernet LANYes
Overview
- Processor
- Intel® Xeon®
- Weight
- 3 kg
- Built-in processor
- No
- Number of DIMM slots
- 6
- Number of storage drives supported
- 1
- Ethernet LAN
- Yes
- Brand
- Fujitsu
- Category
- Server Barebone
- Model
- PRIMERGY CX1640 M1
- Part numbers
- S26361-K1554-V100, S26361-K1554-V210, S26361-K1554-V200, S26361-K1554-V110
- Also known as
- Fujitsu PRIMERGY CX1640 M1 Intel C610 Rack (1U)
Specifications
33 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C610 |
| Processor family | Intel® Xeon® |
| Number of processors supported | 1 |
| Intel Xeon series | Phi |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 6 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 384 GB |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 1 |
| Hot-swap HDD bays | No |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

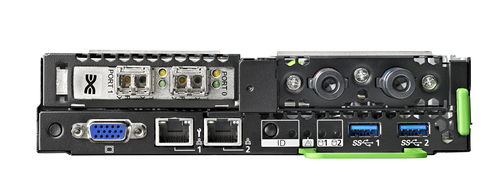

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| LED indicators | Yes |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 395.1 mm |
| Height | 41.4 mm |
| Weight | 3 kg |
| Width | 177.8 mm |
