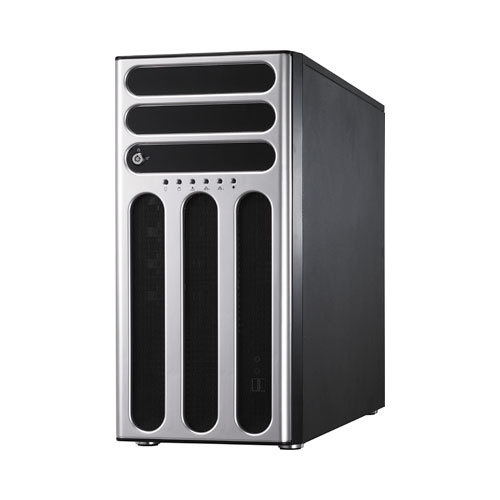

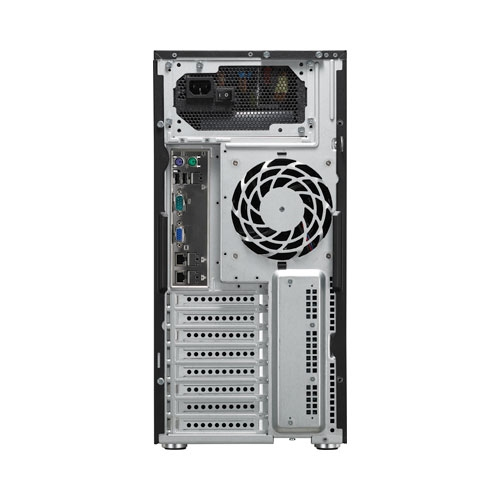

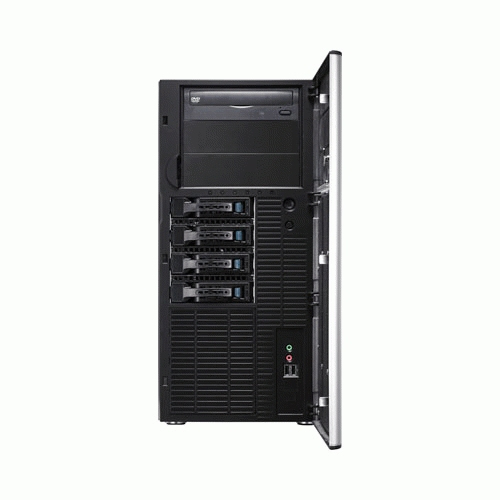

TS500-E6/PS4 Intel® 5500 Socket B (LGA 1366)
Model TS500-E6/PS4Part no. 90S57A0000C200UETEAN 610839083800
29 specifications
- Weight17 kg
- Motherboard chipsetIntel® 5500
- Number of DIMM slots6
- Maximum graphics card memory8 MB
- LAN controllerIntel® 82574L
- USB 2.0 ports quantity4
Overview
- Weight
- 17 kg
- Motherboard chipset
- Intel® 5500
- Number of DIMM slots
- 6
- Maximum graphics card memory
- 8 MB
- LAN controller
- Intel® 82574L
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Server Barebone
- Model
- TS500-E6/PS4
- Part numbers
- 90S57A0000C200UET, TS500-E6-PS4, 90S57A0000C210UEZ, TS500-E6/PS4
- EAN / UPC
- 610839083800, 610839065950, 610839689828, 5052178712471 +3 more
- Also known as
- ASUS TS500-E6/PS4 Intel® 5500 Socket B (LGA 1366)
Specifications
29 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 5500 |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 6 |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 6 |
| Storage controller | Intel ICH10R |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | - Windows Server 2008 Enterprise 32/64-bit, - Windows Server 2003 R2 Enterprise (32/64 bit), - RedHat Enterprise Linux AS5.0 (32/64 bit), - SuSE Linux Enterprise Server 10 (32/64 bit) |
Power
| Specification | Value |
|---|---|
| Power supply | 470 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 545 mm |
| Height | 445 mm |
| Weight | 17 kg |
| Width | 217.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Drive bays | 4 x Hot-swap 3.5" HDD |
| Expansion slots | 1 x PIKE, 1 x MIO |
