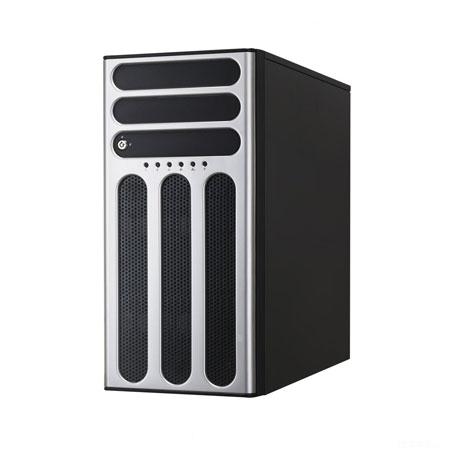

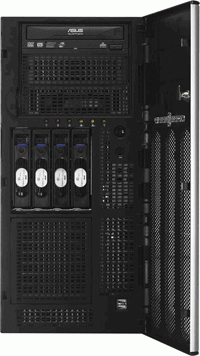

TS500-E5/PA4 server barebone Intel® 5100 LGA 771 (Socket J) Black
Model TS500-E5/PA4Part no. 90S4QA0000C210UETEAN 610839662500
33 specifications
- Weight20 kg
- ColourBlack
- Motherboard chipsetIntel® 5100
- Number of DIMM slots6
- RAID levels0, 1, 5, 10
- Maximum graphics card memory32 MB
Overview
- Weight
- 20 kg
- Colour
- Black
- Motherboard chipset
- Intel® 5100
- Number of DIMM slots
- 6
- RAID levels
- 0, 1, 5, 10
- Maximum graphics card memory
- 32 MB
- Brand
- ASUS
- Category
- Server Barebone
- Model
- TS500-E5/PA4
- Part numbers
- 90S4QA0000C210UET, TS500-E5/PA4
- EAN / UPC
- 610839662500, 610839659050, 610839661541, 4719543662502
- Also known as
- ASUS TS500-E5/PA4 server barebone Intel® 5100 LGA 771 (Socket J) Black
Specifications
33 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 5100 |
| Processor socket | LGA 771 (Socket J) |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 6 |
| Maximum internal memory | 24 GB |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Serial Attached SCSI (SAS), Serial ATA |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom BCM5721 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003 R2 Enterprise (32/64 bit), RedHat Enterprise Linux AS5.0 (32/64 bit), SuSE Linux Enterprise Server 10 (32/64 bit) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power supply | 670 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 550 mm |
| Height | 450 mm |
| Weight | 20 kg |
| Width | 212 mm |
Other features
| Specification | Value |
|---|---|
| Diskette drive | 1 x FDD |
| Drive bays | 2 x 5.25" |
| Expansion slots | 1 x SO-DIMM |
| Networking speed | 10/100/1000 Mbps |
