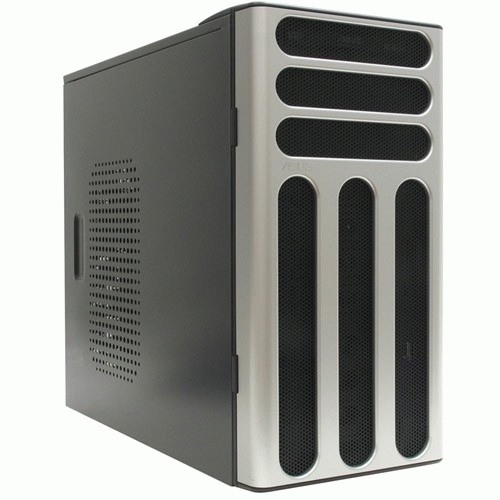

TS500-E4/PA4 Intel®
5000V LGA 771 (Socket J) Black, Grey
Model TS500-E4/PA4Part no. 90S3TA0000C110UEEAN 610839641383
31 specifications
- Weight18 kg
- ColourBlack, Grey
- Motherboard chipsetIntel® 5000V
- Number of DIMM slots6
- Number of storage drives supported4
- Maximum graphics card memory32 MB
Overview
- Weight
- 18 kg
- Colour
- Black, Grey
- Motherboard chipset
- Intel® 5000V
- Number of DIMM slots
- 6
- Number of storage drives supported
- 4
- Maximum graphics card memory
- 32 MB
- Brand
- ASUS
- Category
- Server Barebone
- Model
- TS500-E4/PA4
- Part number
- 90S3TA0000C110UE
- EAN / UPC
- 610839641383, 4719543641385
- Also known as
- ASUS TS500-E4/PA4 Intel® 5000V LGA 771 (Socket J) Black, Grey
Specifications
31 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 5000V |
| Processor socket | LGA 771 (Socket J) |
| Supported processor frequency (max) | 1.333 GHz |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 6 |
| Maximum internal memory | 24 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| RAID levels | 0, 1, 0+1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82563EB |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
| PCI-X slots | 3 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | - Windows Server 2003 R2 Enterprise - RedHat Enterprise Linux AS3.0 - RedHat Enterprise Linux AS4.0 - SuSE Linux Enterprise Server 9.0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
Power
| Specification | Value |
|---|---|
| Power supply | 670 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | 40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 510 mm |
| Height | 431 mm |
| Weight | 18 kg |
| Width | 220 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | CA eTrust 7.1 |
Other features
| Specification | Value |
|---|---|
| Graphics card | ES1000 |
| Standard fans | Smart Fan II |
