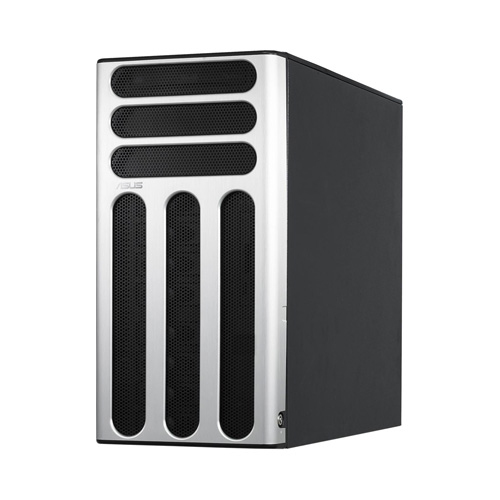

TS300-E5/PX4 Intel® 3210 LGA 775 (Socket T)
Model TS300-E5/PX4Part no. 90S4KA0000C310UETEAN 4719543660348
36 specifications
- ProcessorIntel
- Weight18 kg
- Motherboard chipsetIntel® 3210
- Number of DIMM slots4
- Maximum graphics card memory32 MB
- Ethernet LANYes
Overview
- Processor
- Intel
- Weight
- 18 kg
- Motherboard chipset
- Intel® 3210
- Number of DIMM slots
- 4
- Maximum graphics card memory
- 32 MB
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Server Barebone
- Model
- TS300-E5/PX4
- Part numbers
- 90S4KA0000C310UET, 90S4KA0000C810UEZ, TS300-E5-PX4, TS300-E5/PX4
- EAN / UPC
- 4719543660348, 4719543659908
- Also known as
- ASUS TS300-E5/PX4 Intel® 3210 LGA 775 (Socket T)
Specifications
36 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 3210 |
| Processor socket | LGA 775 (Socket T) |
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
| Maximum internal memory | 8 GB |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Storage controller | LSI SAS1064E |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| RAID levels | 0, 1, 1E |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom BCM5721 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 3 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | - Windows Server 2003 R2 Enterprise 32/64-bit, - RedHat Enterprise Linux AS5.0 32/64-bit, - SuSE Linux Enterprise Server 10 32/64-bit |
Power
| Specification | Value |
|---|---|
| Power supply | 450 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Safety | UL1950-CSA950, CE, EN55022, TUV |
| Storage temperature (T-T) | -40 - 70 °C |
| Electromagnetic emissions | FCC, CFR47 Part 15, Class A, CE, EN55022 & EN55024, C-TICK, BSMI, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 510 mm |
| Height | 431 mm |
| Weight | 18 kg |
| Width | 220 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Drive bays | 1 x FDD, 3 x 5.25" |
| Expansion slots | 1 x SO-DIMM |
