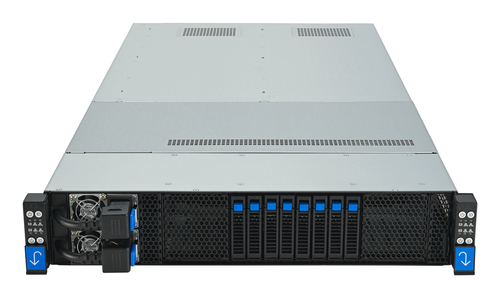

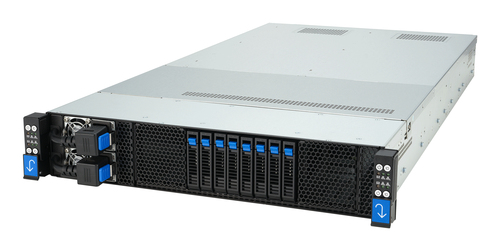

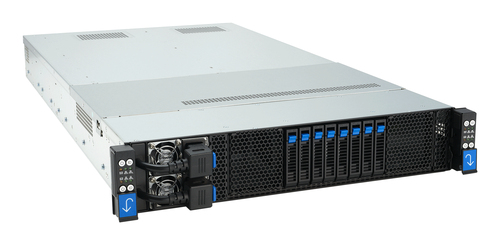

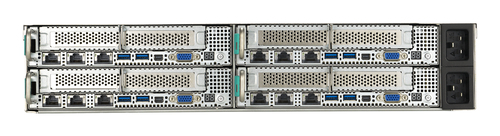

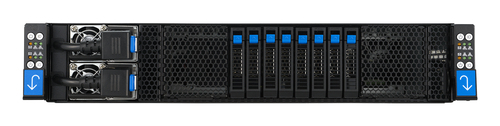

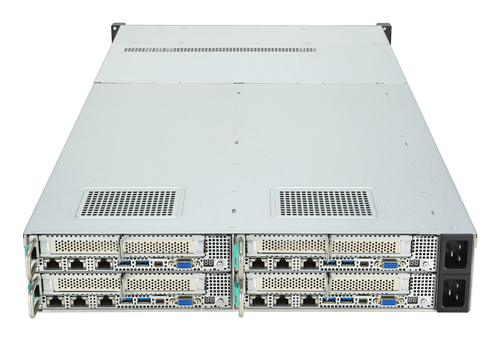

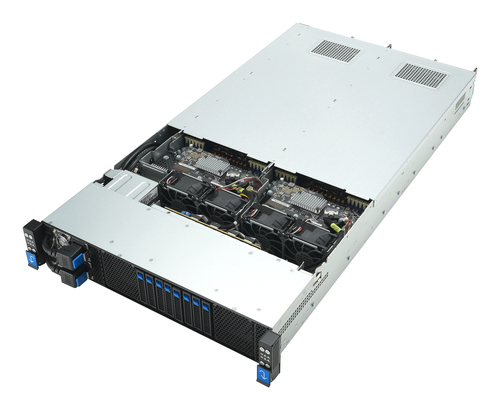

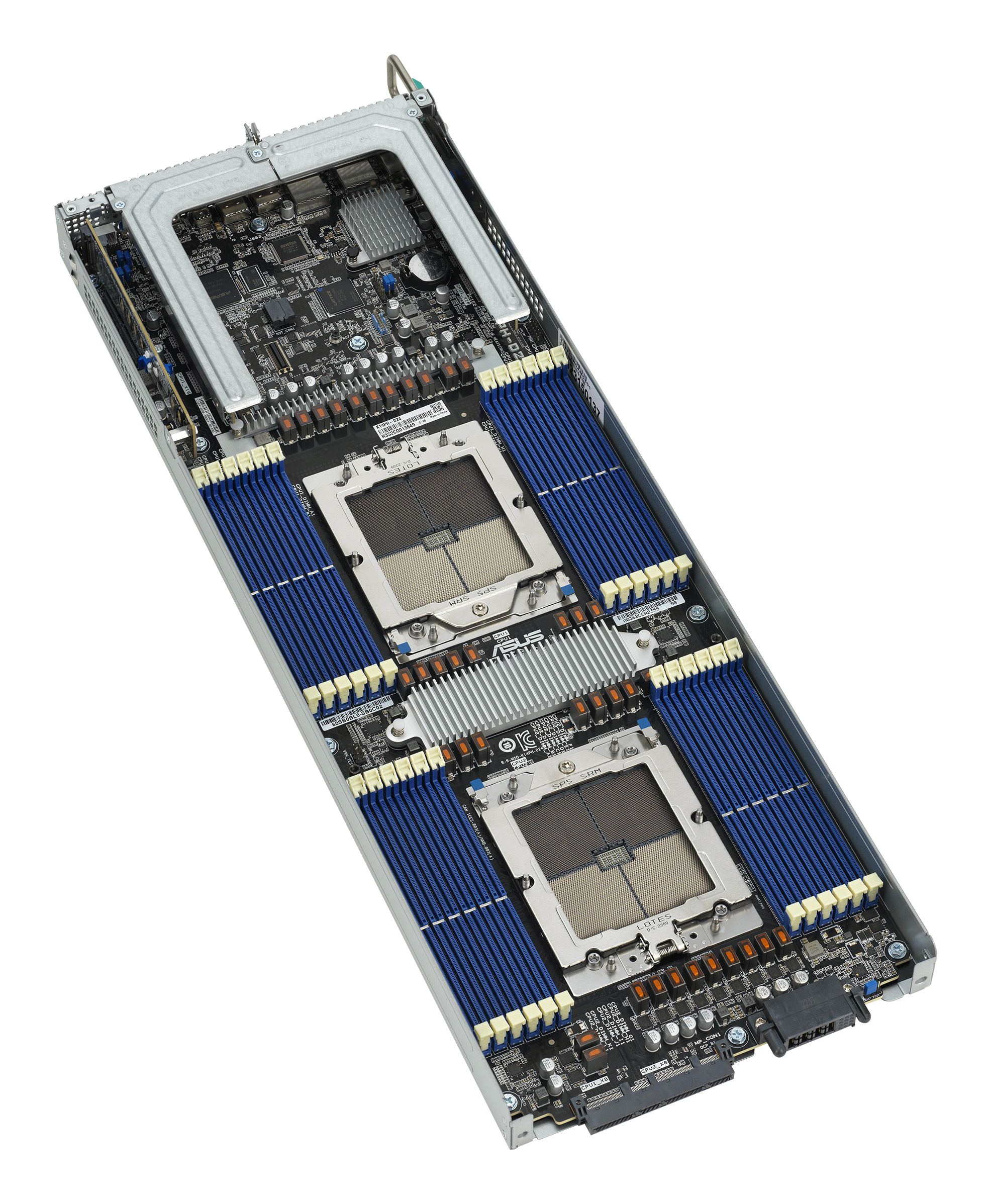

ASUS RS720QA-E12-RS8U LGA 6096 Rack (2U) Black, Silver
ASUS

RS720QA-E12-RS8U LGA 6096 Rack (2U) Black, Silver

Model RS720QA-E12-RS8UPart no. 90SF02R1-M000L0EAN 4711387366905

47 specifications
  • Weight29.2 kg
  • ColourBlack, Silver
  • Built-in processorNo
  • Number of DIMM slots96
  • Number of storage drives supported16
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
29.2 kg
Colour
Black, Silver
Built-in processor
No
Number of DIMM slots
96
Number of storage drives supported
16
On-board graphics card model
Aspeed AST2600
Brand
ASUS
Model
RS720QA-E12-RS8U
Part number
90SF02R1-M000L0
EAN / UPC
4711387366905
Also known as
ASUS RS720QA-E12-RS8U LGA 6096 Rack (2U) Black, Silver

Specifications

47 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 6096
Processor seriesAMD EPYC™ 9004 Series
Number of processors supported8
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots96
Supported memory typesDDR5-SDRAM
Supported DIMM module capacities32GB, 64GB
Maximum internal memory6 TB
Supported RDIMM clock speeds4800 MHz

Storage

Number of storage drives supported16
Hot-swap HDD baysYes
Number of 2.5" bays8
Storage drive sizes supported2.5,M.2
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000,10000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports8
Mini DisplayPorts quantity1
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version5.0
PCI Express x16 (Gen 5.x) slots8
Number of M.2 (M) slots8

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Design

Chassis typeRack (2U)
Product colourBlack, Silver
LED indicatorsYes

Power

Power supply2600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating temperature (T-T)10 - 30 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth444 mm
Height87.3 mm
Weight29.2 kg
Width847 mm

Packaging data

Package weight33.4 kg
