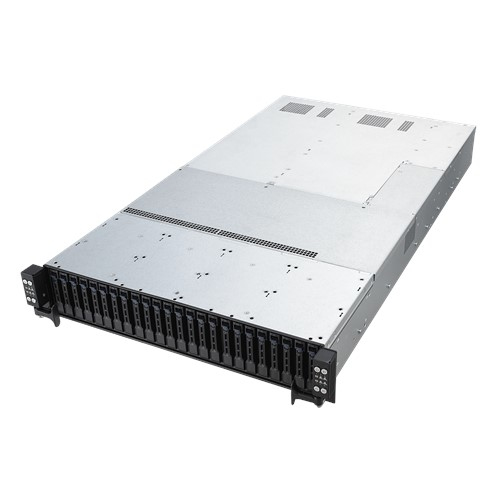

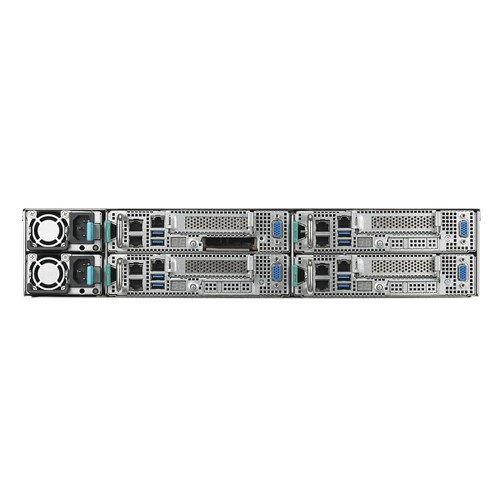

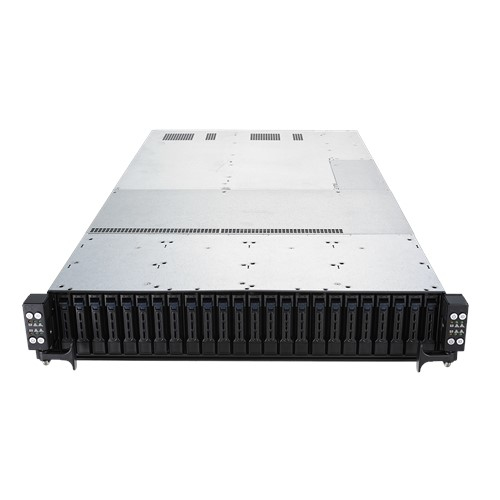

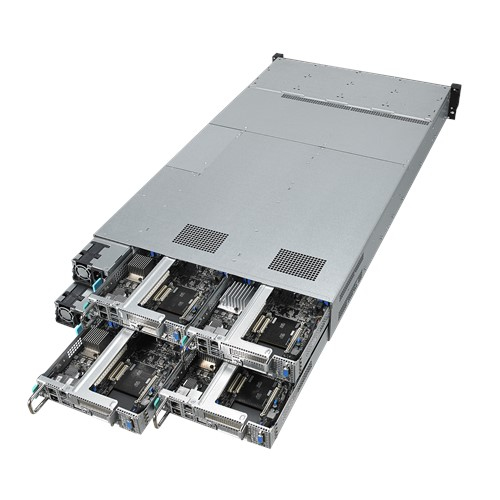

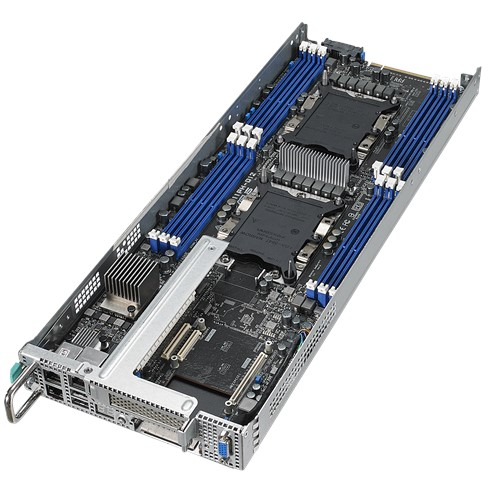

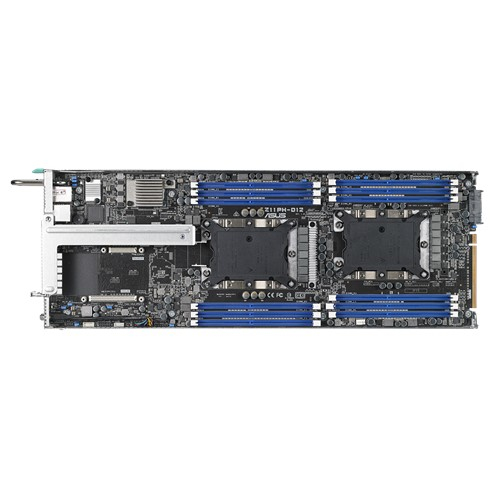

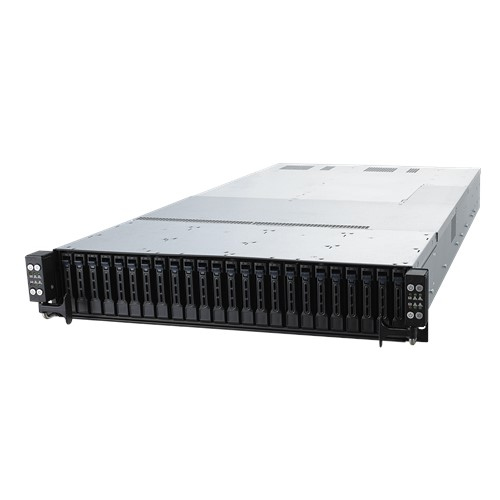

RS720Q-E9-RS24-S Intel® C621 LGA 3647 (Socket P) Rack (2U) Black
Model RS720Q-E9-RS24-SPart no. 90SF0041-M00540EAN 192876264836
41 specifications
- ProcessorIntel® Xeon® Scalable
- Weight44 kg
- ColourBlack
- Motherboard chipsetIntel® C621
- Number of DIMM slots12
- Number of storage drives supported24
Overview
- Processor
- Intel® Xeon® Scalable
- Weight
- 44 kg
- Colour
- Black
- Motherboard chipset
- Intel® C621
- Number of DIMM slots
- 12
- Number of storage drives supported
- 24
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS720Q-E9-RS24-S
- Part number
- 90SF0041-M00540
- EAN / UPC
- 192876264836, 4718017466028
- Also known as
- ASUS RS720Q-E9-RS24-S Intel® C621 LGA 3647 (Socket P) Rack (2U) Black
Specifications
41 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® C621 |
| Processor socket | LGA 3647 (Socket P) |
| Processor family | Intel® Xeon® Scalable |
| Number of processors supported | 2 |
| System bus rate | 10.4 GT/s |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 12 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 8GB, 16GB, 32GB, 64GB, 128MB |
| Maximum RDIMM memory | 1.53 TB |
| Supported RDIMM clock speeds | 2133,2400,2666,2933 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 24 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 24 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2016 RedHat Enterprise Linux SuSE Linux Enterprise Server CentOS Ubuntu VMware |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| Certification | BSMI, CE, FCC(Class A) |
Power
| Specification | Value |
|---|---|
| Power supply | 2200 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 47 - 63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 800 mm |
| Height | 88 mm |
| Weight | 44 kg |
| Width | 444 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 48 kg |
