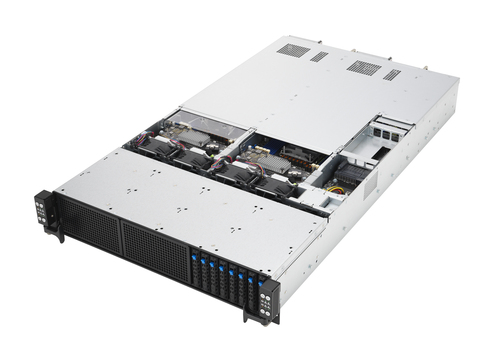

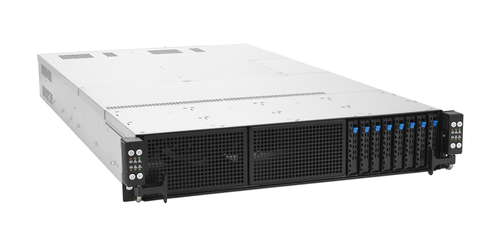

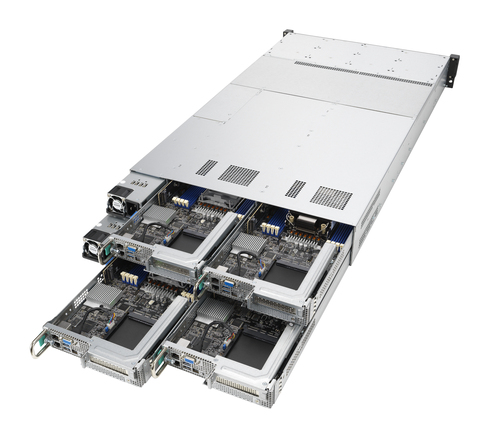

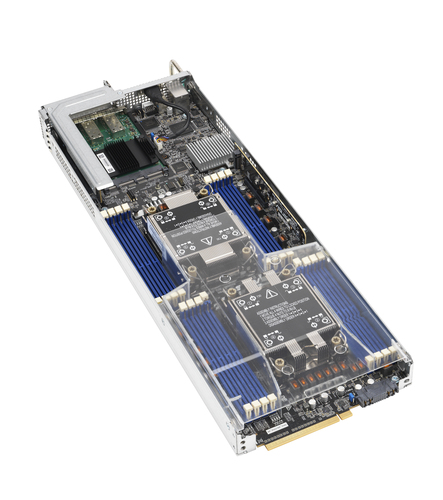

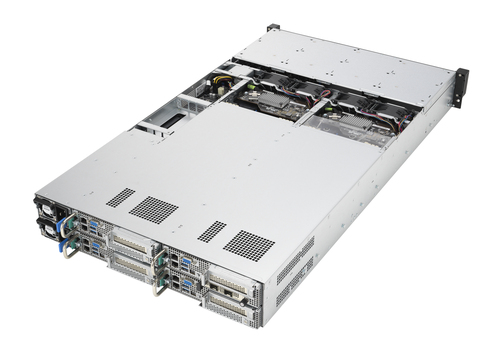

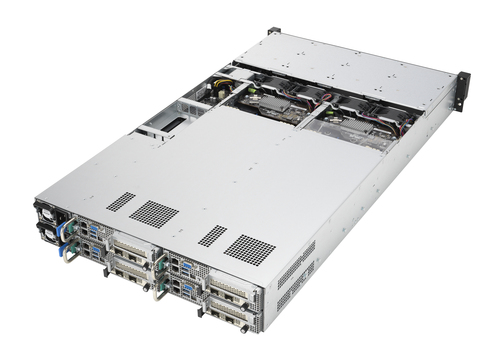

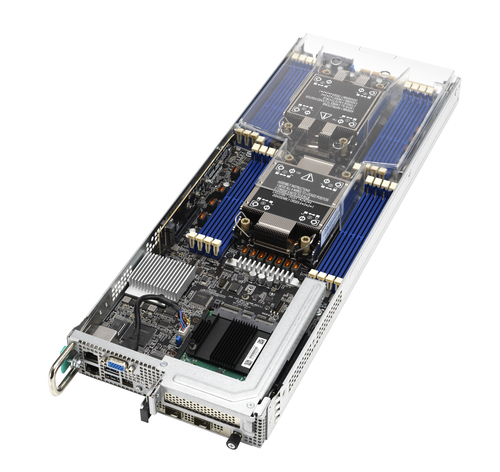

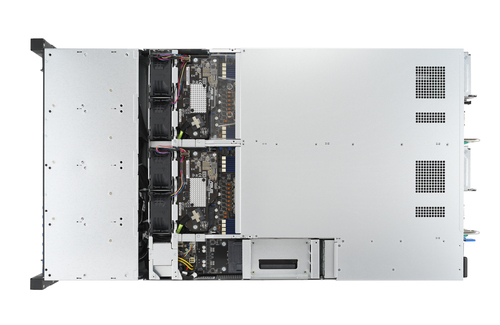

RS720Q-E10-RS8U Intel C621A LGA 4189 Rack (2U) Black, Silver
Model RS720Q-E10-RS8UPart no. 90SF0141-M000C0EAN 4711081436065
47 specifications
- Weight39 kg
- ColourBlack, Silver
- Built-in processorNo
- Number of DIMM slots16
- Number of storage drives supported8
- On-board graphics card modelAspeed AST2600
Overview
- Weight
- 39 kg
- Colour
- Black, Silver
- Built-in processor
- No
- Number of DIMM slots
- 16
- Number of storage drives supported
- 8
- On-board graphics card model
- Aspeed AST2600
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS720Q-E10-RS8U
- Part number
- 90SF0141-M000C0
- EAN / UPC
- 4711081436065
- Also known as
- ASUS RS720Q-E10-RS8U Intel C621A LGA 4189 Rack (2U) Black, Silver
Specifications
47 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C621A |
| Processor socket | LGA 4189 |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 32GB, 64GB, 128GB, 256GB, 512GB |
| Maximum internal memory | 4 TB |
| Supported RDIMM clock speeds | 2933,3200 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 8 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 8 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I210-AT |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 3000 W |
| Number of main power supplies | 2 |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 30 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 444 mm |
| Height | 88 mm |
| Weight | 39 kg |
| Width | 800 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 43 kg |
