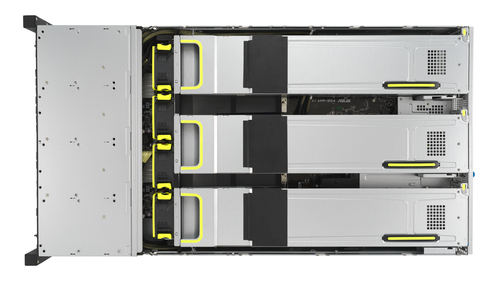

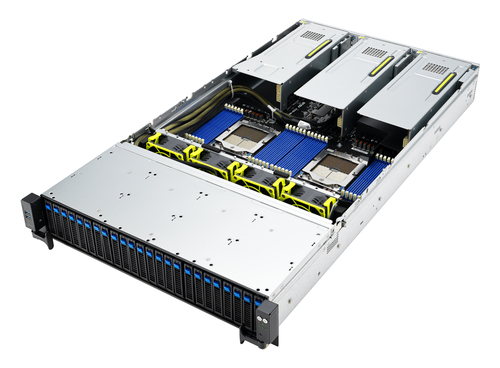

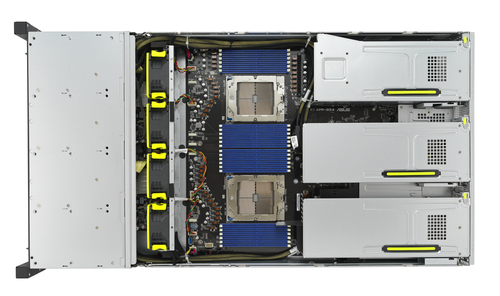

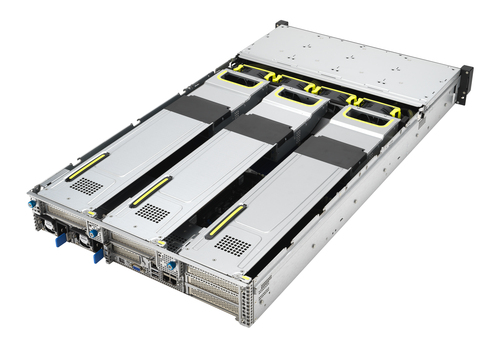

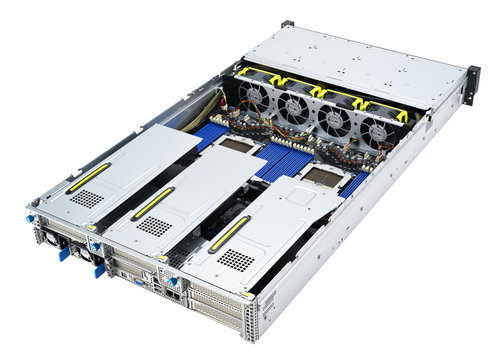

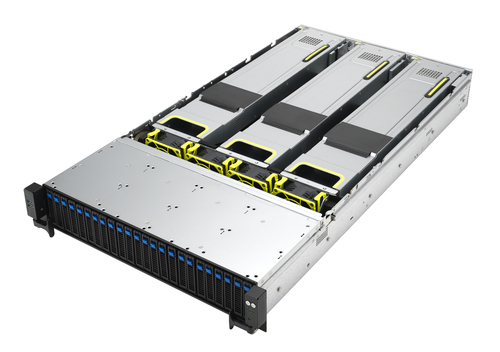

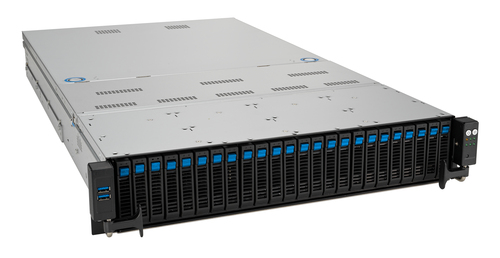

RS720A-E12-RS24U Socket SP5 Rack (2U) Black, Silver
Model RS720A-E12-RS24UPart no. 90SF02E1-M00MZ0EAN 4711387716465
48 specifications
- ProcessorAMD
- Weight20.3 kg
- ColourBlack, Silver
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported26
Overview
- Processor
- AMD
- Weight
- 20.3 kg
- Colour
- Black, Silver
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 26
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS720A-E12-RS24U
- Part numbers
- 90SF02E1-M00MZ0, 90SF02E1-M002L0, 90SF02E1-M00480, 90SF02E1-M006D0, 90SF02E1-M00C00
- EAN / UPC
- 4711387716465, 4711387071915, 4711387127452, 4711387207062 +1 more
- Also known as
- ASUS RS720A-E12-RS24U Socket SP5 Rack (2U) Black, Silver
Specifications
48 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Processor family | AMD |
| Number of processors supported | 2 |
| Compatible processor series | AMD EPYC 9004 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 32GB, 64GB, 128MB |
| Maximum internal memory | 6 TB |
| Supported RDIMM clock speeds | 4400,4800 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 26 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 24 |
| Storage drive sizes supported | 3.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| LAN controller | Intel® I350-AM4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 6 |
| PCI Express x16 slots | 3 |
| Number of M.2 (M) slots | 2 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
| LED indicators | Yes |
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 2600 W |
| Number of main power supplies | 2 |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 449 mm |
| Height | 88.1 mm |
| Weight | 20.3 kg |
| Width | 840 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 26.8 kg |
