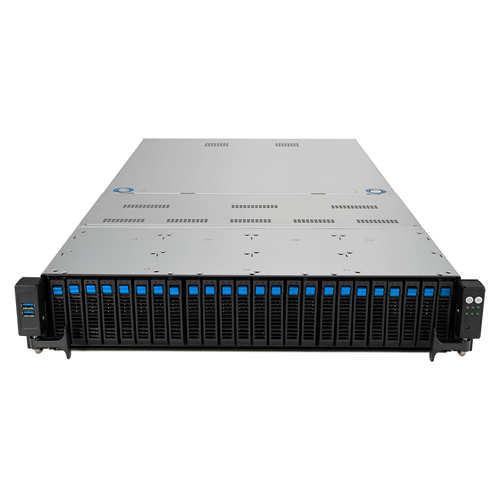

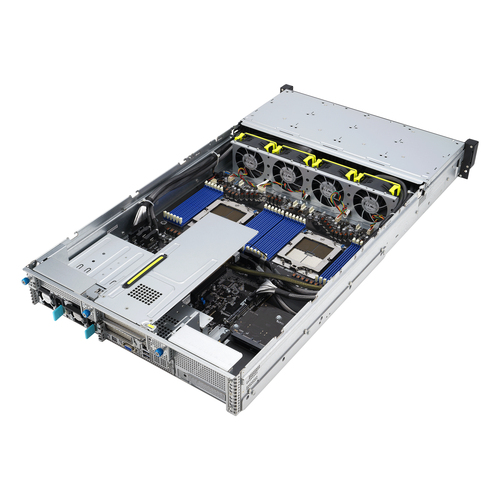

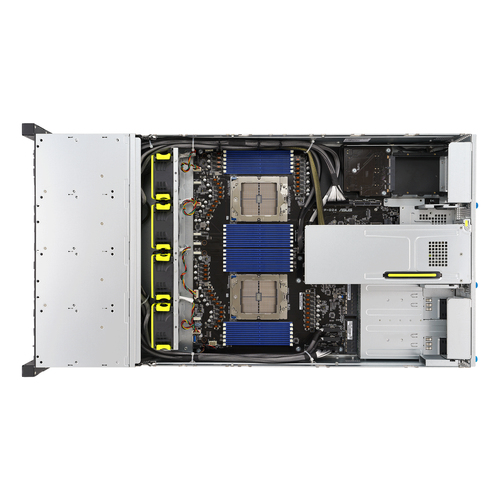

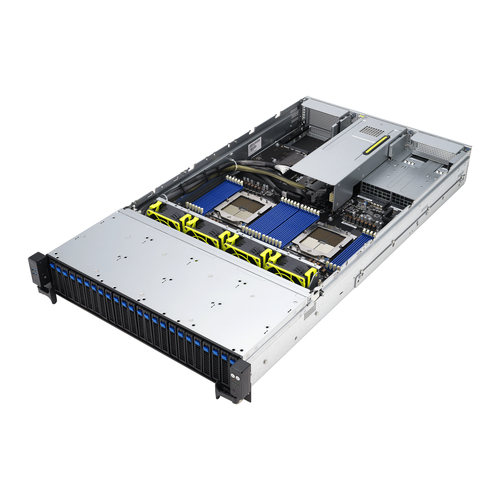

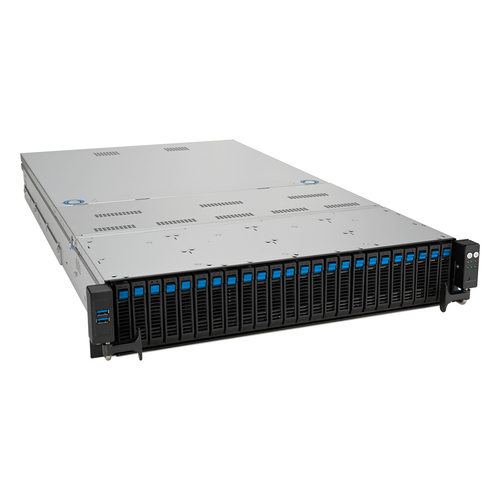

RS720A-E12-RS24 Socket SP5 Rack (2U) Grey
Model RS720A-E12-RS24Part no. 90SF02E1-M00710EAN 4711387238356
48 specifications
- ProcessorAMD EPYC
- Weight18.3 kg
- ColourGrey
- Built-in processorNo
- Number of DIMM slots24
- On-board graphics card modelAspeed AST2600
Overview
- Processor
- AMD EPYC
- Weight
- 18.3 kg
- Colour
- Grey
- Built-in processor
- No
- Number of DIMM slots
- 24
- On-board graphics card model
- Aspeed AST2600
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS720A-E12-RS24
- Part numbers
- 90SF02E1-M00710, 90SF02E1-M00720
- EAN / UPC
- 4711387238356, 4711387238363
- Also known as
- ASUS RS720A-E12-RS24 Socket SP5 Rack (2U) Grey
Specifications
48 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Number of processors supported | 2 |
| Compatible processor series | AMD EPYC 9004 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 128GB, 64GB, 32GB |
| Maximum internal memory | 6 TB |
| Supported RDIMM clock speeds | 4400,4800 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 24 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 24 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X710-AT2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 5.0 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CE, CB, C-TICK, Federal Communications Commission (FCC) |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Grey |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Cooling type | Active |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 2600 W |
| Redundant power supply (RPS) support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 840 mm |
| Height | 88.1 mm |
| Weight | 18.3 kg |
| Width | 449 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 24.8 kg |
