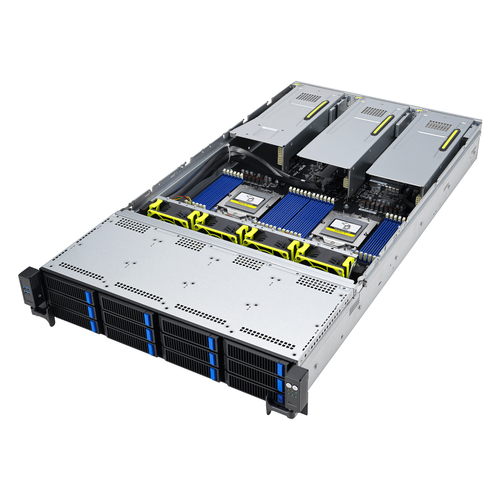

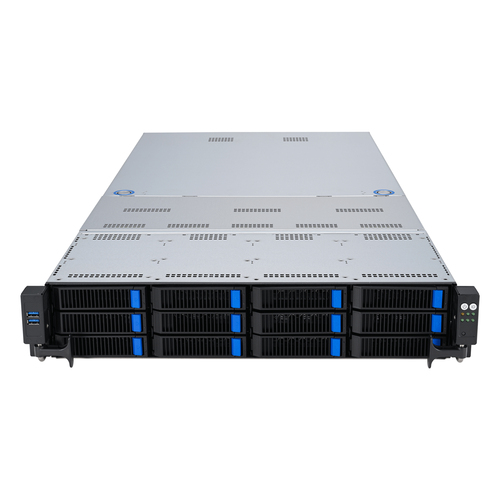

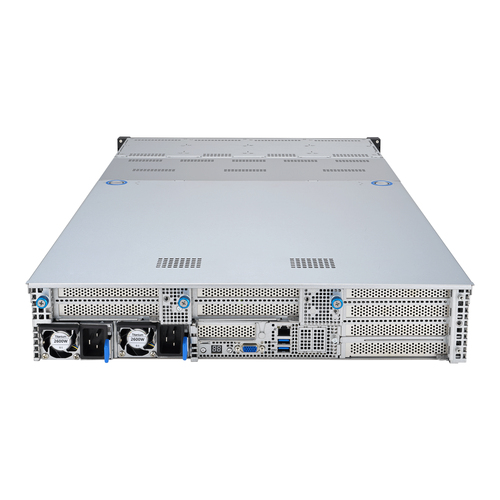

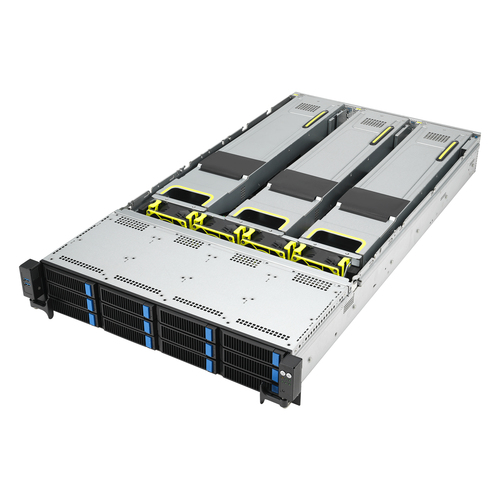

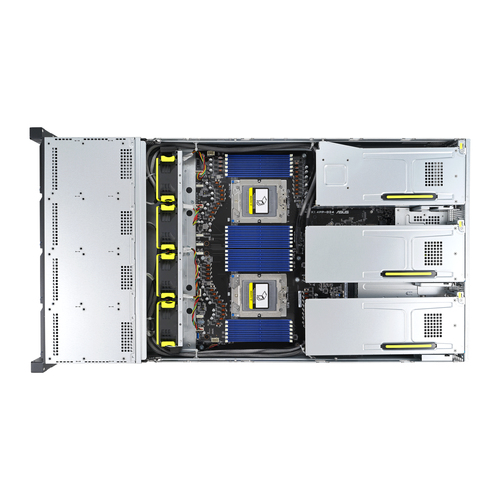

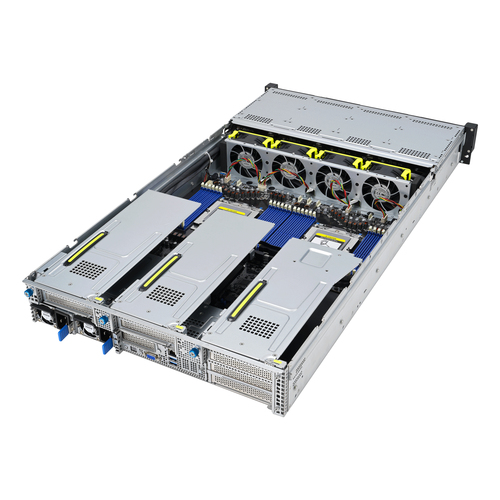

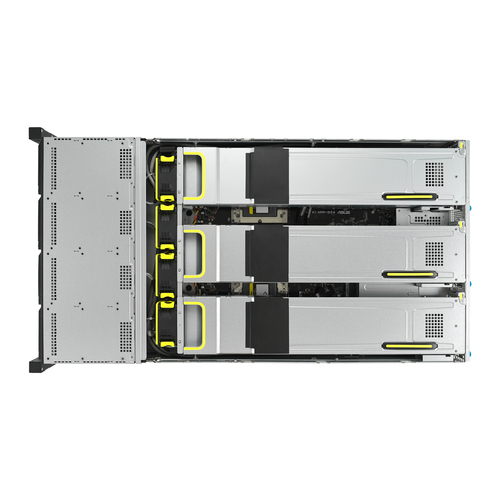

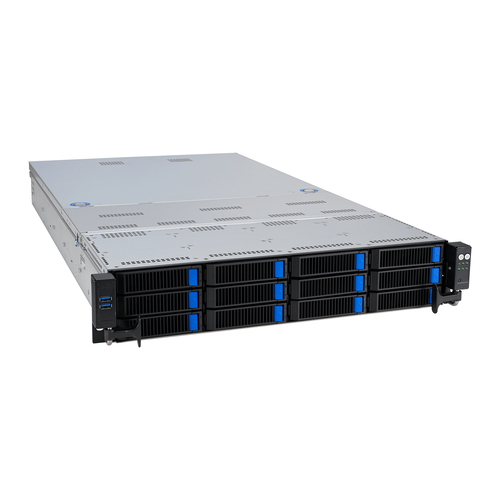

ASUS RS720A-E12-RS12 Socket SP5 Rack (2U) Black, Steel
ASUS

RS720A-E12-RS12 Socket SP5 Rack (2U) Black, Steel

Model RS720A-E12-RS12Part no. 90SF02E1-M004L0EAN 4711387128107

53 specifications
  • Weight19.3 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported14
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
19.3 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
14
On-board graphics card model
Aspeed AST2600
Brand
ASUS
Model
RS720A-E12-RS12
Part numbers
90SF02E1-M004L0, 90SF02E1-M00670, 90SF02E1-M005U0, 90SF02E1-M004K0, 90SF02E1-M00BZ0, 90SF02E1-M00680 +1 more
EAN / UPC
4711387128107, 4711387200308, 4711387172674, 4711387128091 +3 more
Also known as
ASUS RS720A-E12-RS12 Socket SP5 Rack (2U) Black, Steel

Specifications

53 specifications in 13 groups

Processor

Built-in processorNo
Processor socketSocket SP5
Number of processors supported2
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots24
Supported memory typesDDR5-SDRAM
Supported DIMM module capacities32GB, 64GB, 128MB
Maximum RDIMM memory3 TB
Supported RDIMM clock speeds4400,4800 MHz

Storage

Number of storage drives supported14
Hot-swap HDD baysYes
Number of 3.5" bays12
Storage drive sizes supported2.5,3.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA III, Serial Attached SCSI (SAS)
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates1000,10000 Mbit/s
LAN controllerIntel® I350-AM4

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0, 5.0
PCI Express x8 slots6
PCI Express x16 slots3
Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsYes
Cooling typeActive
Number of fans2 fan(s)
CertificationBSMI, CE, CB, C-Tick, FCC(Class A)

Power

Power supply2600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth449 mm
Height88.1 mm
Weight19.3 kg
Width840 mm

Packaging data

Package weight25.8 kg
