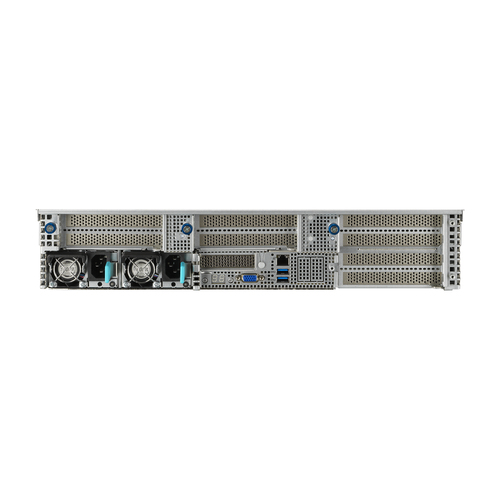

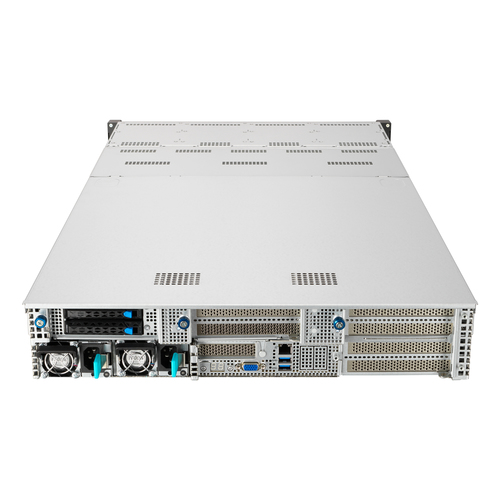

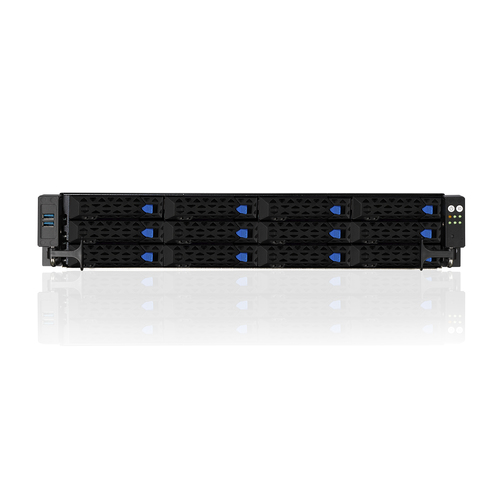

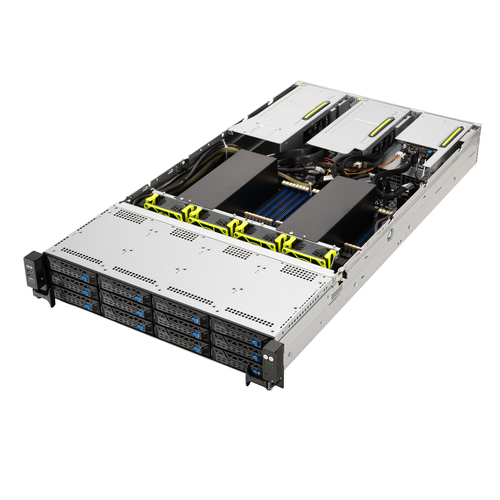

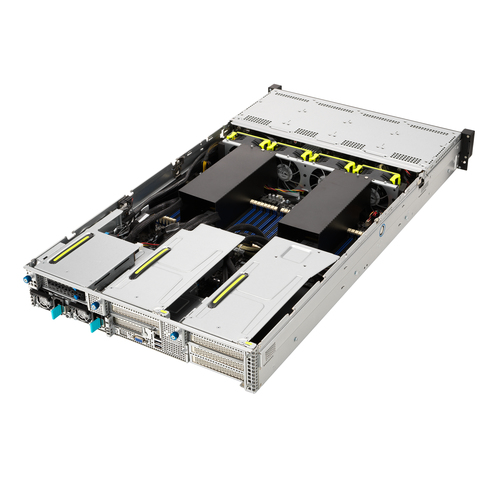

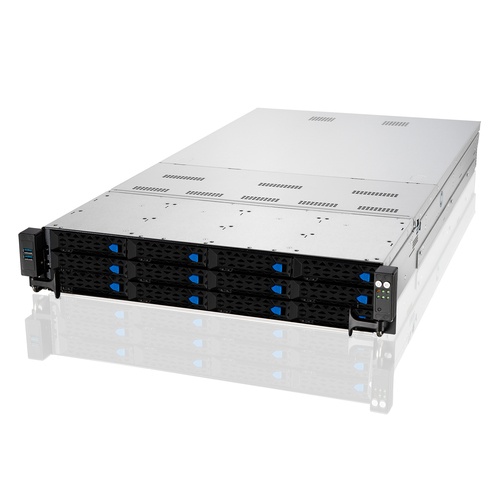

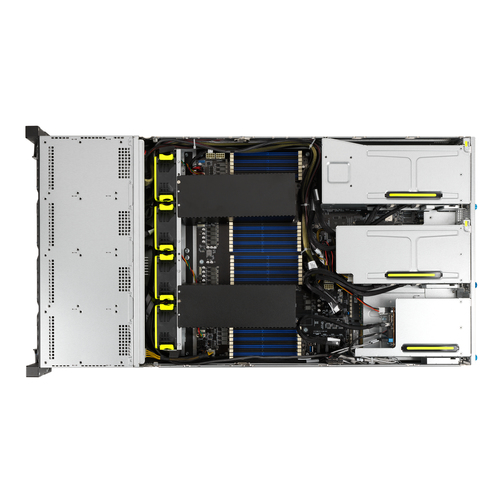

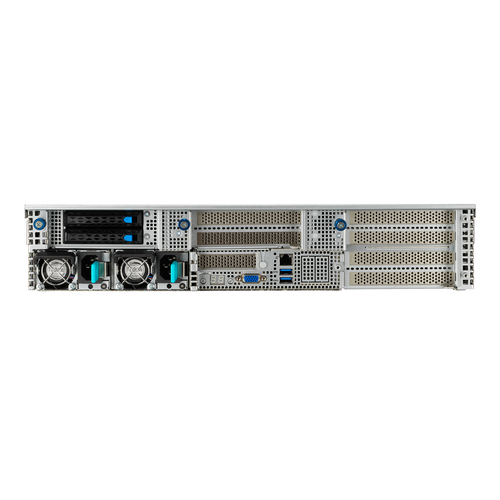

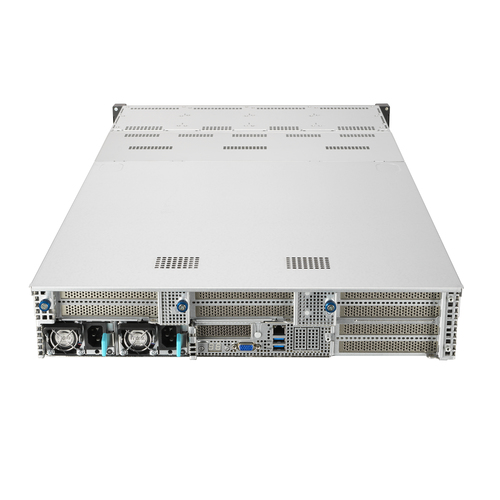

RS720A-E11-RS12 Socket SP3 Rack (2U) Silver
Model RS720A-E11-RS12Part no. 90SF01G5-M003B0EAN 4711081519973
34 specifications
- GraphicsNot available
- Weight18.2 kg
- ColourSilver
- Built-in processorYes
- Number of DIMM slots32
- Number of storage drives supported10
Overview
- Graphics
- Not available
- Weight
- 18.2 kg
- Colour
- Silver
- Built-in processor
- Yes
- Number of DIMM slots
- 32
- Number of storage drives supported
- 10
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS720A-E11-RS12
- Part numbers
- 90SF01G5-M003B0, 90SF01G5-M008P0
- EAN / UPC
- 4711081519973, 4711081838869
- Also known as
- ASUS RS720A-E11-RS12 Socket SP3 Rack (2U) Silver
Specifications
34 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor socket | Socket SP3 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 32 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128MB |
| Supported RDIMM clock speeds | 2933,3200 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 10 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 12 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express, Serial ATA III, Serial Attached SCSI (SAS) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Power supply | 1600 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 449 mm |
| Height | 88.1 mm |
| Weight | 18.2 kg |
| Width | 840 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 23.2 kg |
