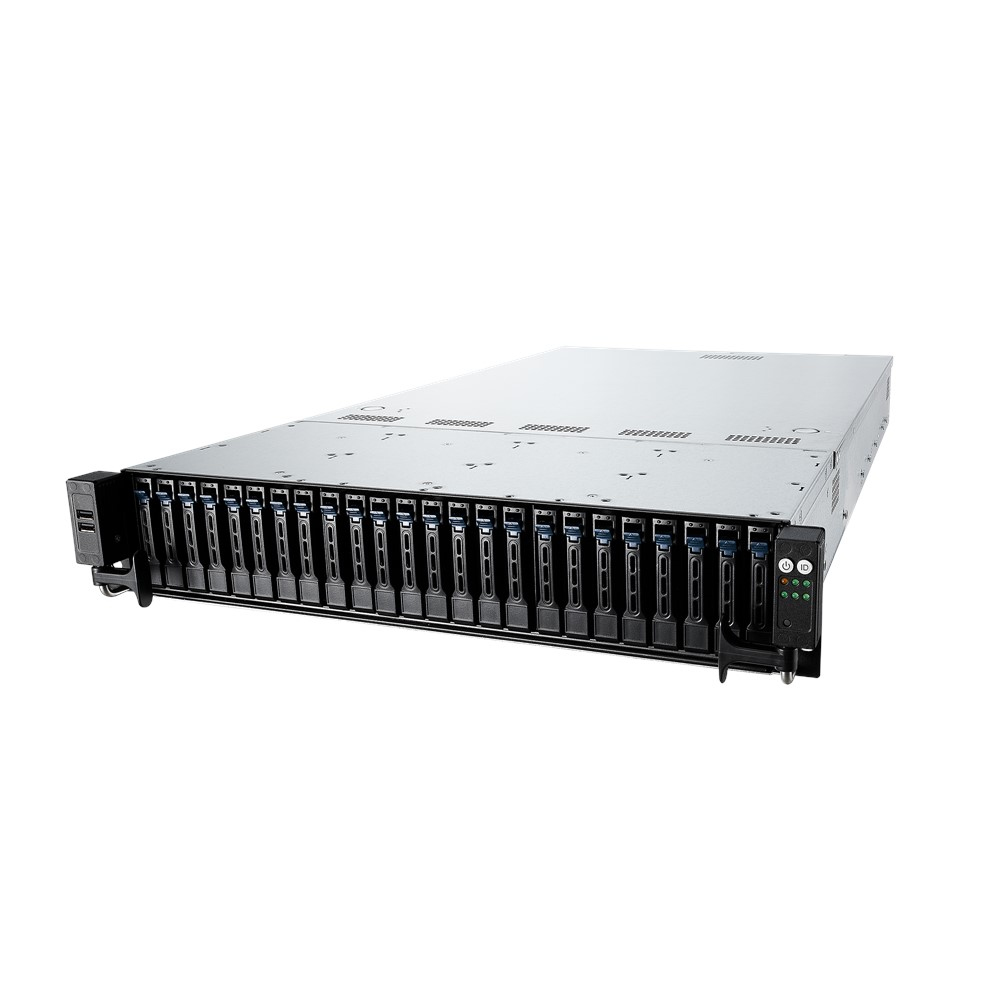

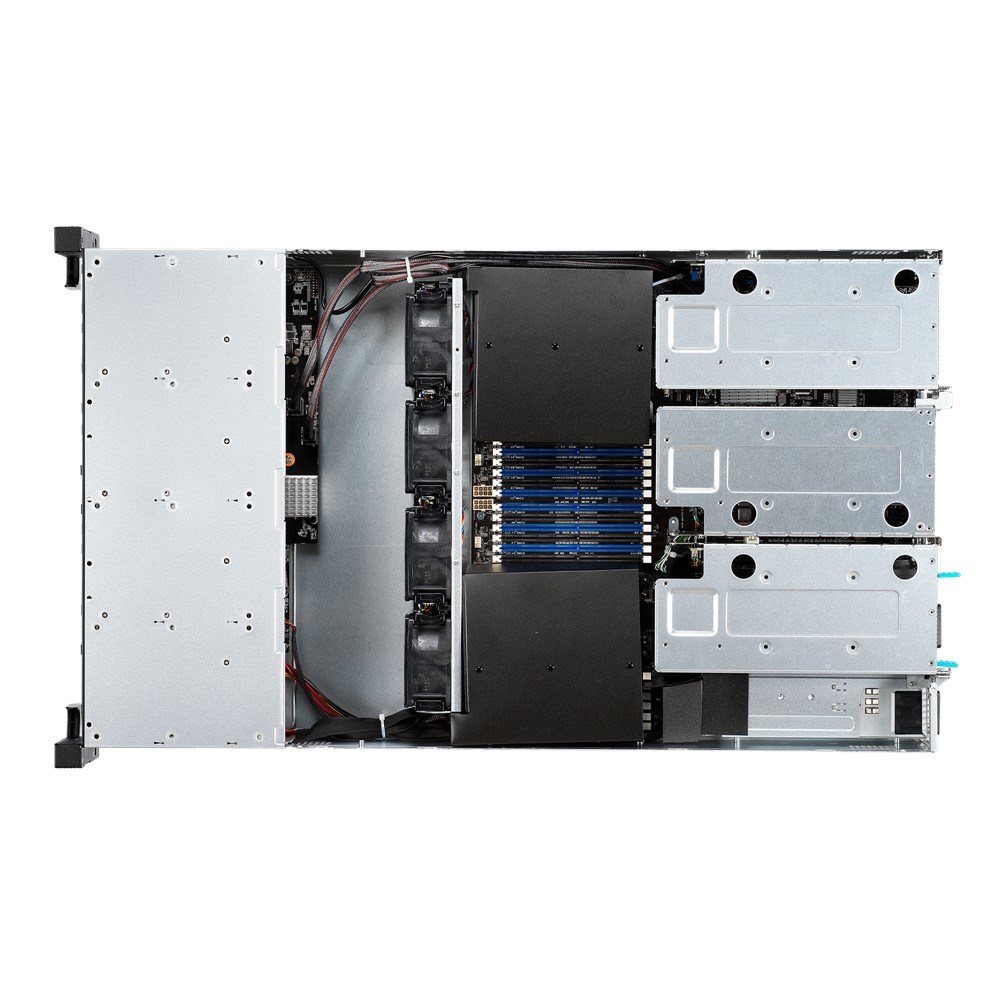

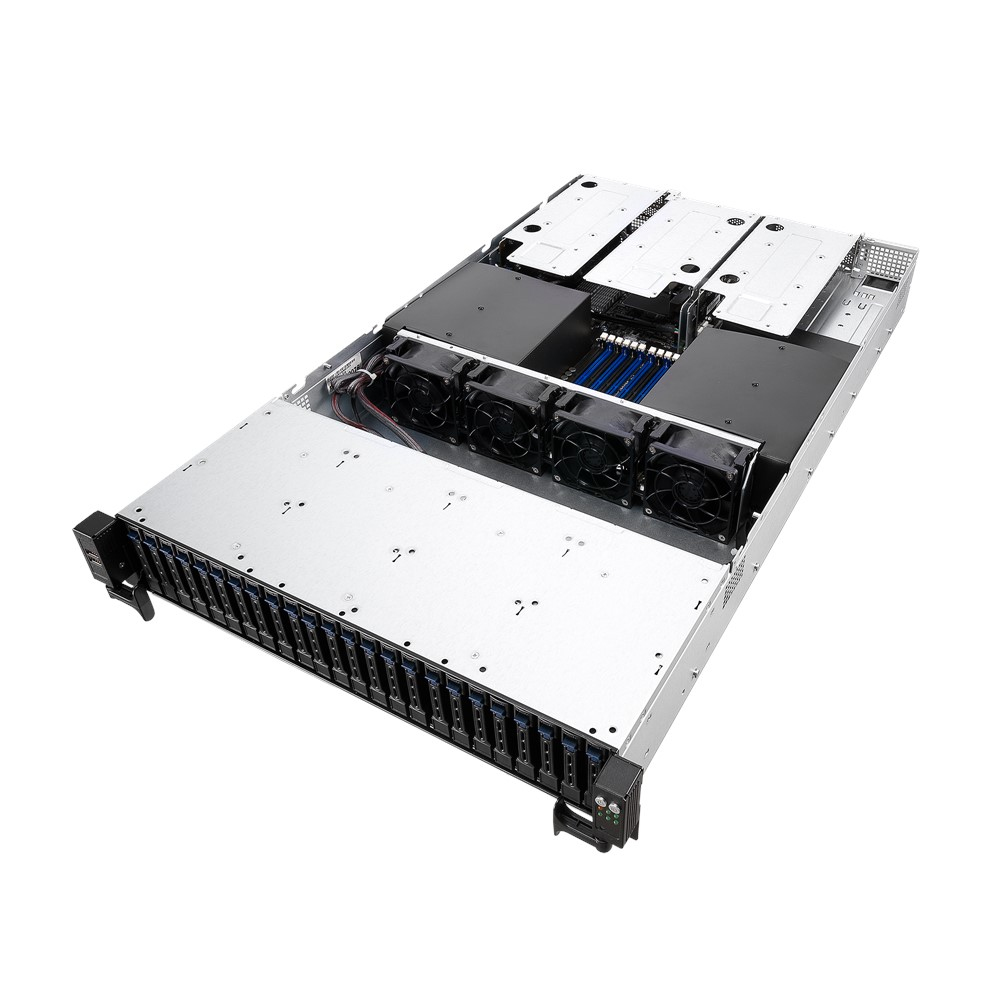

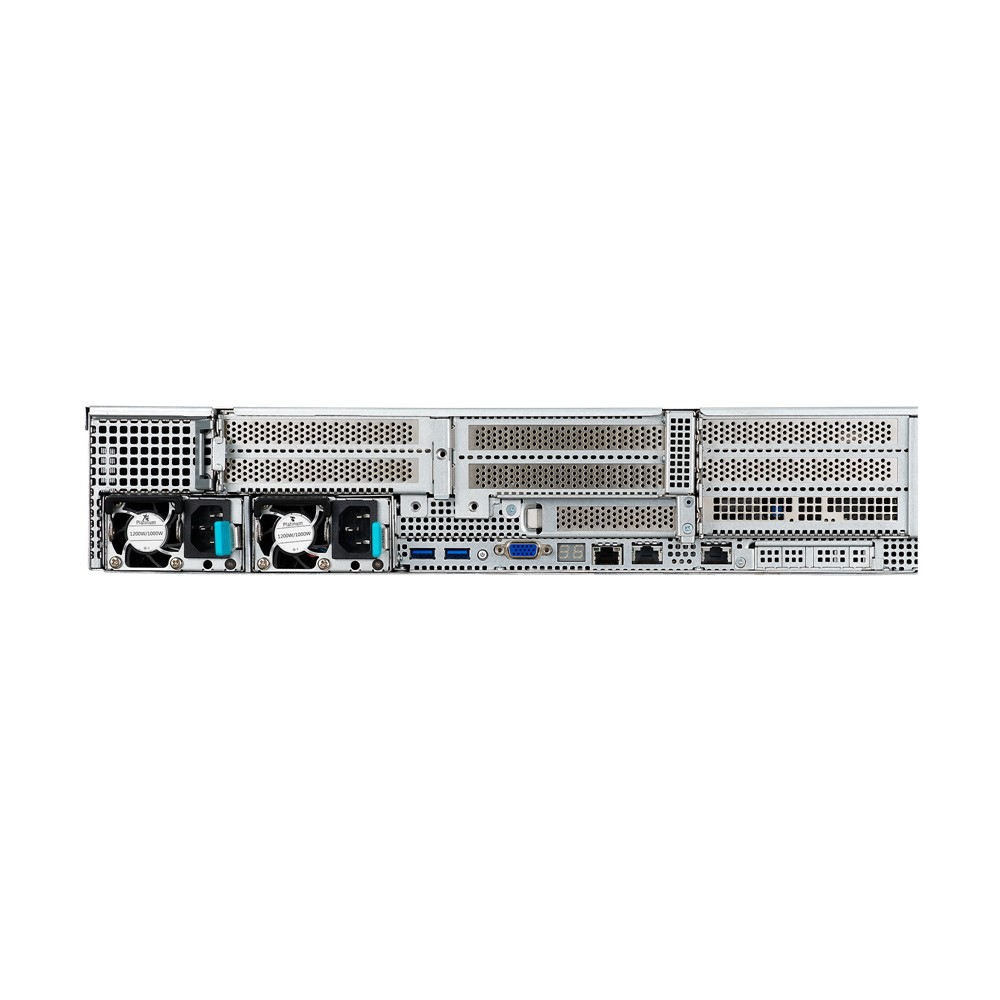

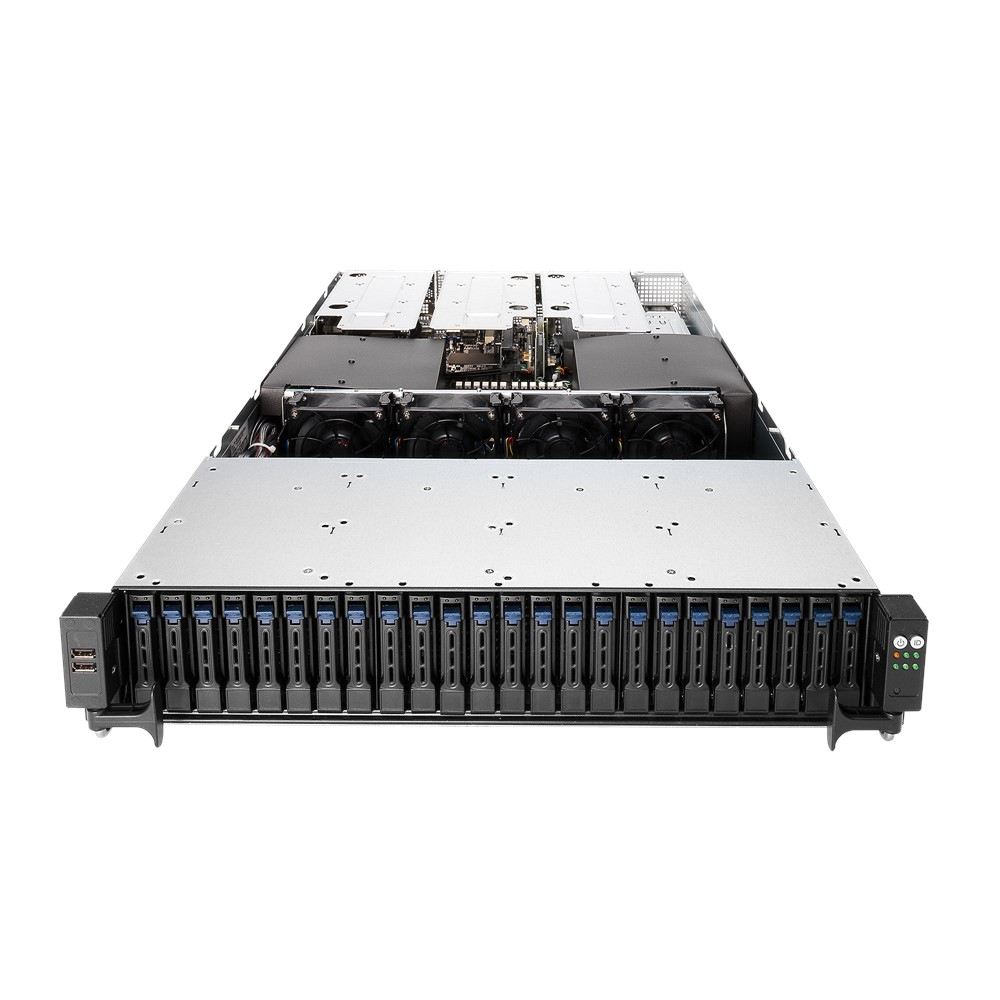

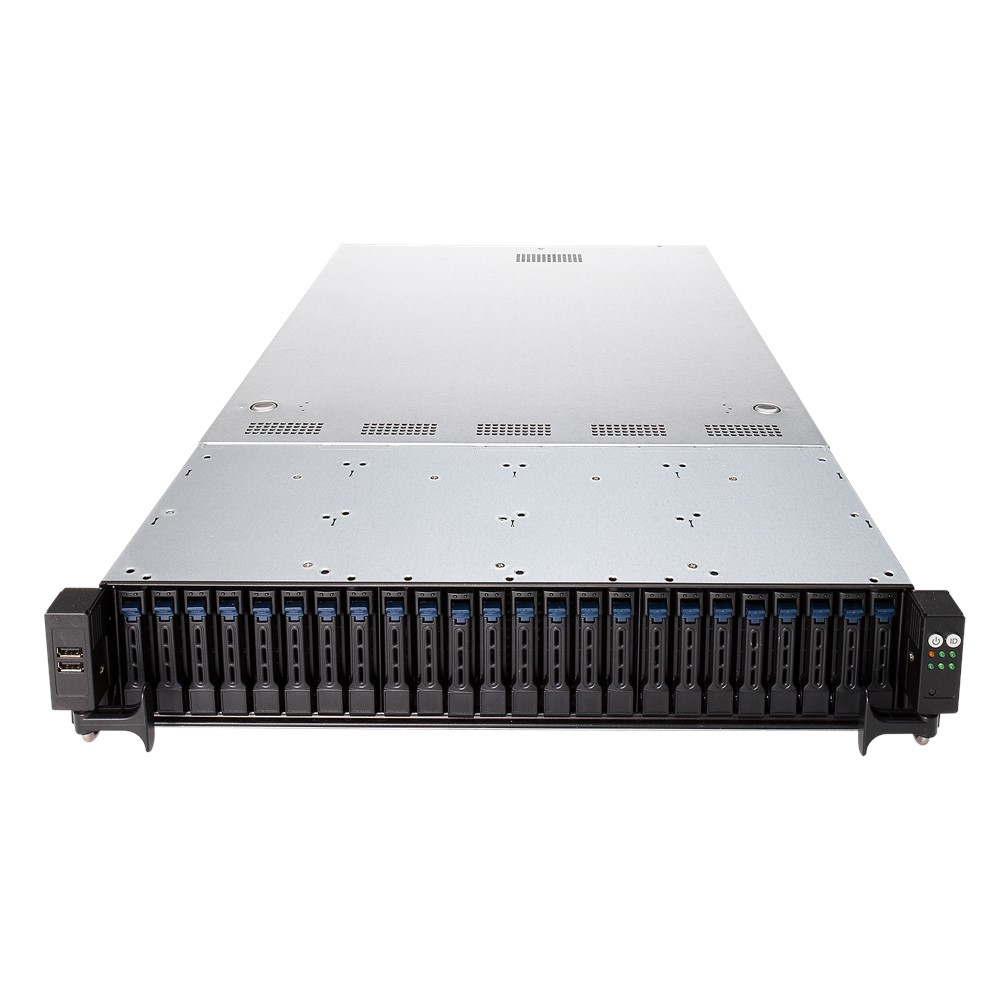

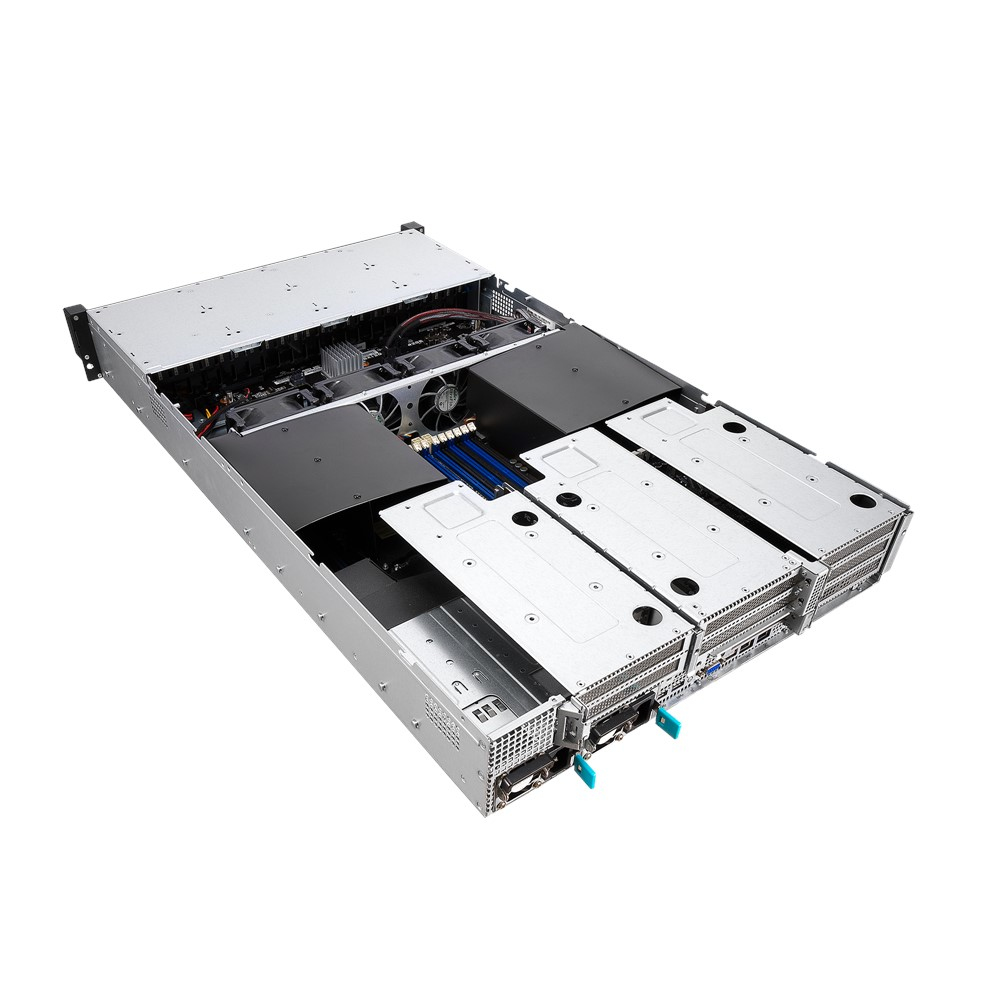

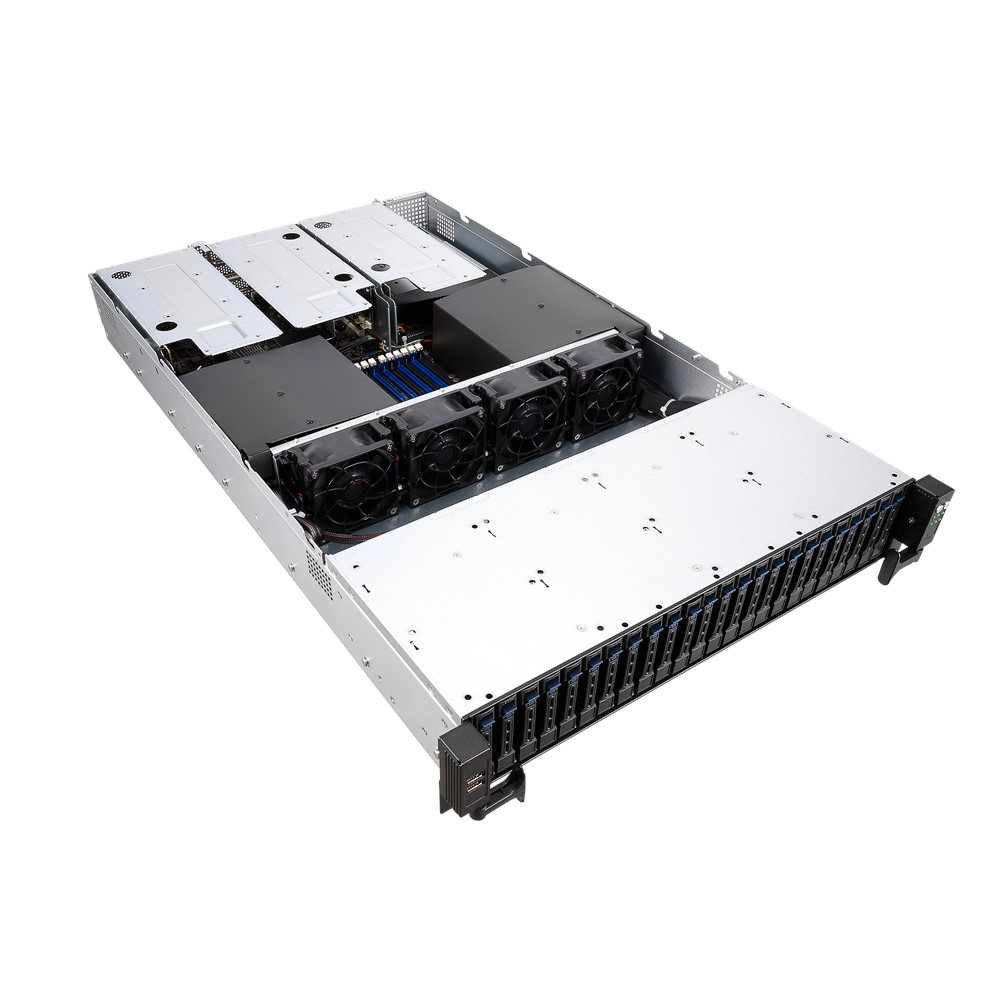

RS720-E9-RS24-E Intel® C621 LGA 3647 (Socket P) Rack (2U) Black, Grey
Model RS720-E9-RS24-EPart no. 90SF0081-M02660EAN 4718017363631
37 specifications
- ColourBlack, Grey
- Built-in processorNo
- Number of DIMM slots24
- On-board graphics card modelAspeed AST2500
- Ethernet LANYes
- USB 2.0 ports quantity2
Overview
- Colour
- Black, Grey
- Built-in processor
- No
- Number of DIMM slots
- 24
- On-board graphics card model
- Aspeed AST2500
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS720-E9-RS24-E
- Part numbers
- 90SF0081-M02660, 90SF0081-M02280
- EAN / UPC
- 4718017363631, 4718017307185
- Also known as
- ASUS RS720-E9-RS24-E Intel® C621 LGA 3647 (Socket P) Rack (2U) Black, Grey
Specifications
37 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel® C621 |
| Processor socket | LGA 3647 (Socket P) |
| Number of processors supported | 2 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 4GB, 8GB, 16GB, 32GB, 64GB |
| Maximum RDIMM memory | 3 TB |
| Supported RDIMM clock speeds | 2666,2933 MHz |
| Memory channels | Penta-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 24 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 24 |
| Storage drive sizes supported | 2.5" |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of M.2 (M) slots | 2 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Processor special features
| Specification | Value |
|---|---|
| Intel® Optane™ Memory Ready | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Grey |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Input current | 10/5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 444 mm |
| Height | 88 mm |
| Width | 750 mm |
