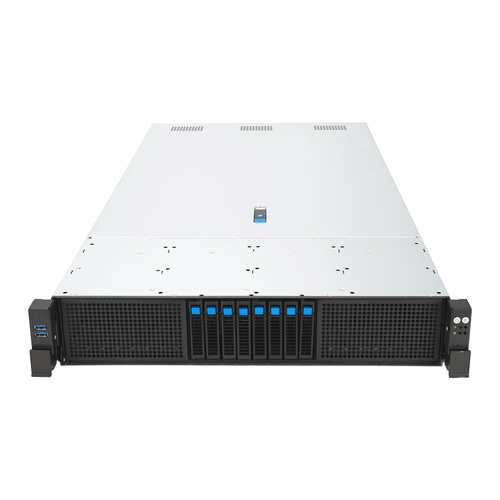

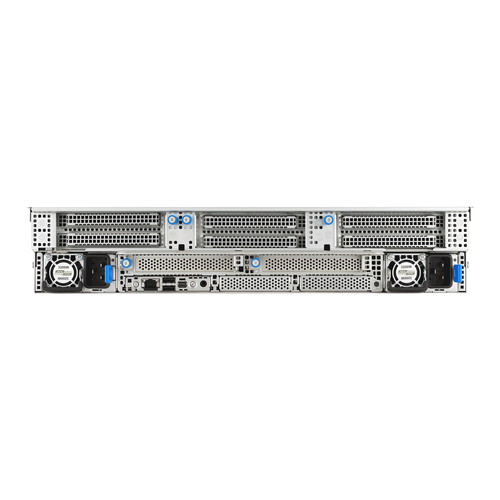

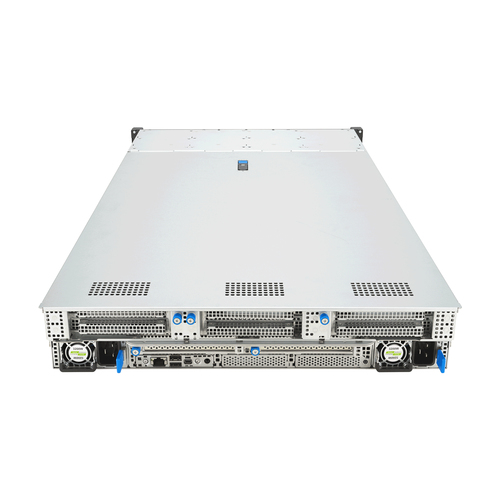

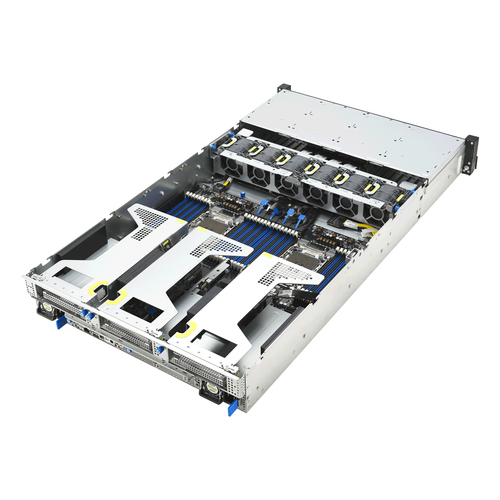

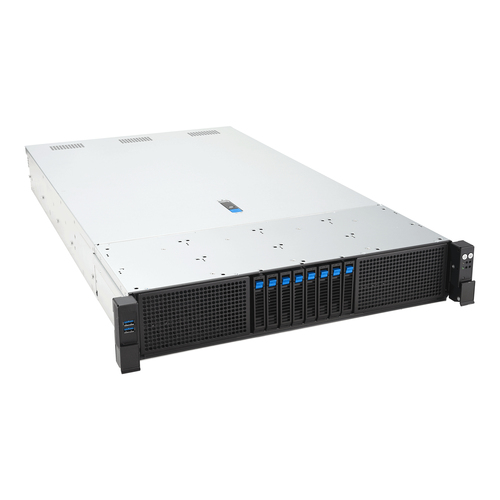

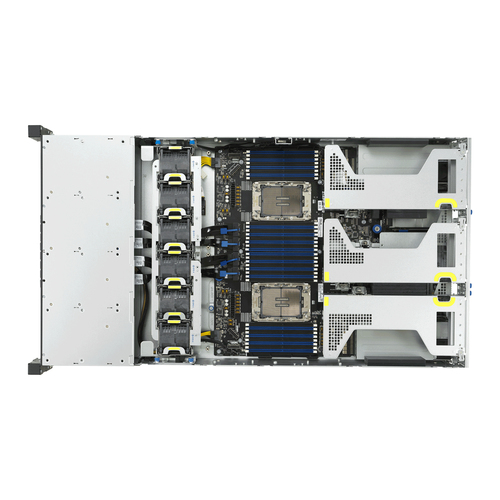

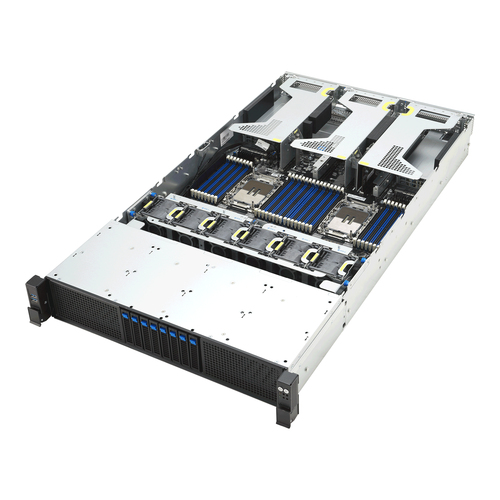

RS720-E12-RS8G Rack (2U) Black, Silver
Model RS720-E12-RS8GPart no. 90SF03T1-M000H0EAN 4711636059244
45 specifications
- ProcessorIntel® Xeon® Scalable
- Weight17.8 kg
- ColourBlack, Silver
- Built-in processorNo
- Number of DIMM slots32
- Number of storage drives supported8
Overview
- Processor
- Intel® Xeon® Scalable
- Weight
- 17.8 kg
- Colour
- Black, Silver
- Built-in processor
- No
- Number of DIMM slots
- 32
- Number of storage drives supported
- 8
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS720-E12-RS8G
- Part number
- 90SF03T1-M000H0
- EAN / UPC
- 4711636059244
- Also known as
- ASUS RS720-E12-RS8G Rack (2U) Black, Silver
Specifications
45 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Scalable |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 32 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB, 256GB |
| Maximum internal memory | 4 TB |
| Supported RDIMM clock speeds | 6400 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 8 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Mini DisplayPorts quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 5.0 |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 2 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
| LED indicators | Yes |
| On/off switch | Yes |
| Cooling type | Active |
| Number of fans | 6 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 3200 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| AC input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 830 mm |
| Height | 88 mm |
| Weight | 17.8 kg |
| Width | 449 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 21.3 kg |
