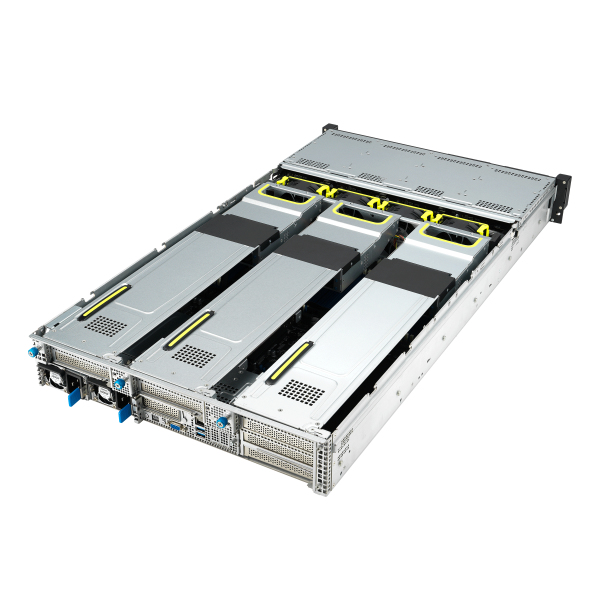

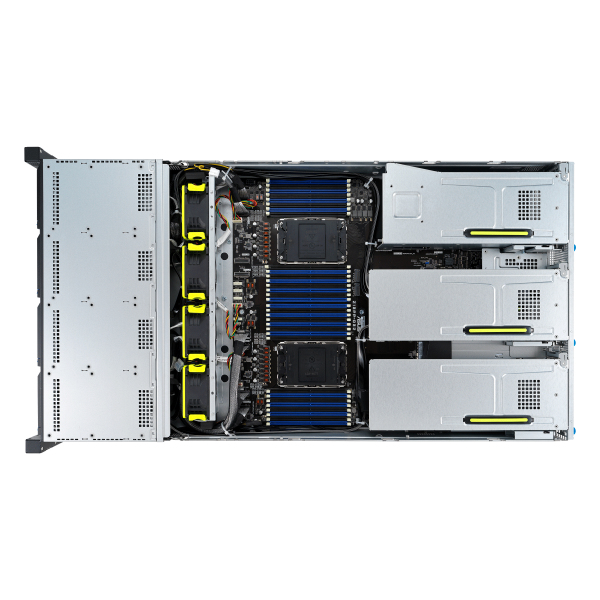

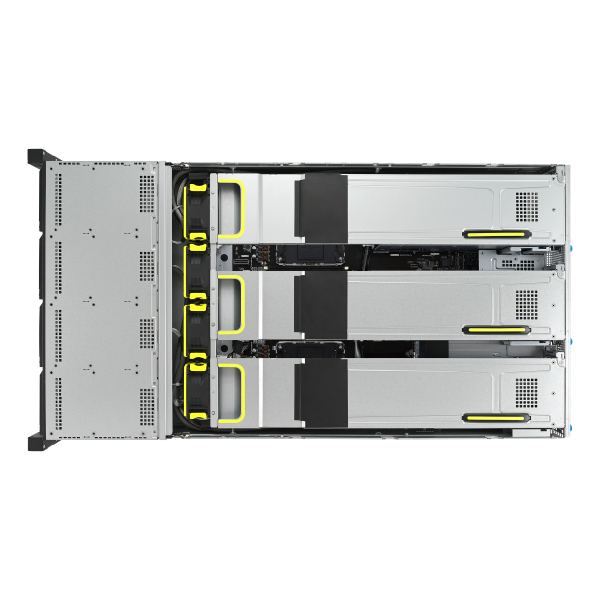

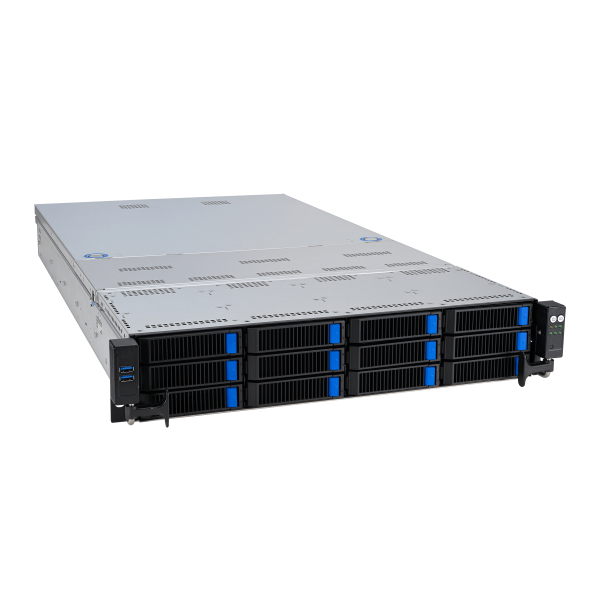

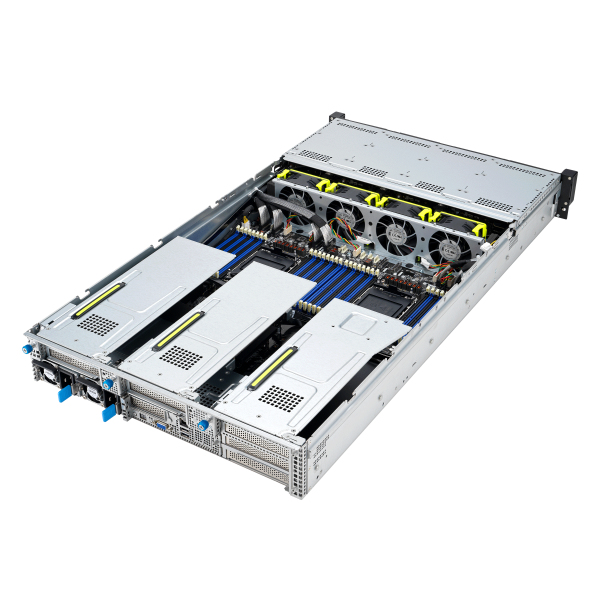

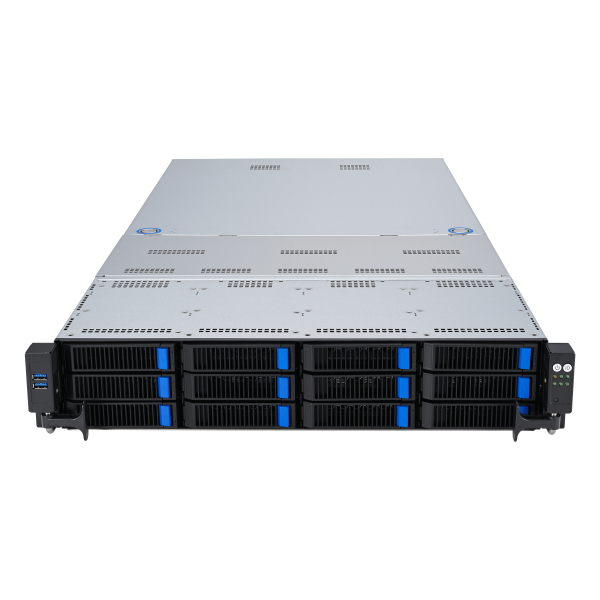

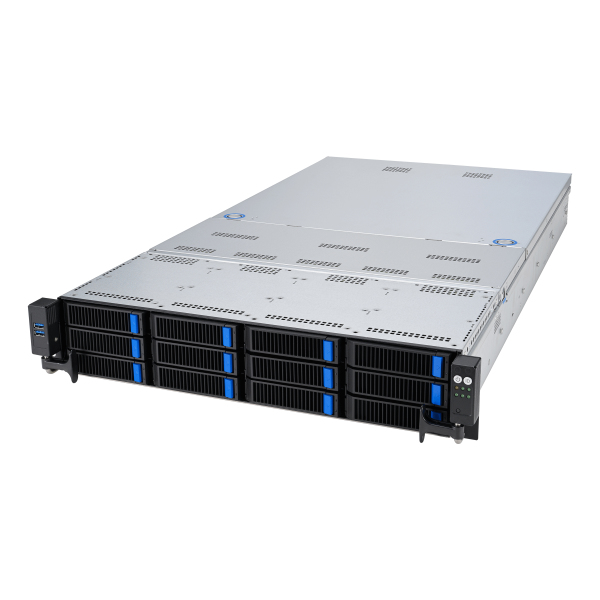

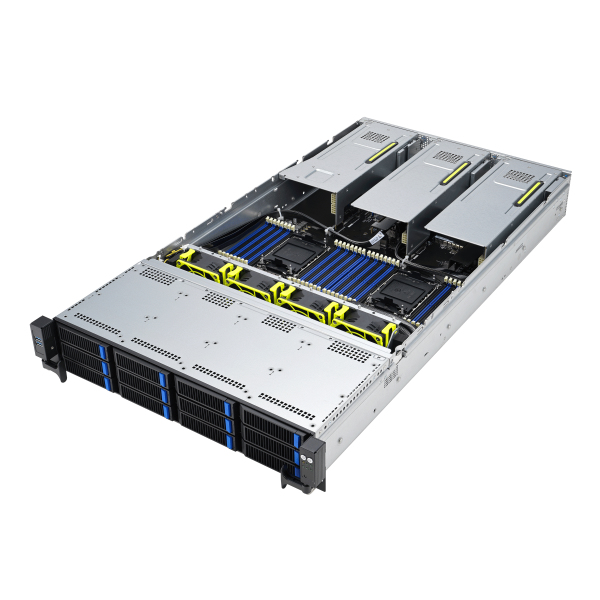

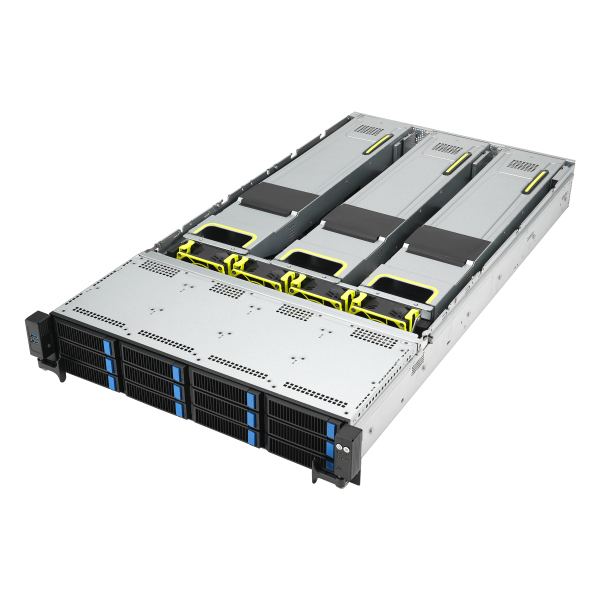

RS720-E11-RS12U Intel C741 Rack (2U) Black, Steel
Model RS720-E11-RS12UPart no. 90SF01Z1-M00180EAN 4711387171837
39 specifications
- ProcessorIntel® Xeon® Scalable
- Weight26.9 kg
- ColourBlack, Steel
- Built-in processorNo
- Number of DIMM slots32
- Number of storage drives supported20
Overview
- Processor
- Intel® Xeon® Scalable
- Weight
- 26.9 kg
- Colour
- Black, Steel
- Built-in processor
- No
- Number of DIMM slots
- 32
- Number of storage drives supported
- 20
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS720-E11-RS12U
- Part numbers
- 90SF01Z1-M00180, 90SF01Z1-M00260, 90SF01Z1-M00270
- EAN / UPC
- 4711387171837, 4711387103463, 4711387171820
- Also known as
- ASUS RS720-E11-RS12U Intel C741 Rack (2U) Black, Steel
Specifications
39 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C741 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Scalable |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 32 |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 20 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
| Maximum graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| LAN controller | Intel® I350-AM4, Intel X710-AT2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 5.0 |
| PCI Express x8 slots | 6 |
| PCI Express x16 slots | 1 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Steel |
| LED indicators | Yes |
| Cooling type | Active |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 1600 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| 80 PLUS certification | 80 PLUS Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 840 mm |
| Height | 88 mm |
| Weight | 26.9 kg |
| Width | 447 mm |
