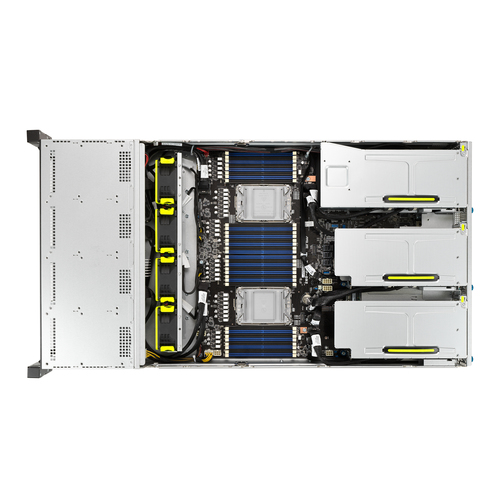

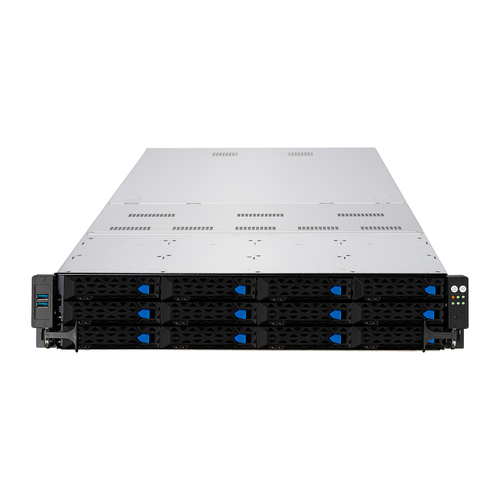

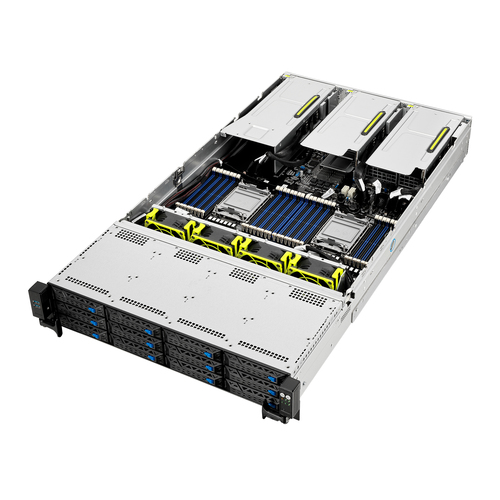

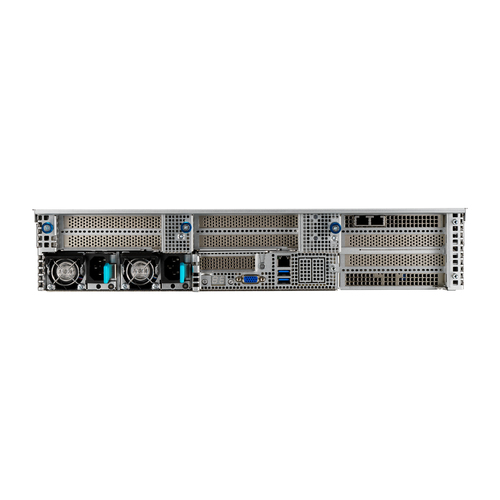

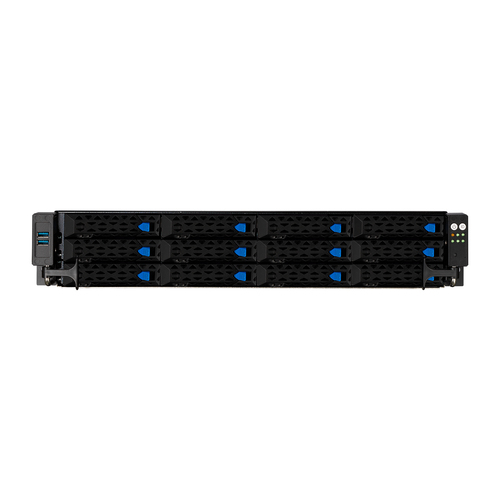

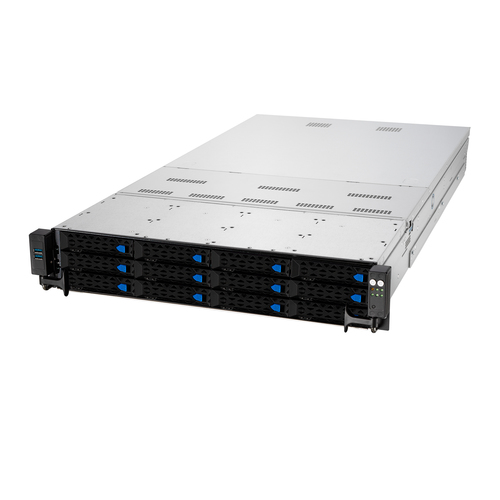

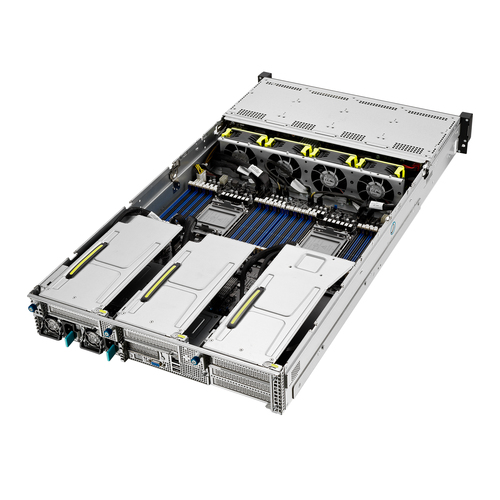

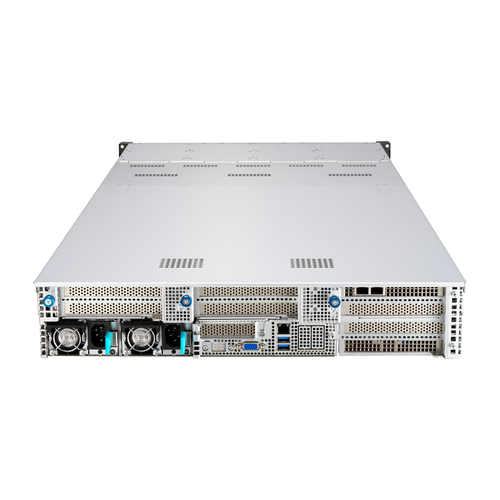

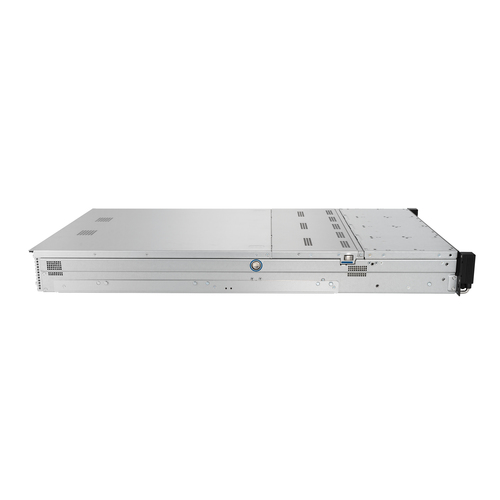

ASUS RS720-E10-RS12 Intel C621A LGA 4189 Rack (2U) Black
ASUS

RS720-E10-RS12 Intel C621A LGA 4189 Rack (2U) Black

Model RS720-E10-RS12Part no. 90SF00Z5-M001R0EAN 4711081520047

47 specifications
  • ProcessorIntel® Xeon® Scalable
  • Weight18.2 kg
  • ColourBlack
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported12
See all specifications

Overview

Processor
Intel® Xeon® Scalable
Weight
18.2 kg
Colour
Black
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
12
Brand
ASUS
Model
RS720-E10-RS12
Part numbers
90SF00Z5-M001R0, 90SF00Z8-M00CL0
EAN / UPC
4711081520047, 4711081860709
Also known as
ASUS RS720-E10-RS12 Intel C621A LGA 4189 Rack (2U) Black

Specifications

47 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C621A
Processor socketLGA 4189
Processor manufacturerIntel
Processor familyIntel® Xeon® Scalable
Number of processors supported2

Memory

Number of DIMM slots32
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities8GB, 16GB, 32GB, 64GB, 128GB
Maximum internal memory6 TB
Maximum RDIMM memory256 GB
Supported RDIMM clock speeds2933,3200 MHz

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Storage drive sizes supported2.5,3.5,M.2
Supported storage drive interfacesM.2, Serial ATA, Serial Attached SCSI (SAS)
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2600
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports3
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x8 slots8
PCI Express x16 slots1
Number of M.2 (M) slots2

Processor special features

Intel® Optane™ Memory ReadyYes

Design

Chassis typeRack (2U)
Product colourBlack
LED indicatorsHDD, LAN, Notification, Power, Yes
On/off switchYes
Reset buttonYes

Power

Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth840 mm
Height88 mm
Weight18.2 kg
Width449 mm
