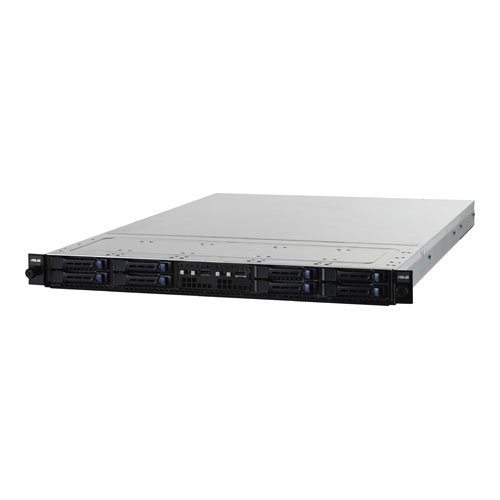

RS700D-E6/PS8 Intel® 5500 Socket B (LGA 1366) Rack (1U)
Model RS700D-E6/PS8Part no. 90S56A0000C010UEZEAN 4719543050170
28 specifications
- ProcessorIntel
- Weight16.5 kg
- Motherboard chipsetIntel® 5500
- Number of DIMM slots12
- Number of storage drives supported4
- Maximum graphics card memory8 MB
Overview
- Processor
- Intel
- Weight
- 16.5 kg
- Motherboard chipset
- Intel® 5500
- Number of DIMM slots
- 12
- Number of storage drives supported
- 4
- Maximum graphics card memory
- 8 MB
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS700D-E6/PS8
- Part numbers
- 90S56A0000C010UEZ, 90S56A0000C350UET, 90S-S56001CEZ, RS700D-E6/PS8, RS700D-E6-PS8
- EAN / UPC
- 4719543050170, 4719543691342, 610839680603, 4719543365793
- Also known as
- ASUS RS700D-E6/PS8 Intel® 5500 Socket B (LGA 1366) Rack (1U)
Specifications
28 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 5500 |
| Processor socket | Socket B (LGA 1366) |
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 12 |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Storage controller | Intel ICH10R |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | - Windows Server 2008 Enterprise 32/64-bit, - Windows Server 2003 Enterprise R2 SP2 32/64-bit, - RedHat Enterprise Linux AS5.0 (32/64 bit), - SuSE Linux Enterprise Server 10 (32/64 bit) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Power
| Specification | Value |
|---|---|
| Power supply | 770 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 444 mm |
| Height | 43.4 mm |
| Weight | 16.5 kg |
| Width | 686 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
