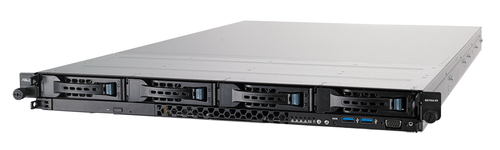

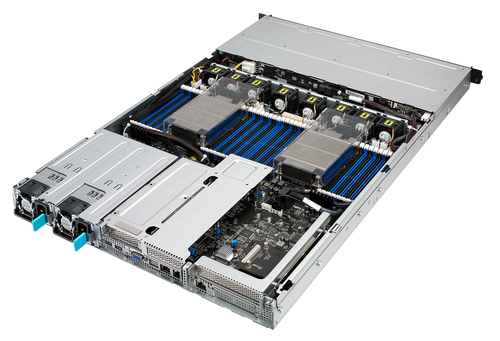

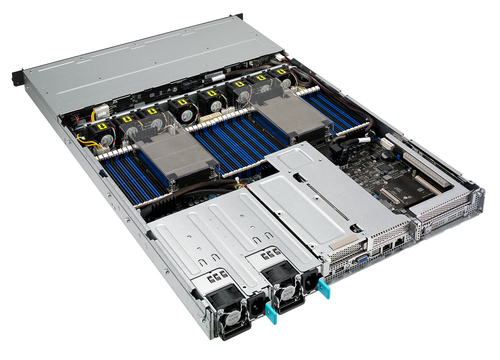

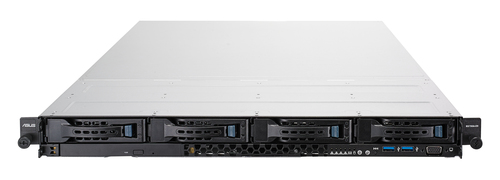

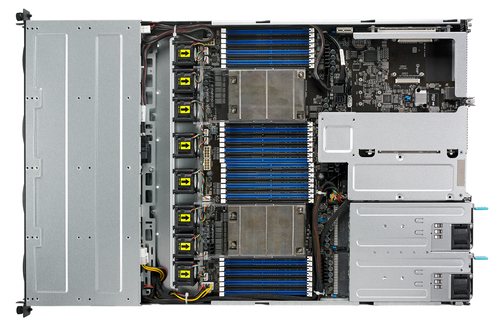

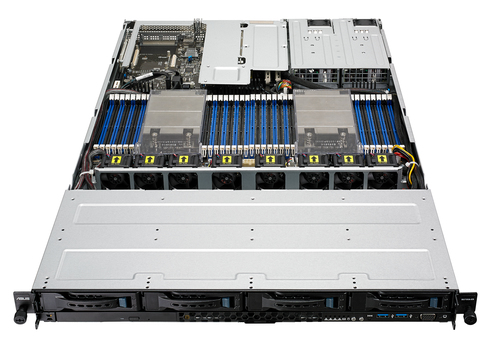

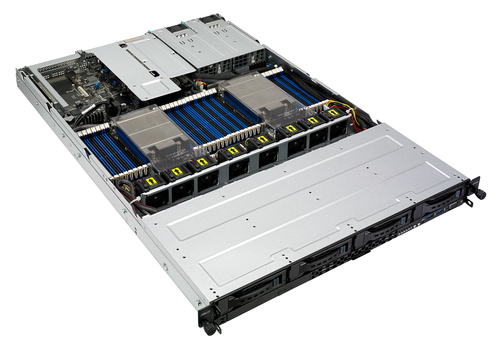

RS700A-E9-RS4 Socket SP3 Rack (1U) Silver
Model RS700A-E9-RS4Part no. 90SF0061-M01590EAN 4718017555524
42 specifications
- ProcessorAMD EPYC
- GraphicsNot available
- Weight11.8 kg
- ColourSilver
- Built-in processorNo
- Number of DIMM slots32
Overview
- Processor
- AMD EPYC
- Graphics
- Not available
- Weight
- 11.8 kg
- Colour
- Silver
- Built-in processor
- No
- Number of DIMM slots
- 32
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS700A-E9-RS4
- Part number
- 90SF0061-M01590
- EAN / UPC
- 4718017555524
- Also known as
- ASUS RS700A-E9-RS4 Socket SP3 Rack (1U) Silver
Specifications
42 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP3 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 32 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 8GB, 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory | 4 TB |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 6 |
| Hot-swap HDD bays | Yes |
| Number of 3.5" bays | 4 |
| Storage drive sizes supported | 3.5,M.2 |
| Supported storage drive interfaces | M.2, Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
| Discrete graphics card memory | 0.064 GB |
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Silver |
| Certification | BSMI, CE, C-Tick, FCC(Class A) |
Power
| Specification | Value |
|---|---|
| Power supply | 800 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies installed | 2 |
| AC input frequency | 50 - 60 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 444 mm |
| Height | 44 mm |
| Weight | 11.8 kg |
| Width | 686 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 16.1 kg |
