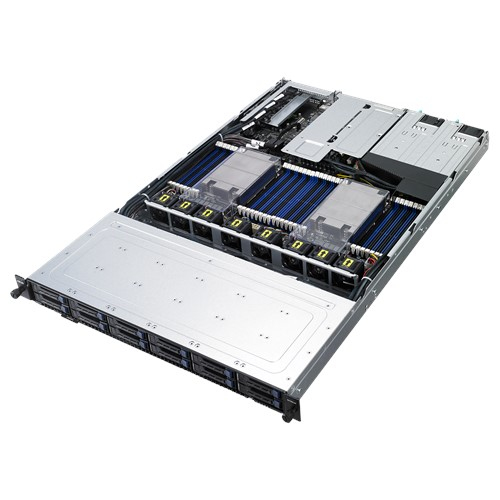

ASUS RS700A-E9-RS12V2 Rack (1U) Black, Grey
ASUS

RS700A-E9-RS12V2 Rack (1U) Black, Grey

Model RS700A-E9-RS12V2Part no. 90SF0061-M01580EAN 4718017553223

45 specifications
  • Weight12.2 kg
  • ColourBlack, Grey
  • Number of processors supported1
  • Number of DIMM slots32
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Weight
12.2 kg
Colour
Black, Grey
Number of processors supported
1
Number of DIMM slots
32
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2500
Brand
ASUS
Model
RS700A-E9-RS12V2
Part numbers
90SF0061-M01580, 90SF0061-M01880
EAN / UPC
4718017553223, 4718017635196
Also known as
ASUS RS700A-E9-RS12V2 Rack (1U) Black, Grey

Specifications

45 specifications in 13 groups

Processor

Number of processors supported1
Compatible processor seriesAMD EPYC

Memory

Number of DIMM slots32
Supported memory typesDDR4-SDRAM
Maximum internal memory4 TB
Supported RDIMM clock speeds2666,2933,3200 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 2.5" bays12
Storage drive sizes supported2.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA III

Graphics

On-board graphics card modelAspeed AST2500
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
Number of SATA III connectors8

Expansion slots

PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2
Number of M.2 (M) slots2

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
Product colourBlack, Grey
LED indicatorsYes
Fan diameter4 cm
Number of fans8 fan(s)
CertificationBSMI, CE, RCM, FCC A

Power

Power supply800 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies installed1
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth444 mm
Height44 mm
Weight12.2 kg
Width686 mm

Packaging data

Package weight15.8 kg
