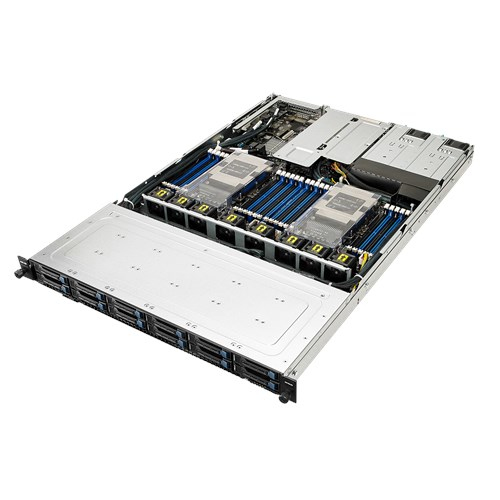

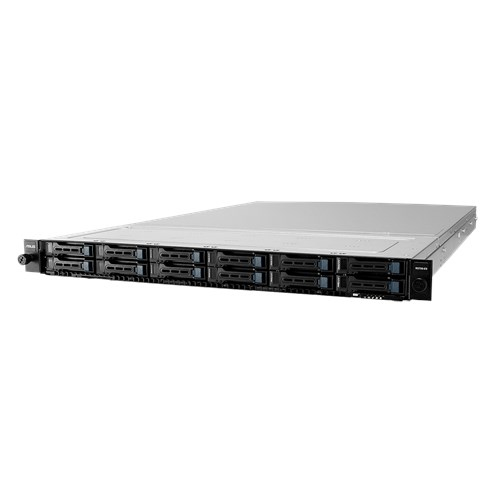

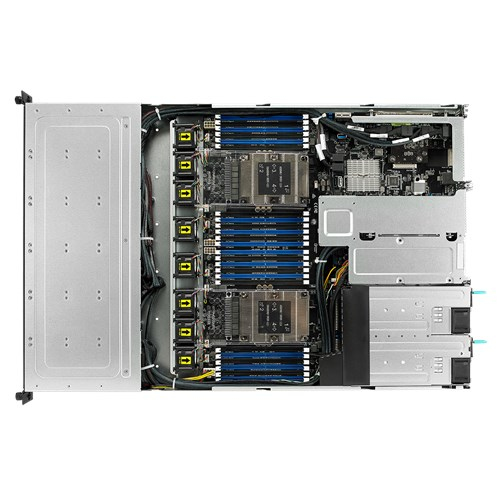

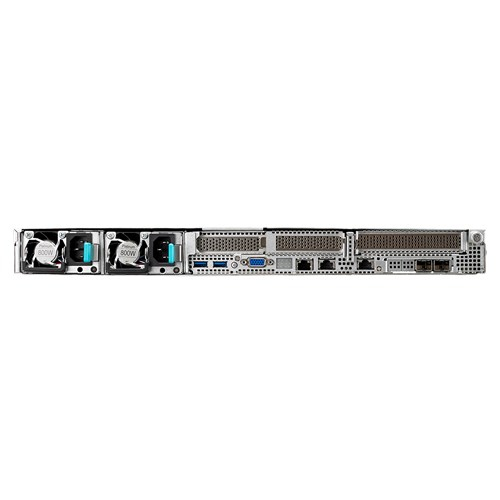

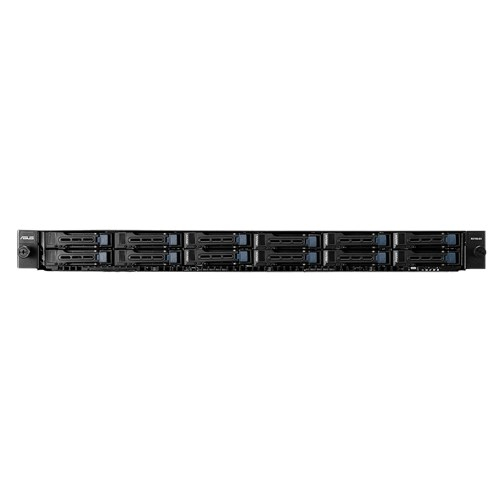

ASUS RS700A-E9-RS12 Socket SP3 Rack (1U) Stainless steel

ASUS RS700A-E9-RS12 Socket SP3 Rack (1U) Stainless steel

Model RS700A-E9-RS12Part no. 90SF0061-M00660EAN 192876221181

50 specifications
  • Weight12.2 kg
  • ColourStainless steel
  • Processor socketSocket SP3
  • Number of DIMM slots24
  • Number of storage drives supported14
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Weight
12.2 kg
Colour
Stainless steel
Processor socket
Socket SP3
Number of DIMM slots
24
Number of storage drives supported
14
On-board graphics card model
Aspeed AST2500
Brand
ASUS
Model
RS700A-E9-RS12
Part number
90SF0061-M00660
EAN / UPC
192876221181, 889349954720, 4718017023894
Also known as
ASUS RS700A-E9-RS12 Socket SP3 Rack (1U) Stainless steel

Specifications

50 specifications in 13 groups

Processor

Processor socketSocket SP3
Processor manufacturerAMD
Number of processors supported2
Compatible processor seriesAMD EPYC 7000

Memory

Number of DIMM slots24
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities4GB, 8GB, 16GB, 32GB, 64GB
Maximum RDIMM memory3 TB
Supported RDIMM clock speeds2400,2666 MHz
Supported UDIMM clock speeds2400 MHz

Storage

Number of storage drives supported14
Hot-swap HDD baysYes
Storage drive sizes supported3.5"
Supported storage drive interfacesSerial Attached SCSI (SAS), Serial ATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2500
On-board graphics card memory64 MB

Network

Ethernet LANYes
LAN controllerIntel I350-BT2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports3
VGA (D-Sub) ports quantity2
Number of SATA III connectors10

Expansion slots

PCI Express x8 slots1
PCI Express x16 slots2

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
Product colourStainless steel
LED indicatorsYes
Rack railsYes
Heat sink includedYes
Redundant fans supportYes
CertificationRegulatory Compliance

Power

Power supply800 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Input current9.4 A
DC output current (+5 V)3.5 A
DC output current (+12 V)3.5 A

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth686 mm
Height44 mm
Weight12.2 kg
Width444 mm

Packaging data

Package weight15.8 kg
