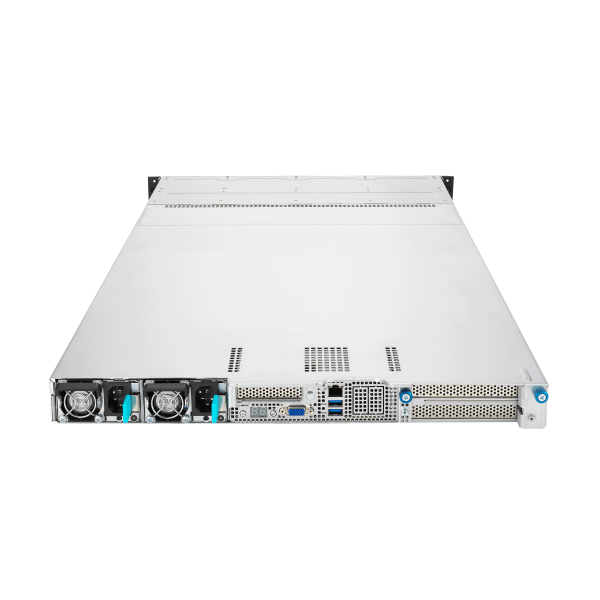

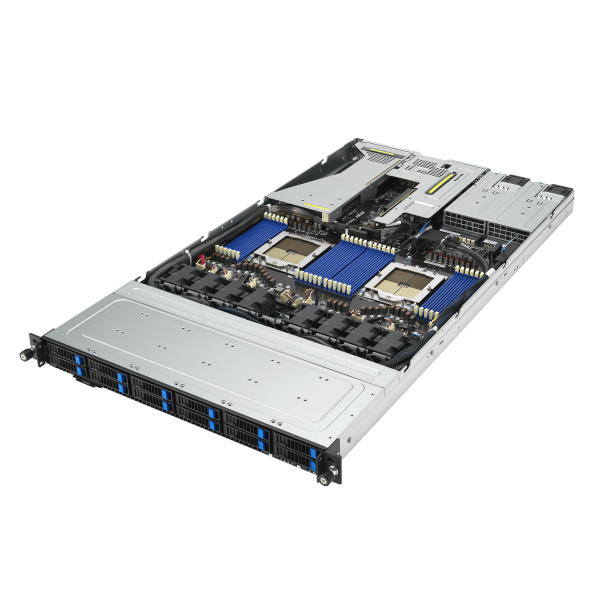

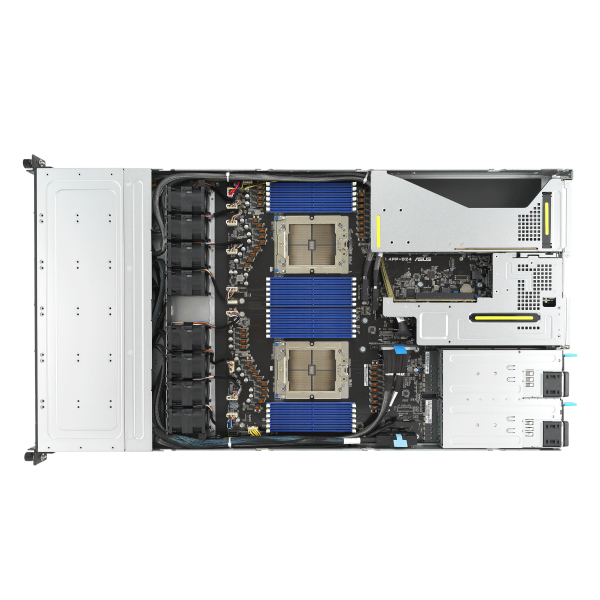

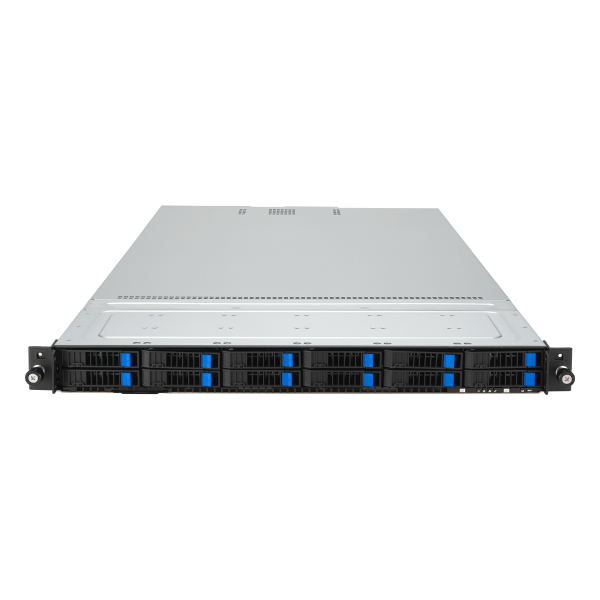

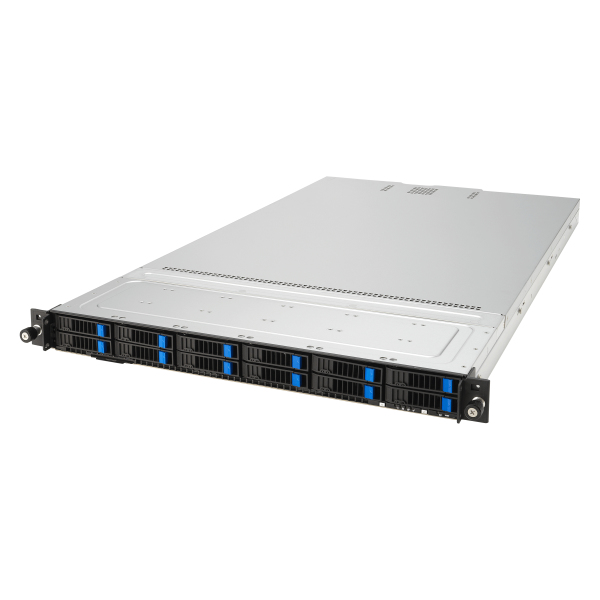

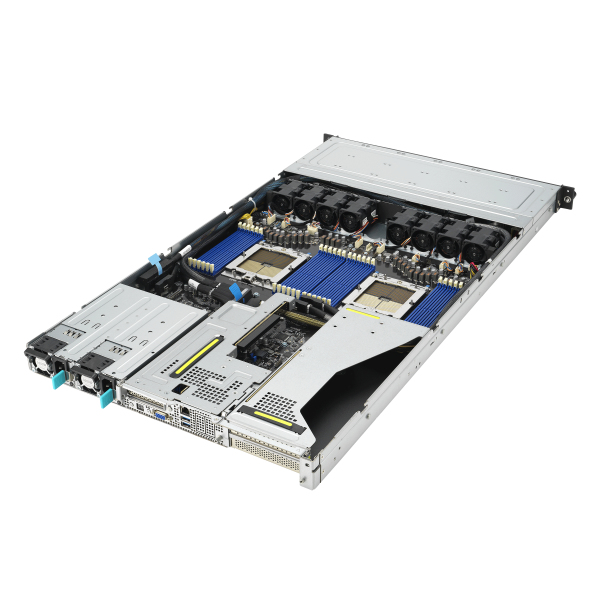

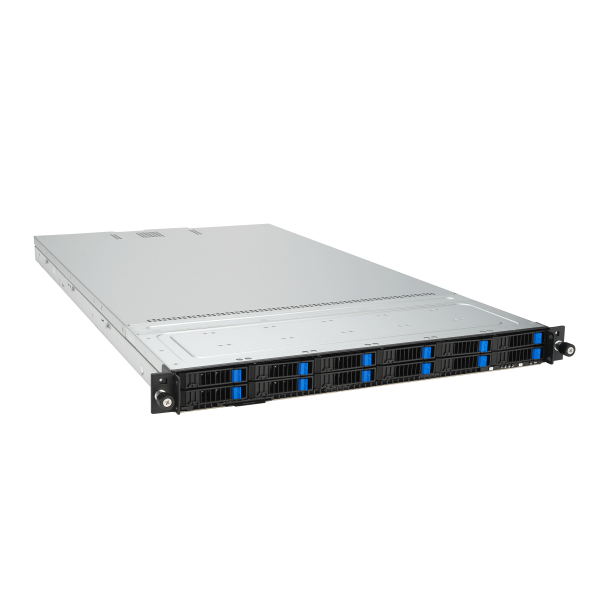

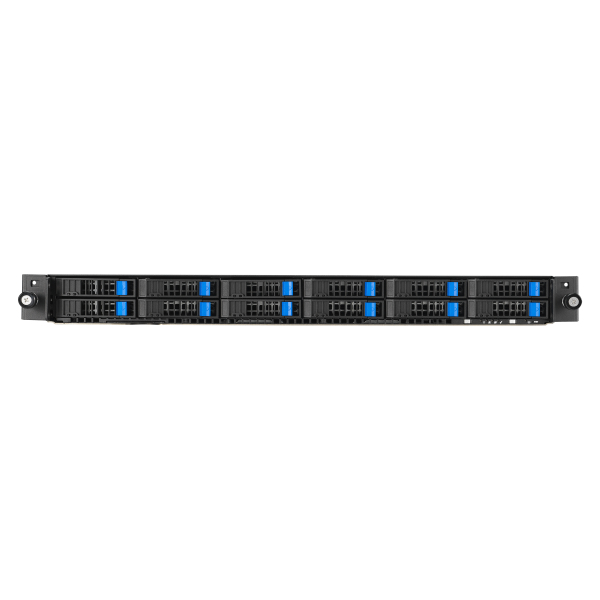

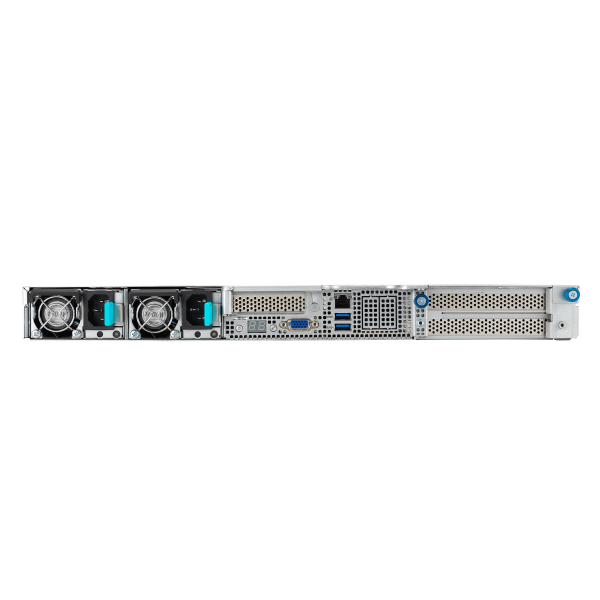

RS700A-E12-RS12U Socket SP5 Rack (1U) Black, Steel
Model RS700A-E12-RS12UPart no. 90SF02D1-M002D0EAN 4711387128862
53 specifications
- ProcessorAMD
- Weight14.9 kg
- ColourBlack, Steel
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported14
Overview
- Processor
- AMD
- Weight
- 14.9 kg
- Colour
- Black, Steel
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 14
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS700A-E12-RS12U
- Part numbers
- 90SF02D1-M002D0, 90SF02D1-M006Z0
- EAN / UPC
- 4711387128862, 4711387414620
- Also known as
- ASUS RS700A-E12-RS12U Socket SP5 Rack (1U) Black, Steel
Specifications
53 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Processor family | AMD |
| Compatible processor series | AMD EPYC 9004 |
| AMD Opteron series | 9000 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 32GB, 64GB, 128MB |
| Maximum RDIMM memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 14 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | M.2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| LAN controller | Intel® I350-AM4, Intel X710-AT2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0, 5.0 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
Features
| Specification | Value |
|---|---|
| Integrated BMC with IPMI | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| LED indicators | Yes |
| Cooling type | Active |
| Certification | BSMI, CE, CB, C-Tick, FCC |
Power
| Specification | Value |
|---|---|
| Power supply | 1600 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 842.5 mm |
| Height | 43.9 mm |
| Weight | 14.9 kg |
| Width | 449 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 19.9 kg |
