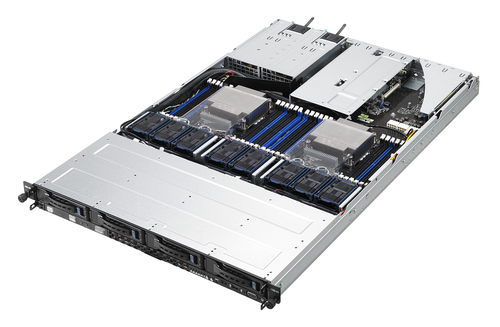

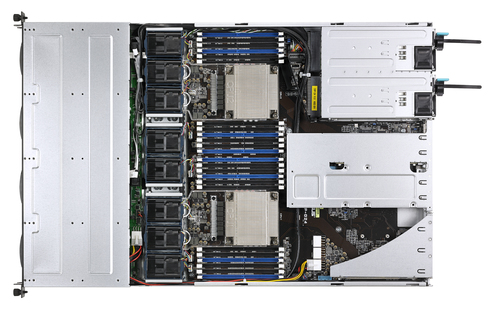

ASUS RS700-E8-RS4 Intel® C612 LGA 2011-v3 Rack (1U)
ASUS

RS700-E8-RS4 Intel® C612 LGA 2011-v3 Rack (1U)

Model RS700-E8-RS4Part no. 90SV021A-M01LE0EAN 886227887347

43 specifications
  • Weight11.9 kg
  • Motherboard chipsetIntel® C612
  • Number of DIMM slots24
  • Number of storage drives supported4
  • On-board graphics card modelAspeed AST2400
  • Ethernet LANYes
See all specifications

Overview

Weight
11.9 kg
Motherboard chipset
Intel® C612
Number of DIMM slots
24
Number of storage drives supported
4
On-board graphics card model
Aspeed AST2400
Ethernet LAN
Yes
Brand
ASUS
Model
RS700-E8-RS4
Part number
90SV021A-M01LE0
EAN / UPC
886227887347
Also known as
ASUS RS700-E8-RS4 Intel® C612 LGA 2011-v3 Rack (1U)

Specifications

43 specifications in 12 groups

Processor

Motherboard chipsetIntel® C612
Processor socketLGA 2011-v3
Processor manufacturerIntel
Number of processors supported2
Compatible processor seriesIntel® Xeon® E5 Family
Intel Xeon seriesE5-2600

Memory

Number of DIMM slots24
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities4GB, 8GB, 16GB, 32GB, 64GB
Maximum internal memory1.53 TB
Supported RDIMM clock speeds1333,1600,1866,2133 MHz

Storage

Number of storage drives supported4
Hot-swap HDD baysYes
Number of 3.5" bays4
Storage drive sizes supported3.5"
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2400
On-board graphics card memory32 MB

Network

Ethernet LANYes
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
IPMI LAN (RJ-45) portYes
VGA (D-Sub) ports quantity2
Serial ports quantity1
PS/2 ports quantity1

Expansion slots

PCI Express x8 slots2
PCI Express x16 slots2

Features

Optical drive typeDVD-RW
Compatible operating systemsWindows Server 2008 R2 *(Subject to change without any notice) Windows® Server 2012 R2 Windows® Server 2012 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer

Design

Chassis typeRack (1U)

Power

Power supply800 W
Number of redundant power supplies supported2
AC input frequency47 - 63 Hz
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth444 mm
Height44 mm
Weight11.9 kg
Width686 mm
