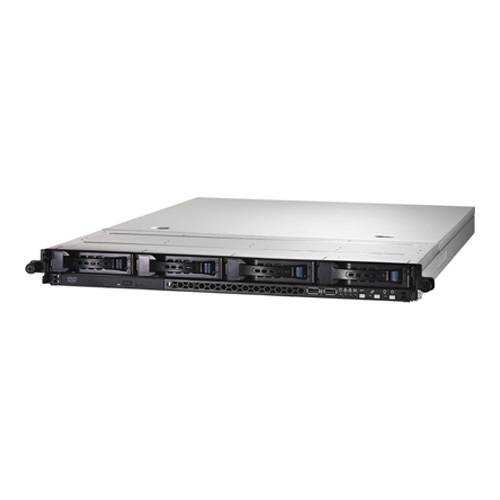

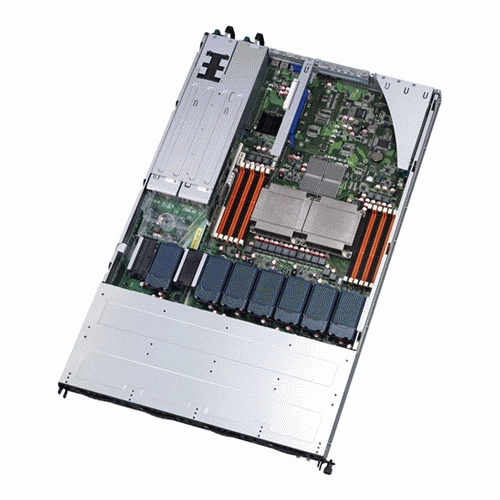

RS700-E6/RS4 Intel® 5520 Socket B (LGA 1366)
Model RS700-E6/RS4Part no. 90S4YA0000C110UEZEAN 4719543683347
30 specifications
- Weight15 kg
- Motherboard chipsetIntel® 5520
- Number of DIMM slots12
- Number of storage drives supported6
- Maximum graphics card memory8 MB
- Ethernet LANYes
Overview
- Weight
- 15 kg
- Motherboard chipset
- Intel® 5520
- Number of DIMM slots
- 12
- Number of storage drives supported
- 6
- Maximum graphics card memory
- 8 MB
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS700-E6/RS4
- Part numbers
- 90S4YA0000C110UEZ, 90S-S4Y001CEZ, RS700-E6/RS4, 90SS4Y001CEZ, RS700-E6-RS4
- EAN / UPC
- 4719543683347, 610839683345, 4719543309162, 4719543668252 +1 more
- Also known as
- ASUS RS700-E6/RS4 Intel® 5520 Socket B (LGA 1366)
Specifications
30 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 5520 |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 12 |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 6 |
| Storage controller | Intel ICH10R |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® 82574L |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008 Enterprise 32/64-bit, Windows Server 2003 R2 Enterprise (32/64 bit), RedHat Enterprise Linux AS5.0 (32/64 bit), SuSE Linux Enterprise Server 10 (32/64 bit) |
Power
| Specification | Value |
|---|---|
| Power supply | 770 W |
| Redundant power supply (RPS) support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 686 mm |
| Height | 43.4 mm |
| Weight | 15 kg |
| Width | 444 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Expansion slots | 1 x PIKE |
