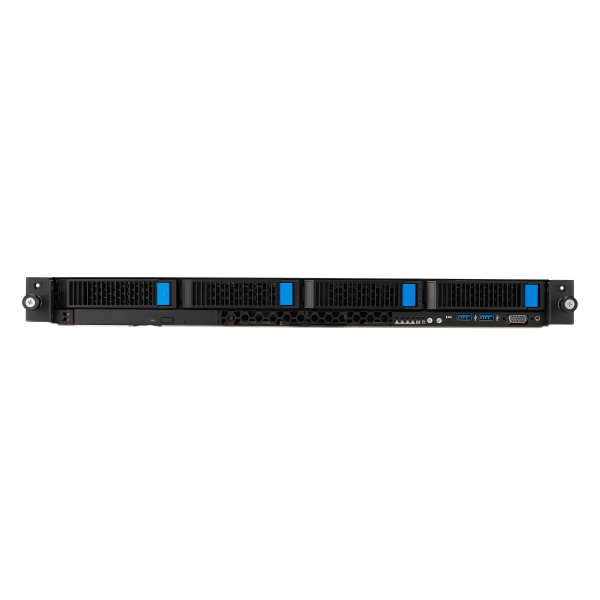

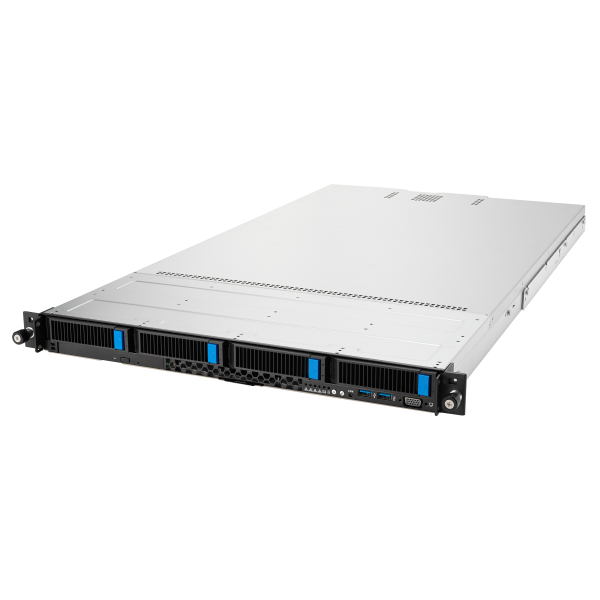

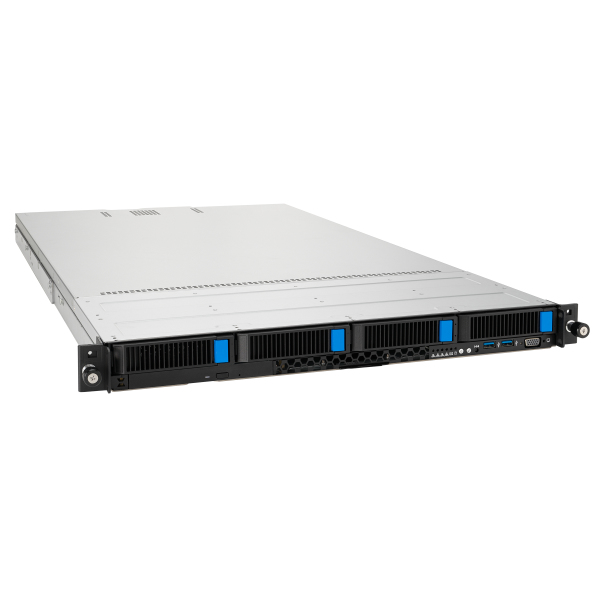

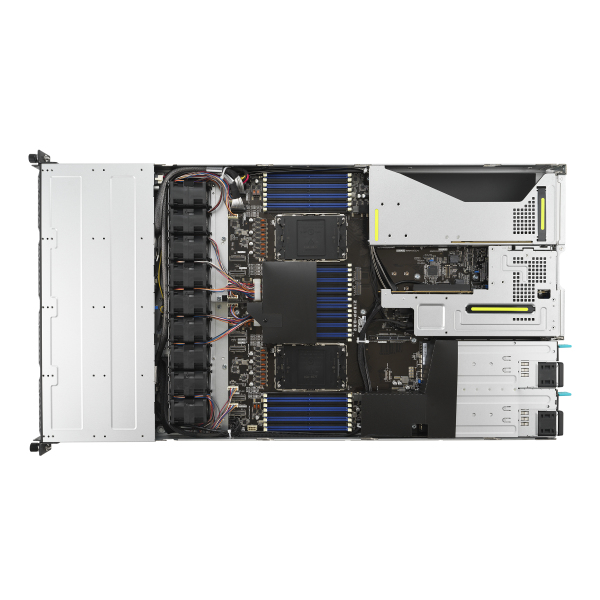

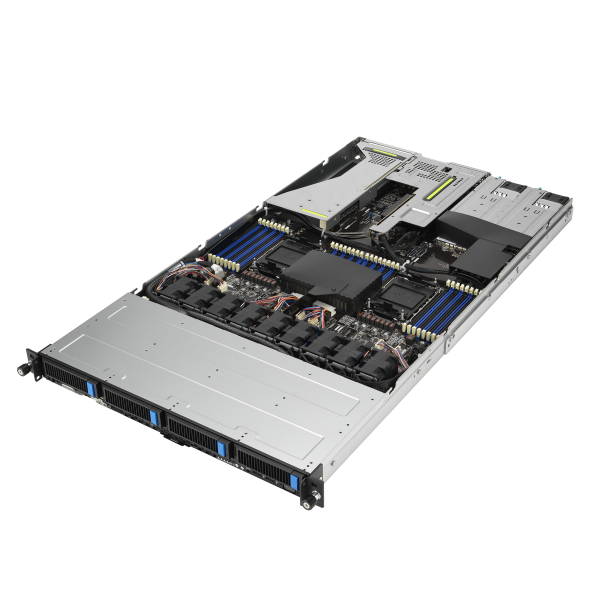

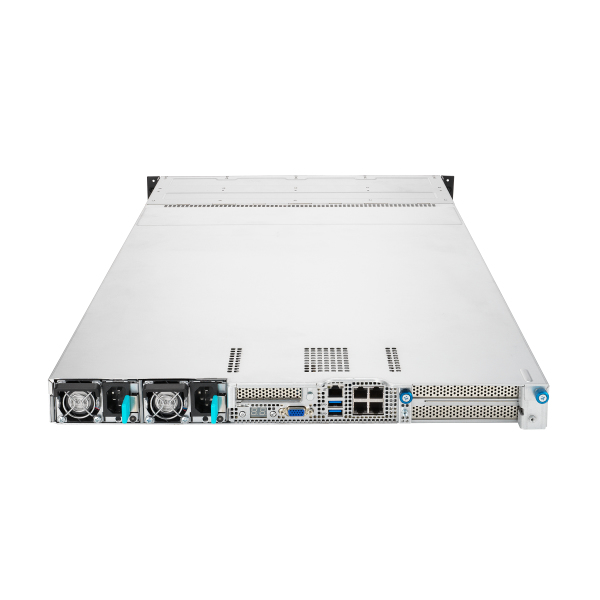

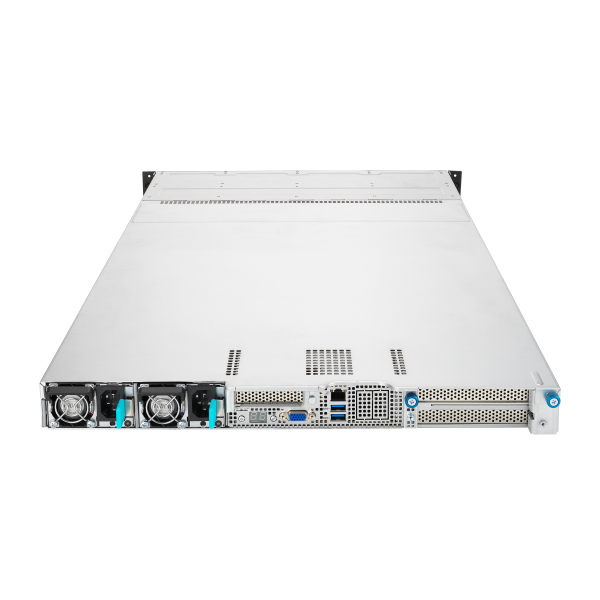

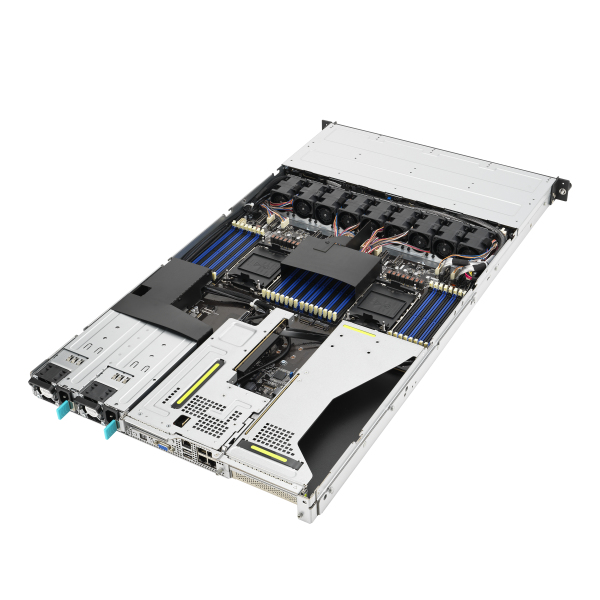

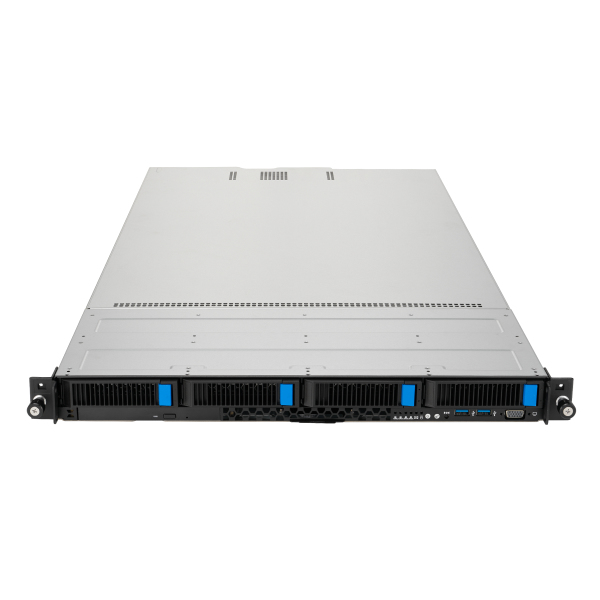

ASUS RS700-E11-RS4U Intel C741 Rack (1U) Black, Steel
ASUS

RS700-E11-RS4U Intel C741 Rack (1U) Black, Steel

Model RS700-E11-RS4UPart no. 90SF01U1-M00130EAN 4711387149188

48 specifications
  • ProcessorIntel® Xeon® Scalable
  • Weight22.6 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported8
See all specifications

Overview

Processor
Intel® Xeon® Scalable
Weight
22.6 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
8
Brand
ASUS
Model
RS700-E11-RS4U
Part numbers
90SF01U1-M00130, 90SF01U1-M00120
EAN / UPC
4711387149188, 4711387103715
Also known as
ASUS RS700-E11-RS4U Intel C741 Rack (1U) Black, Steel

Specifications

48 specifications in 11 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor manufacturerIntel
Processor familyIntel® Xeon® Scalable
Processor generationIntel Xeon Scalable 4th Gen

Memory

Number of DIMM slots32
Supported memory typesDDR5-SDRAM

Storage

Number of storage drives supported8
Hot-swap HDD baysYes
Number of 2.5" bays0
Number of 3.5" bays4
Storage drive sizes supported3.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card modelAspeed AST2600
On-board graphics card memory64 MB
Maximum graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates1000,10000 Mbit/s
LAN controllerIntel® I350-AM4, Intel X710-AT2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports3
VGA (D-Sub) ports quantity2

Expansion slots

PCI Express slots version5.0
PCI Express x8 slots1
PCI Express x16 slots2

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Design

Chassis typeRack (1U)
Product colourBlack, Steel
LED indicatorsPower, Switch
Cooling typeActive
Rack railsYes
Number of fans9 fan(s)
Redundant fans supportYes

Power

Power supply1600 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
80 PLUS certification80 PLUS Titanium

Weight & dimensions

Depth842.5 mm
Height44 mm
Weight22.6 kg
Width439.5 mm
