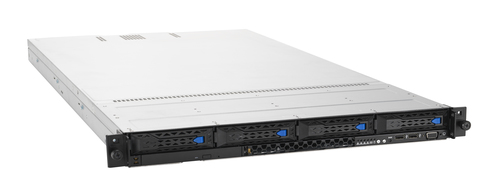

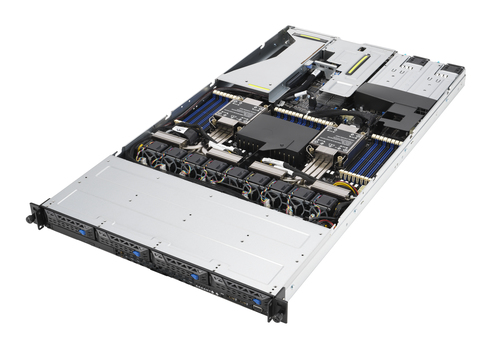

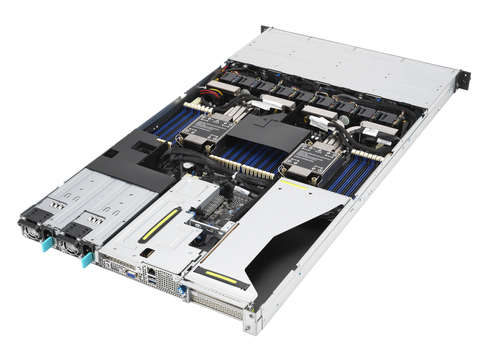

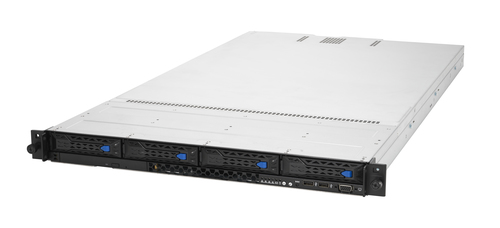

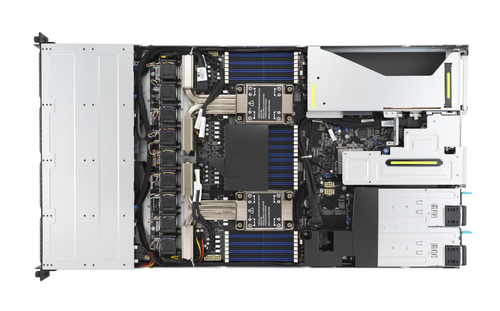

RS700-E10-RS4U Intel C621A LGA 4189 Rack (1U) Silver
Model RS700-E10-RS4UPart no. 90SF0153-M002H0EAN 4711081612582
40 specifications
- ProcessorIntel® Xeon® Scalable
- Weight13.7 kg
- ColourSilver
- Built-in processorNo
- Number of DIMM slots32
- Hot-swap HDD baysYes
Overview
- Processor
- Intel® Xeon® Scalable
- Weight
- 13.7 kg
- Colour
- Silver
- Built-in processor
- No
- Number of DIMM slots
- 32
- Hot-swap HDD bays
- Yes
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS700-E10-RS4U
- Part number
- 90SF0153-M002H0
- EAN / UPC
- 4711081612582
- Also known as
- ASUS RS700-E10-RS4U Intel C621A LGA 4189 Rack (1U) Silver
Specifications
40 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C621A |
| Processor socket | LGA 4189 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Scalable |
| Number of processors supported | 2 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 32 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 8GB, 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory | 6 TB |
| Supported RDIMM clock speeds | 2933,3200 MHz |
Storage
| Specification | Value |
|---|---|
| Hot-swap HDD bays | Yes |
| Number of 3.5" bays | 4 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0 |
| Number of M.2 (M) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Silver |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 800 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 842.5 mm |
| Height | 44 mm |
| Weight | 13.7 kg |
| Width | 449 mm |
