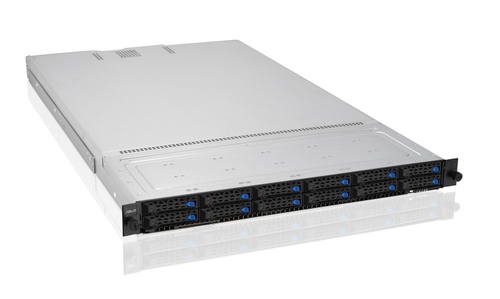

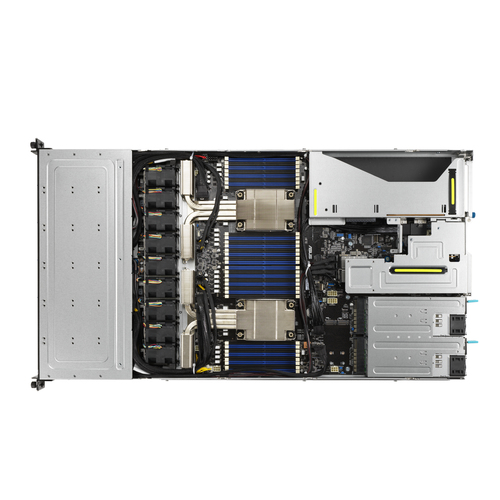

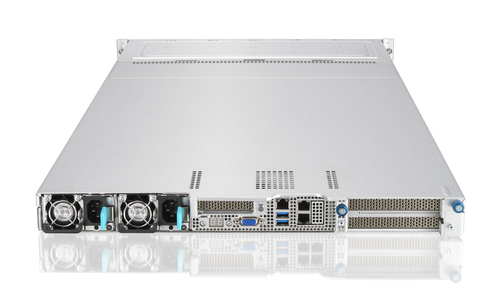

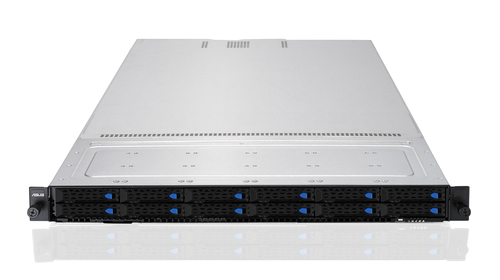

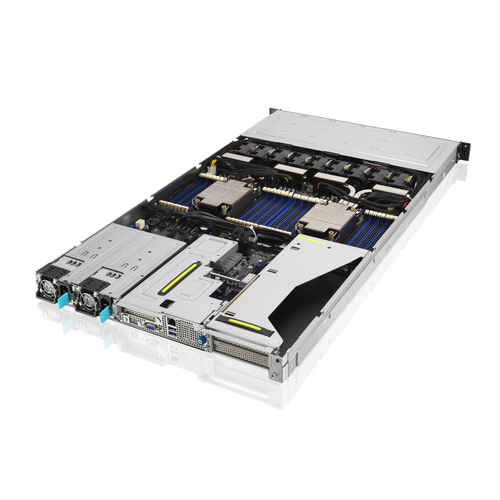

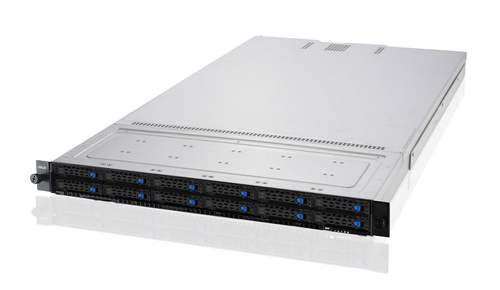

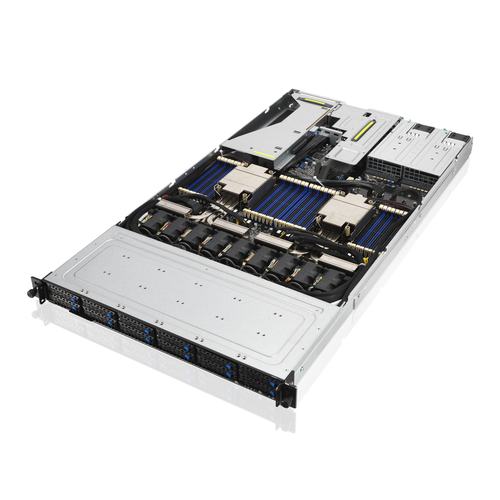

ASUS RS700-E10-RS12U/10G/4NVME Intel C621A LGA 4189 Rack (1U) Black
ASUS

RS700-E10-RS12U/10G/4NVME Intel C621A LGA 4189 Rack (1U) Black

Model RS700-E10-RS12U/10G/4NVMEPart no. 90SF0153-M00320EAN 4711081361671

52 specifications
  • ProcessorIntel® Xeon® Scalable
  • Weight13.7 kg
  • ColourBlack
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported14
See all specifications

Overview

Processor
Intel® Xeon® Scalable
Weight
13.7 kg
Colour
Black
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
14
Brand
ASUS
Model
RS700-E10-RS12U/10G/4NVME
Part number
90SF0153-M00320
EAN / UPC
4711081361671
Also known as
ASUS RS700-E10-RS12U/10G/4NVME Intel C621A LGA 4189 Rack (1U) Black

Specifications

52 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C621A
Processor socketLGA 4189
Processor manufacturerIntel
Processor familyIntel® Xeon® Scalable
Number of processors supported2

Memory

Number of DIMM slots32
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities8GB, 16GB, 32GB, 64GB, 128GB, 256MB
Maximum internal memory6 TB
Supported RDIMM clock speeds2933,3200 MHz

Storage

Number of storage drives supported14
Hot-swap HDD baysYes
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
RAID levels0, 1, 5, 10, 50

Graphics

On-board graphics card modelAspeed AST2600
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
LAN controllerIntel X710-AT2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
IPMI LAN (RJ-45) portYes
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x8 slots1
PCI Express x16 slots3
Number of M.2 (M) slots2

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
Product colourBlack
LED indicatorsYes
On/off switchYes
Reset buttonYes

Power

Power supply1600 W
Number of main power supplies1
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported1
Number of redundant power supplies installed1
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current13 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth842.5 mm
Height44 mm
Weight13.7 kg
Width439.5 mm
