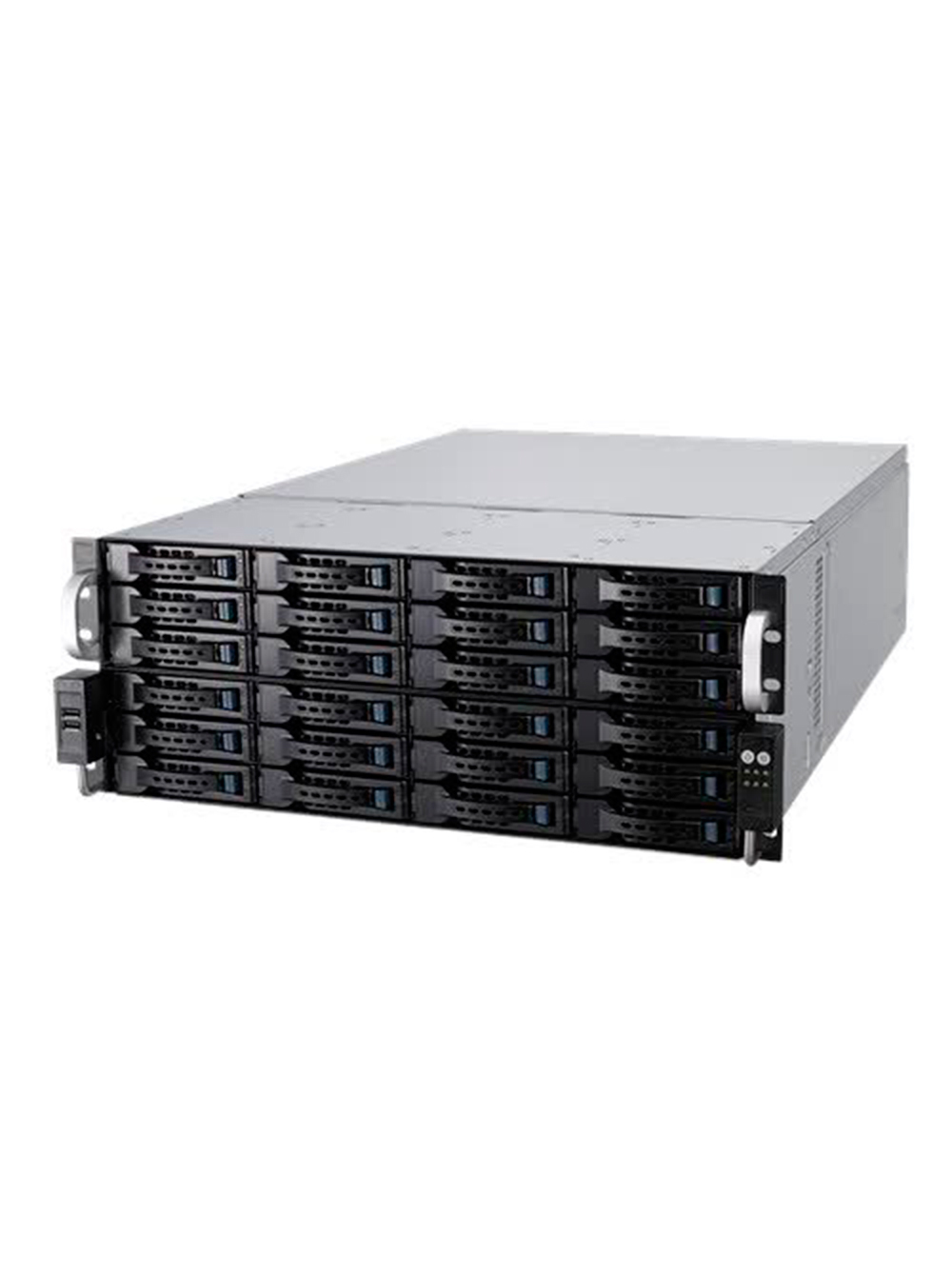

RS540-E9-RS36-E Intel® C621 LGA 3647 (Socket P) Rack (4U)
Model RS540-E9-RS36-EPart no. 90SF00R1-M00040EAN 4718017216135
33 specifications
- Weight27.7 kg
- Built-in processorYes
- Number of DIMM slots16
- Number of storage drives supported36
- On-board graphics card modelAspeed AST2500
- USB 2.0 ports quantity2
Overview
- Weight
- 27.7 kg
- Built-in processor
- Yes
- Number of DIMM slots
- 16
- Number of storage drives supported
- 36
- On-board graphics card model
- Aspeed AST2500
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS540-E9-RS36-E
- Part number
- 90SF00R1-M00040
- EAN / UPC
- 4718017216135
- Also known as
- ASUS RS540-E9-RS36-E Intel® C621 LGA 3647 (Socket P) Rack (4U)
Specifications
33 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Motherboard chipset | Intel® C621 |
| Processor socket | LGA 3647 (Socket P) |
| Number of processors supported | 2 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported DIMM module capacities | 4GB, 8GB, 16GB, 32GB, 64GB, 128MB |
| Supported RDIMM clock speeds | 2666,2933 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 36 |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive interfaces | M.2, Serial ATA |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 3.x) slots | 2 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
Power
| Specification | Value |
|---|---|
| Power supply | 800 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 447 mm |
| Height | 176 mm |
| Weight | 27.7 kg |
| Width | 615 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 36.1 kg |
