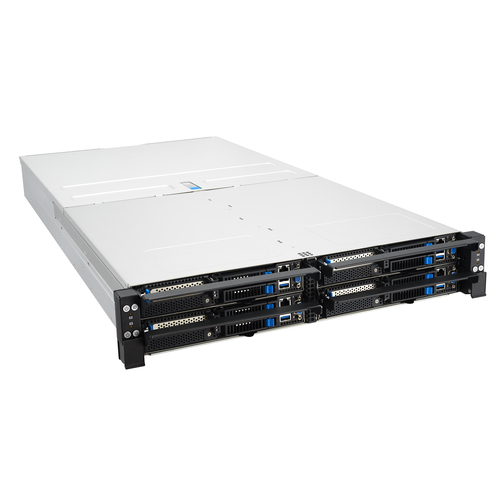

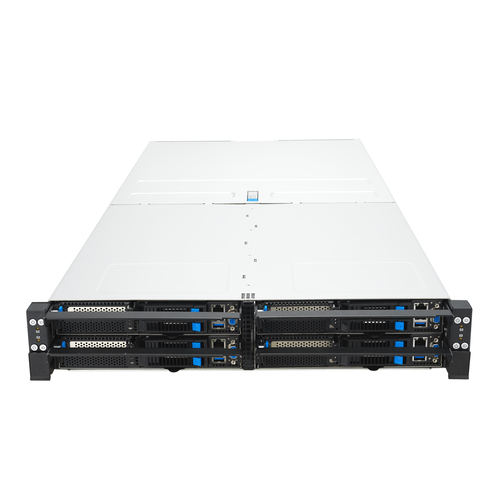

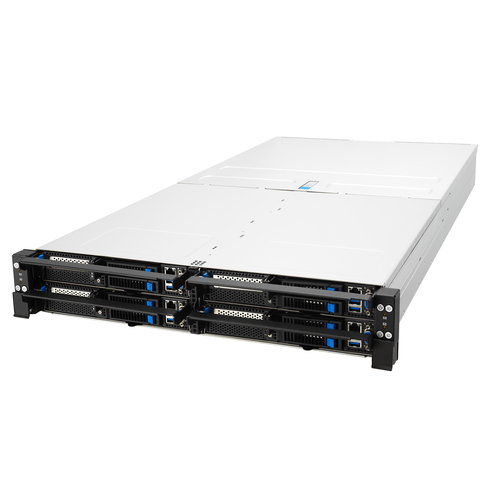

RS520QA-E13-RS8U/3200W Socket SP5 Rack (2U) Silver
Model RS520QA-E13-RS8U/3200WPart no. 90SF04A1-M00050EAN 4711636158305
35 specifications
- Weight23.7 kg
- ColourSilver
- Built-in processorNo
- Number of DIMM slots20
- Number of storage drives supported4
- On-board graphics card modelAspeed AST2600
Overview
- Weight
- 23.7 kg
- Colour
- Silver
- Built-in processor
- No
- Number of DIMM slots
- 20
- Number of storage drives supported
- 4
- On-board graphics card model
- Aspeed AST2600
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS520QA-E13-RS8U/3200W
- Part number
- 90SF04A1-M00050
- EAN / UPC
- 4711636158305
- Also known as
- ASUS RS520QA-E13-RS8U/3200W Socket SP5 Rack (2U) Silver
Specifications
35 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 20 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 32GB, 64GB, 128GB, 96GB |
| Maximum internal memory | 2.56 TB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 2 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, Serial ATA, Serial Attached SCSI (SAS) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Silver |
| LED indicators | Power, LAN, HDD |
| Cooling type | Active |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 3200 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 900 mm |
| Height | 87.2 mm |
| Weight | 23.7 kg |
| Width | 446 mm |
