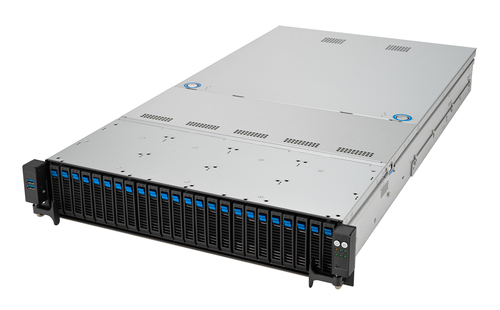

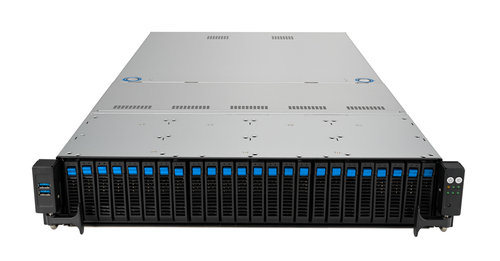

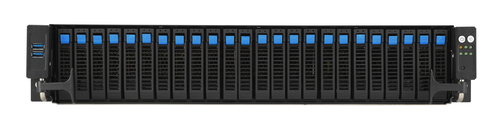

ASUS RS520A-E12-RS24U Socket SP5 Rack (2U) Grey
ASUS

RS520A-E12-RS24U Socket SP5 Rack (2U) Grey

Model RS520A-E12-RS24UPart no. 90SF02G1-M000E0EAN 4711387381847

43 specifications
  • ProcessorAMD EPYC
  • Weight19.1 kg
  • ColourGrey
  • Processor socketSocket SP5
  • Number of DIMM slots24
  • Number of storage drives supported28
See all specifications

Overview

Processor
AMD EPYC
Weight
19.1 kg
Colour
Grey
Processor socket
Socket SP5
Number of DIMM slots
24
Number of storage drives supported
28
Brand
ASUS
Model
RS520A-E12-RS24U
Part numbers
90SF02G1-M000E0, 90SF02G1-M000D0, 90SF02G1-M00360
EAN / UPC
4711387381847, 4711387009642, 4711387009932
Also known as
ASUS RS520A-E12-RS24U Socket SP5 Rack (2U) Grey

Specifications

43 specifications in 13 groups

Processor

Processor socketSocket SP5
Processor manufacturerAMD
Processor familyAMD EPYC
Number of processors supported1
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots24
Supported memory typesDDR5-SDRAM
Supported DIMM module capacities128GB, 64GB, 32GB, 16GB, 256GB
Maximum internal memory6 TB
Supported RDIMM clock speeds4400,4800,4000,3600 MHz

Storage

Number of storage drives supported28
Hot-swap HDD baysYes
Number of 2.5" bays26
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
IPMI LAN (RJ-45) portYes
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version5.0

Technical details

Compliance certificatesCE, CB, RCM, Federal Communications Commission (FCC)

Design

Chassis typeRack (2U)
Product colourGrey
LED indicatorsYes
On/off switchYes
Reset buttonYes

Power

Power supply1600 W
Redundant power supply (RPS) supportYes

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth840 mm
Height88.1 mm
Weight19.1 kg
Width449 mm

Packaging data

Package weight26.6 kg
