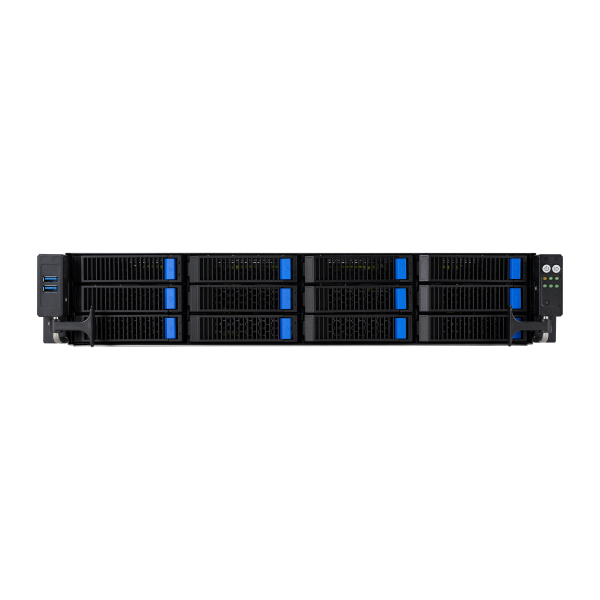

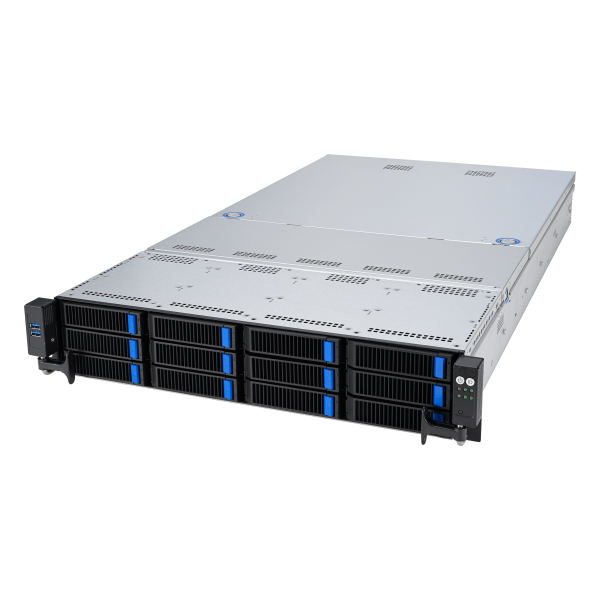

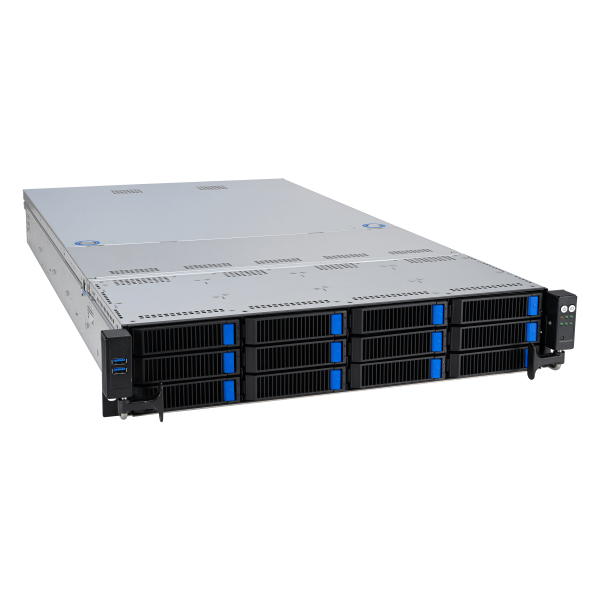

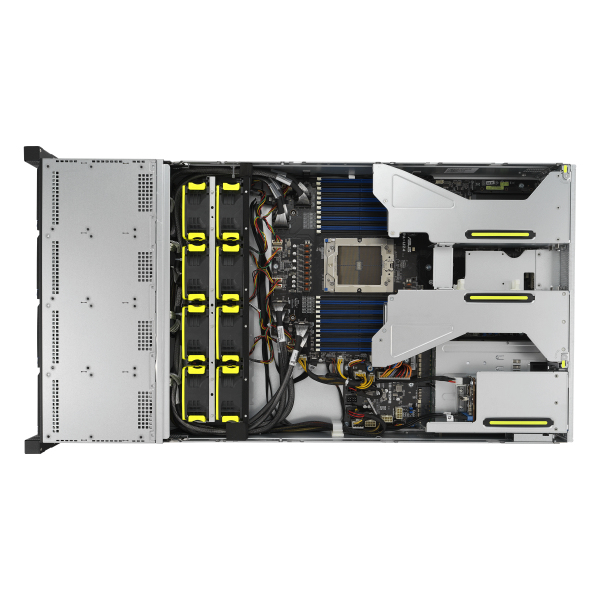

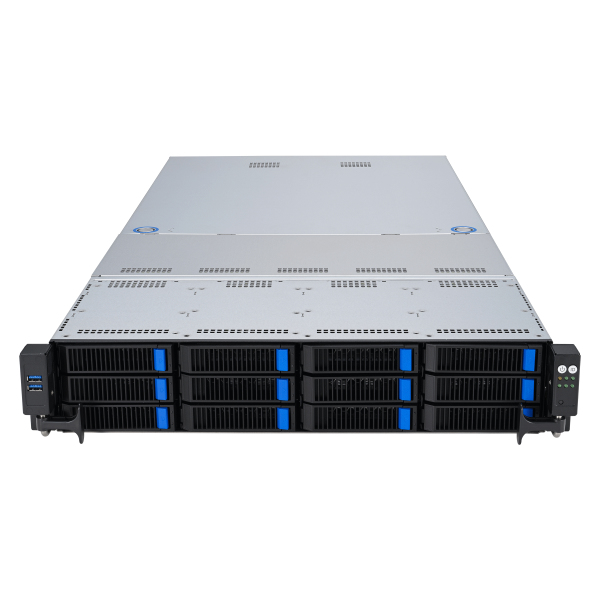

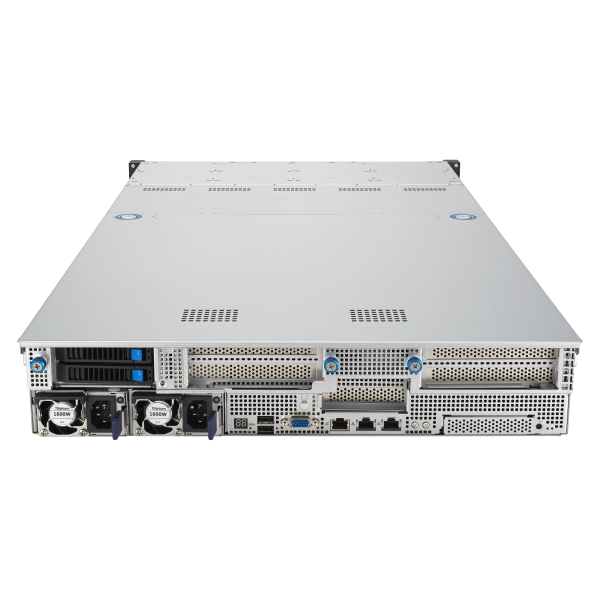

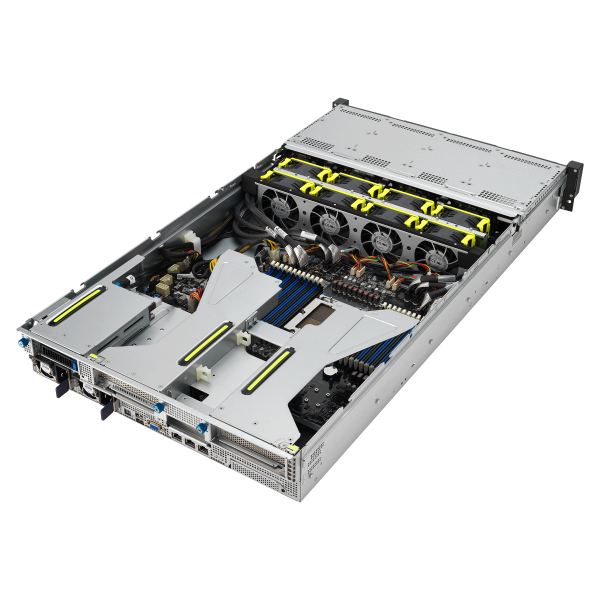

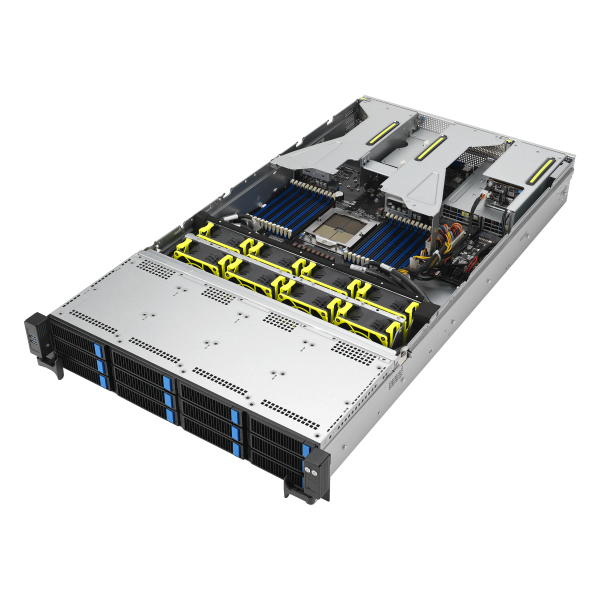

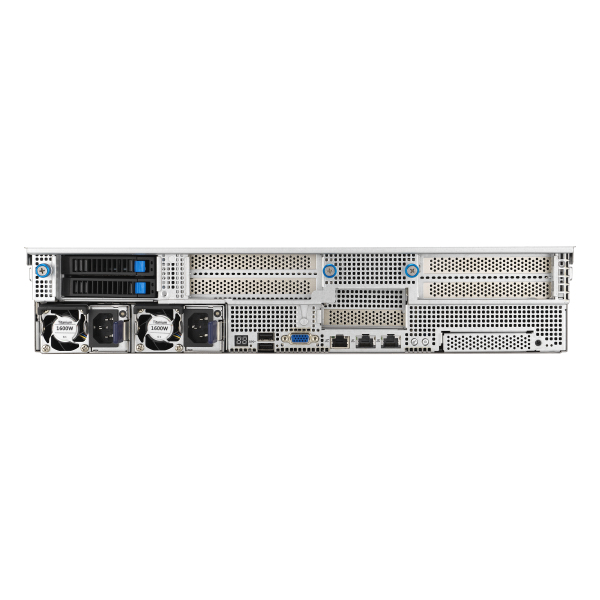

ASUS RS520A-E12-RS12U Socket SP5 Rack (2U) Black, Steel
ASUS

RS520A-E12-RS12U Socket SP5 Rack (2U) Black, Steel

Model RS520A-E12-RS12UPart no. 90SF02G1-M000C0EAN 4711387373781

46 specifications
  • ProcessorAMD
  • Weight17.9 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported14
See all specifications

Overview

Processor
AMD
Weight
17.9 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
14
Brand
ASUS
Model
RS520A-E12-RS12U
Part numbers
90SF02G1-M000C0, 90SF02G1-M000P0, 90SF02G1-M002Y0
EAN / UPC
4711387373781, 4711387009475, 4711387022986
Also known as
ASUS RS520A-E12-RS12U Socket SP5 Rack (2U) Black, Steel

Specifications

46 specifications in 12 groups

Processor

Built-in processorNo
Processor socketSocket SP5
Processor manufacturerAMD
Processor familyAMD
Compatible processor seriesAMD EPYC
AMD Opteron series9000

Memory

Number of DIMM slots24
Supported memory typesDDR5-SDRAM
Maximum internal memory6 TB

Storage

Number of storage drives supported14
Hot-swap HDD baysYes
Number of 2.5" bays2
Number of 3.5" bays12
Storage drive sizes supported2.5,3.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, Serial ATA, Serial Attached SCSI (SAS)

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports3
IPMI LAN (RJ-45) portYes
VGA (D-Sub) ports quantity2

Expansion slots

PCI Express slots version5.0
PCI Express x8 slots1
PCI Express x16 slots2

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsYes

Power

Power supply1600 W
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported2
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)20 - 90%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth840 mm
Height88.1 mm
Weight17.9 kg
Width449 mm

Packaging data

Bundled softwareASUS Control Center ASUS ASMB11-iKVM
Package weight25.1 kg
