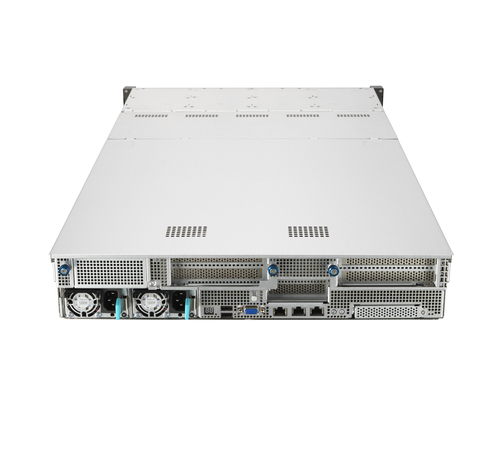

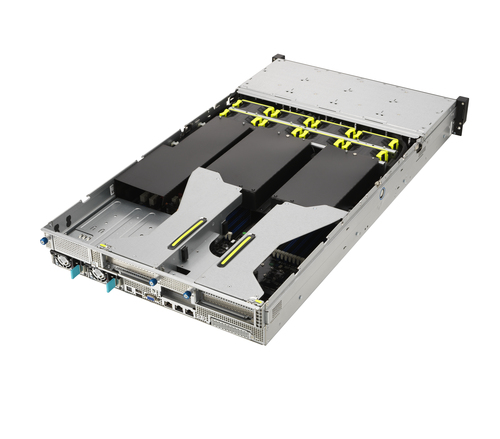

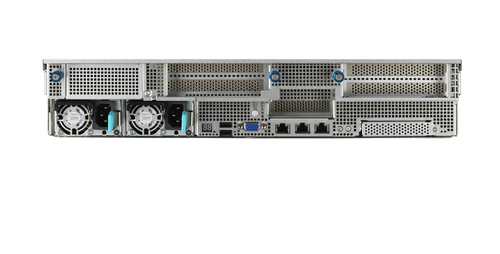

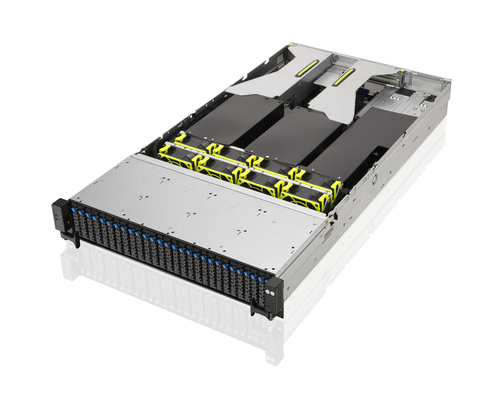

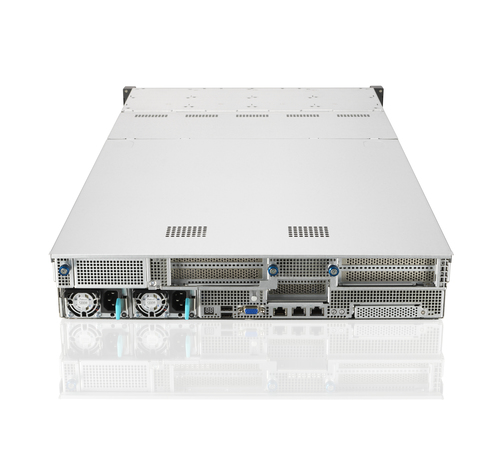

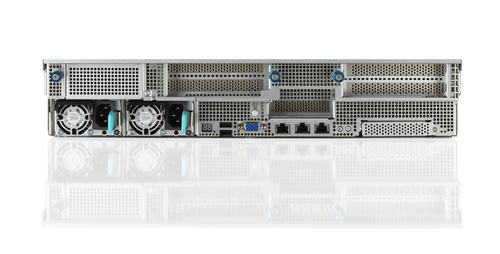

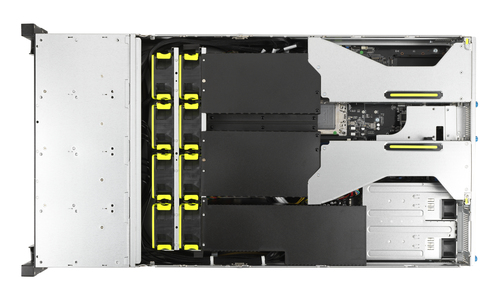

ASUS RS520A-E11-RS24U Socket SP3 Rack (2U) Black
ASUS

RS520A-E11-RS24U Socket SP3 Rack (2U) Black

Model RS520A-E11-RS24UPart no. 90SF01Q2-M00260EAN 4711081684503

52 specifications
  • ProcessorAMD
  • Weight19.1 kg
  • ColourBlack
  • Built-in processorNo
  • Number of DIMM slots16
  • Hot-swap HDD baysYes
See all specifications

Overview

Processor
AMD
Weight
19.1 kg
Colour
Black
Built-in processor
No
Number of DIMM slots
16
Hot-swap HDD bays
Yes
Brand
ASUS
Model
RS520A-E11-RS24U
Part numbers
90SF01Q2-M00260, 90SF01Q2-M003H0
EAN / UPC
4711081684503, 4711081830061
Also known as
ASUS RS520A-E11-RS24U Socket SP3 Rack (2U) Black

Specifications

52 specifications in 13 groups

Processor

Built-in processorNo
Processor socketSocket SP3
Processor manufacturerAMD
Processor familyAMD
Number of processors supported1
Compatible processor seriesAMD EPYC 7002, AMD EPYC 7003

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities16GB, 32GB, 64GB, 128GB
Maximum internal memory4 TB
Supported RDIMM clock speeds2933,3200 MHz

Storage

Hot-swap HDD baysYes
Number of 2.5" bays24
Storage drive sizes supported2.5,M.2
SSD form factorM.2

Graphics

On-board graphics card modelAspeed AST2600
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
IPMI LAN (RJ-45) portYes
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x8 slots3
PCI Express x16 slots2
Number of M.2 (M) slots2

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
Product colourBlack
LED indicatorsYes
On/off switchYes
Reset buttonYes

Power

Power supply1600 W
Number of main power supplies1
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported1
Number of redundant power supplies installed1
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current10 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth840 mm
Height88.1 mm
Weight19.1 kg
Width449 mm

Packaging data

Package weight28.7 kg
