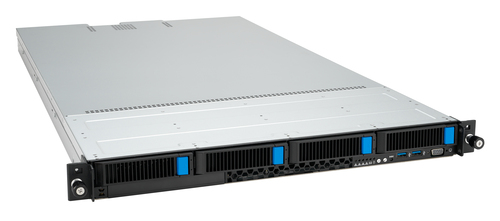

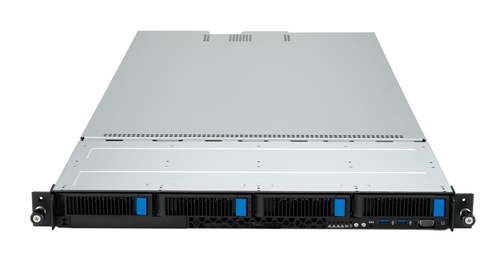

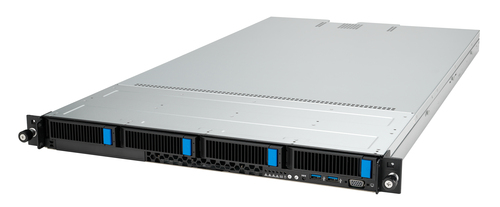

RS500A-E12-RS4U Socket SP5 Rack (1U) Grey
Model RS500A-E12-RS4UPart no. 90SF02J1-M000N0EAN 4711387020838
42 specifications
- ProcessorAMD EPYC
- Weight13.2 kg
- ColourGrey
- Processor socketSocket SP5
- Number of DIMM slots24
- Number of storage drives supported6
Overview
- Processor
- AMD EPYC
- Weight
- 13.2 kg
- Colour
- Grey
- Processor socket
- Socket SP5
- Number of DIMM slots
- 24
- Number of storage drives supported
- 6
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS500A-E12-RS4U
- Part numbers
- 90SF02J1-M000N0, 90SF02J1-M000R0
- EAN / UPC
- 4711387020838, 4711387030448
- Also known as
- ASUS RS500A-E12-RS4U Socket SP5 Rack (1U) Grey
Specifications
42 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Number of processors supported | 1 |
| Compatible processor series | AMD EPYC 9004 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 128GB, 64GB, 32GB, 16GB, 256GB |
| Maximum internal memory | 6 TB |
| Supported RDIMM clock speeds | 4400,4800,4000,3600 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 6 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 4 |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 5.0 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CE, CB, RCM, Federal Communications Commission (FCC) |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Grey |
| LED indicators | Yes |
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 1600 W |
| Redundant power supply (RPS) support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 842.5 mm |
| Height | 43.9 mm |
| Weight | 13.2 kg |
| Width | 449 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 18.1 kg |
