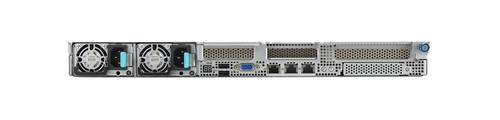

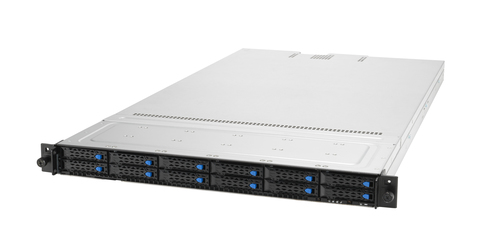

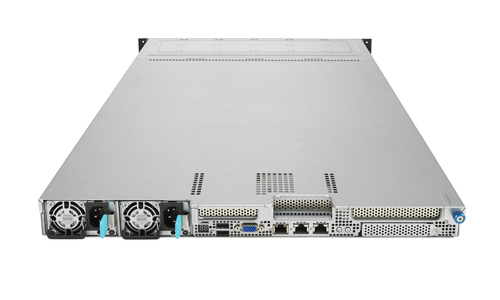

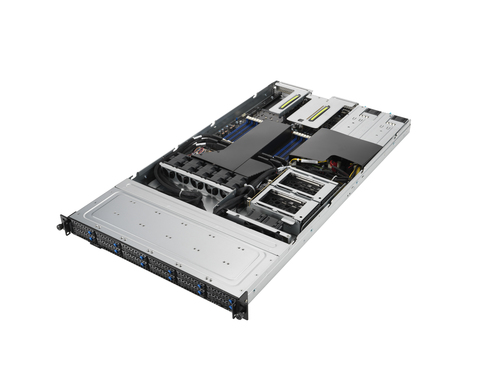

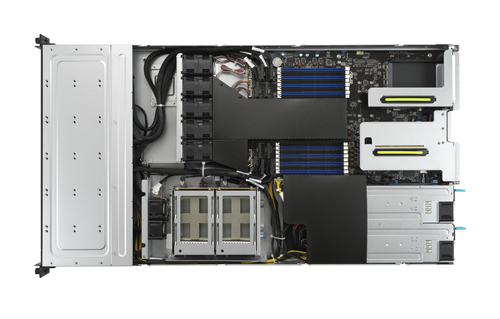

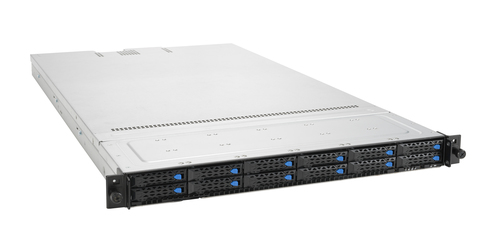

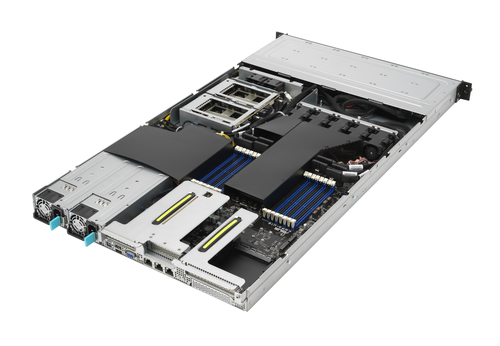

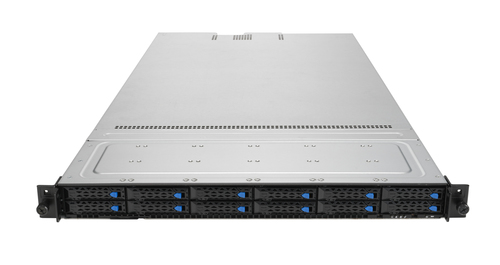

ASUS RS500A-E11-RS12U/12NVME(800W) Socket SP3 Rack (1U) Black
ASUS

RS500A-E11-RS12U/12NVME(800W) Socket SP3 Rack (1U) Black

Model RS500A-E11-RS12U/12NVME(800W)Part no. 90SF01R1-M00220EAN 4711081324058

52 specifications
  • ProcessorAMD
  • Weight17 kg
  • ColourBlack
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported14
See all specifications

Overview

Processor
AMD
Weight
17 kg
Colour
Black
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
14
Brand
ASUS
Model
RS500A-E11-RS12U/12NVME(800W)
Part number
90SF01R1-M00220
EAN / UPC
4711081324058
Also known as
ASUS RS500A-E11-RS12U/12NVME(800W) Socket SP3 Rack (1U) Black

Specifications

52 specifications in 12 groups

Processor

Built-in processorNo
Processor socketSocket SP3
Processor manufacturerAMD
Processor familyAMD
Number of processors supported1
Compatible processor seriesAMD EPYC

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities16GB, 32GB, 64GB, 128GB
Maximum internal memory4 TB
Supported RDIMM clock speeds2933,3200 MHz

Storage

Number of storage drives supported14
Hot-swap HDD baysYes
Number of 2.5" bays12
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
IPMI LAN (RJ-45) portYes
VGA (D-Sub) ports quantity1
COM ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x8 slots1
PCI Express x16 slots2
Number of M.2 (M) slots2

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
Product colourBlack
LED indicatorsYes
On/off switchYes
Reset buttonYes

Power

Power supply800 W
Number of main power supplies1
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported1
Number of redundant power supplies installed1
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current10 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth842.5 mm
Height44 mm
Weight17 kg
Width449 mm

Packaging data

Package weight22 kg
